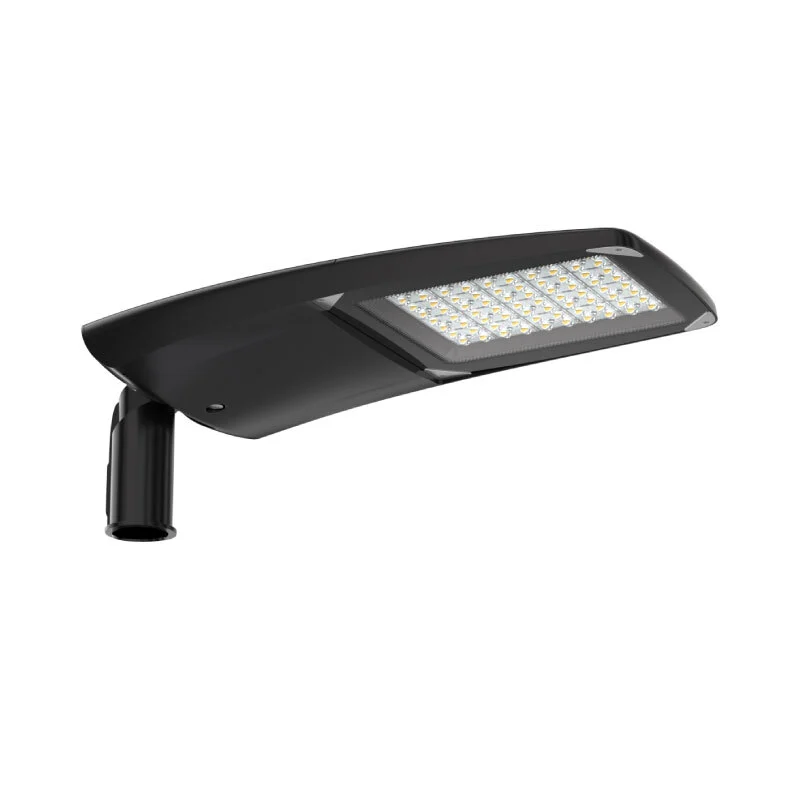

BEST QUALITY CHINA MANUFACTURERS LED STREET LIGHT CHZ-ST42

MODEL:

CHZ-ST42

LED CHIPS:

LUMILEDS 5050

COLOR TEMPERATURE:

3000K / 4000K / 5000K / 5700K / 6500K

DRIVERS:

SOSEN / INVENTRONICS

BEAM ANGLE:

TYPE II TYPE III TYPE V

REGULATION:

0-10V / Timer / DALI

VOLTAGE:

100 - 277V / 200~240V

POWER FACTOR:

> 0.95

ELECTRICAL CATEGORY:

Class I / Class II

MATERIALS:

AL housing / AL heatsink / PC lens

PROTECTION(IP / IK):

IP66 - IK08

INSTALLATION:

Ø 60 mm

LIFETIME / WARRANTY:

60,000 hours / 5 years

WORKING ENVIRONMENT:

- 40ºC ~ + 55ºC / 10%-90%RH

CERTIFICATIONS:

CE CB ENEC ROHS ISO9001 ISO14001 ISO50001 ISO45001

Inquiry

Write a Review

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Protection Class	Lumen(LM/W)	Size(L×W×H)mm
ST42-40WS	40	SMD5050	36	2S18P	Class I / II	>160	587×222×127
ST42-50WS	50	SMD5050	36	2S18P	Class I / II	>160	587×222×127
ST42-60WS	60	SMD5050	36	2S18P	Class I / II	>160	587×222×127
ST42-80WS	80	SMD5050	36	2S18P	Class I / II	>160	587×222×127
ST42-80WM	80	SMD5050	72	2S36P	Class I / II	>160	708×300×127
ST42-100WM	100	SMD5050	72	2S36P	Class I / II	>160	708×300×127
ST42-120WM	120	SMD5050	72	2S36P	Class I / II	>160	708×300×127
ST42-150WM	150	SMD5050	72	2S36P	Class I / II	>160	708×300×127
ST42-180WL	180	SMD5050	120	2S60P	Class I / II	>160	810×330×130
ST42-200WL	200	SMD5050	120	2S60P	Class I / II	>160	810×330×130

BEST QUALITY CHINA MANUFACTURERS LED STREET LIGHT CHZ-ST42 8

Product Features

Special slim design, which is ideal for new streets and for renovating existing installations,this affordable range of lighting solutions combines clean, high-quality light with significant energy savings and reduced maintenance.

Reliable design with die-cast aluminum housing, good heat-ventilation.
Using SMD5050 chips, efficacy is 150lm/W or more, widely used to replace traditional HID lamps from 70W~400W, by half power.
Fully lP66 Ingress and lK08 mechanical impacts protection, defaulted 6KV. Other 10KV or 20KV available on request.
Operating temperature range from -30°C to 45°℃ and humidity range from 10%~90%， suitable for most of parts of this world.
Normal or 0-10V dimming function, 3PIN/5PIN Nema are available on request.
