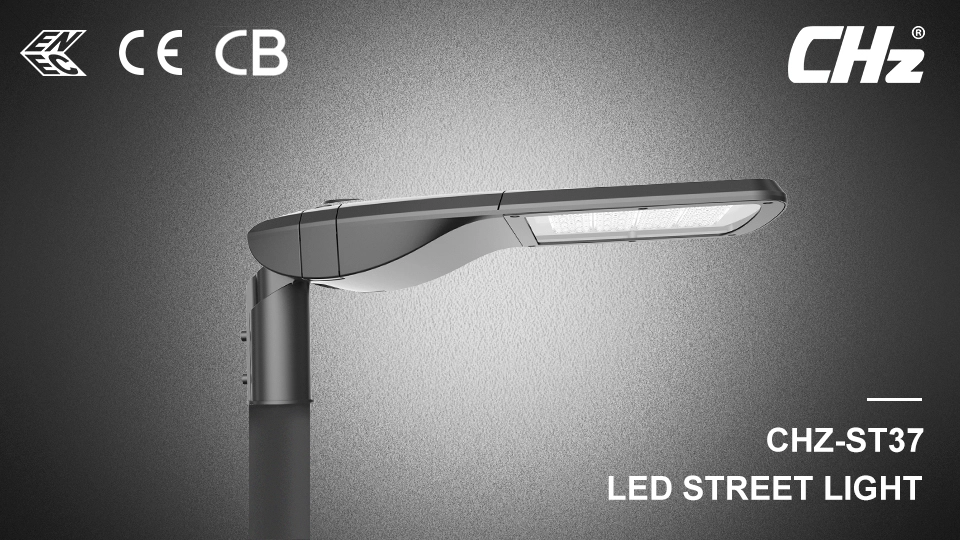

Street lighting products high brightness 145 lm/w led street lamps CHZ-ST37

MODEL:

CHZ-ST37

COLOR TEMPERATURE:

40W 60W 80W 100W 120W 150W 180W 200W 240W

DRIVERS:

>130LM/W@SDM3030, >160LM/W@SDM5050

REGULATION:

TYPE Ⅰ/ TYPE Ⅱ/ TYPE Ⅲ/ TYPE Ⅳ/ TYPE Ⅴ

ELECTRICAL CATEGORY:

AC 100-277V

SOLAR PANEL:

15-20DAYS

CONTROL METHOD:

T/T, L/C,Western Union

CERTIFICATIONS:

CE/ROHS/IP66/IK09/ISO9001/ISO14001/

BATTERY:

SHANGHAI PORT

Inquiry

Write a Review

Parameters

Street lighting products high brightness 145 lm/w led street lamps CHZ-ST37 10

Paramet

Product number	ST37-40WS	ST37-60WS	ST37-80WS	ST37-100WM	ST37-120WM	ST37-150WM	ST37-180WL	ST37-200WL	ST37-240WL
Rated power	40W	60W	80W	100W	120W	150W	180W	200W	240W
Lamp bead type	SMD 3030 or SMD5050
Light effect	>130LM/W@SMD3030, >160LM/W@SMD5050
Color temperature	2700K3000K/4000K/5000K/5700K/6500K, Optional
Beam angle	TYPE Ⅰ/ TYPE Ⅱ/ TYPE Ⅲ/ TYPE Ⅳ/ TYPE Ⅴ
Color rendering	CRI>70
Operating Voltage	100-277V
Power factor PF	>0.95
Drive type	MW, INVENTRONICS or others, according to customer needs‍
Dimming method	Conventional /0-10V /DALI dimming, optional; optional light control
Lamp body material	Die-cast aluminum lamp body+PC lens+tempered glass+304 stainless steel screws
Product Size	580×240×140mm			740×344×145mm			580×240×140mm
Installation pipe diameter	Φ60mm
Protection level	IP66/IK08
Lightning protection level	10KV or 20KV‍
Operating temperature	-30℃~+60℃
Working humidity	10%~90%
Life/Warranty	50,000hrs/5 Years

Street lighting products high brightness 145 lm/w led street lamps CHZ-ST37 11

Product Features

1. The overall design is novel, exquisite in appearance, generous and elegant;

2. Die-cast aluminum material, hot-dip galvanized and plastic sprayed, good anti-corrosion performance;

3. Exquisite structure waterproof design, protection level up to IP66;

4. The light controller can be installed to facilitate light control and other intelligent control;

5. The special design of the luminaire cavity saves space and reduces material costs;

6. With movable handle, the installation angle can be adjusted from 0-90°; the lamp housing can be opened manually, and the power will be automatically cut off, which is convenient for maintenance;

7. Using LUMILEDS SMD3030 or SMD5050 light source, and high-performance constant current drive, the overall performance is stable, high luminous efficiency, low luminous decay and long service life.
