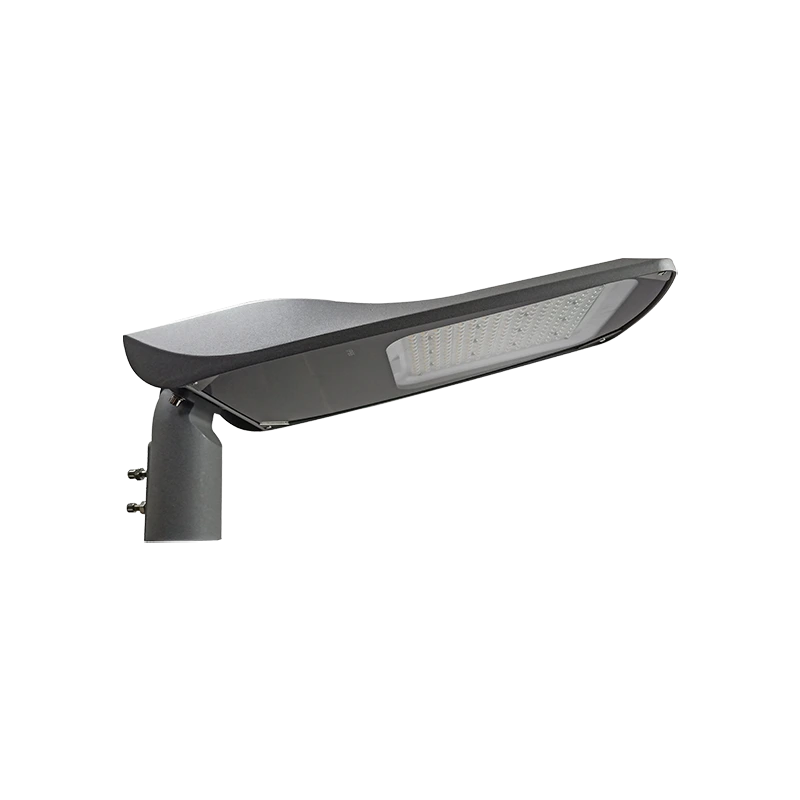

Street led lighting fixtures CHZ-ST35 useful road lighting
Parameters
| Model No. | Power(W) | Chips | Chips Qty | Chips S/P | Protection Class | Lumen(LM/W) | Size(L×W×H)mm |
| ST35-40WS | 40 | 5050 | 24 | 12P2S | Class I | >140 | 561×214×88 |
| ST35-60WS | 60 | 5050 | 24 | 12P2S | Class I | >140 | 561×214×88 |
| ST35-80WM | 80 | 5050 | 48 | 24P2S | Class I | >140 | 679×281×90 |
| ST35-100WM | 100 | 5050 | 48 | 24P2S | Class I | >140 | 679×281×90 |
| ST35-120WM | 120 | 5050 | 48 | 24P2S | Class I | >140 | 679×281×90 |
| ST35-150WM | 150 | 5050 | 48 | 24P2S | Class I | >140 | 679×281×90 |
| ST35-180WL | 180 | 5050 | 80 | 40P2S | Class I | >140 | 714×320×90 |
| ST35-200WL | 200 | 5050 | 80 | 40P2S | Class I | >140 | 714×320×90 |
| ST35-40WS | 40 | 5050 | 96 | 12P8S | Class II | >160 | 561×214×88 |
| ST35-50WS | 50 | 5050 | 96 | 8P12S | Class II | >160 | 561×214×88 |
| ST35-60WS | 60 | 5050 | 96 | 8P12S | Class II | >160 | 561×214×88 |
| ST35-70WM | 70 | 5050 | 144 | 12P12S | Class II | >160 | 679×281×90 |
| ST35-80WM | 80 | 5050 | 144 | 12P12S | Class II | >160 | 679×281×90 |
| ST35-100WM | 100 | 5050 | 144 | 12P12S | Class II | >160 | 679×281×90 |
| ST35-120WM | 120 | 5050 | 144 | 12P12S | Class II | >160 | 679×281×90 |
| ST35-150WM | 150 | 5050 | 144 | 12P12S | Class II | >160 | 679×281×90 |
| ST35-180WL | 180 | 5050 | 80 | 40P2S | Class II | >160 | 714×320×90 |
| ST35-200WL | 200 | 5050 | 80 | 40P2S | Class II | >160 | 714×320×90 |
| ST35-40WS | 40 | 5050 | 24 | 12P2S | Class II | >160 | 561×214×88 |
| ST35-50WS | 50 | 5050 | 24 | 8P3S | Class II | >160 | 561×214×88 |
| ST35-60WS | 60 | 5050 | 24 | 8P3S | Class II | >160 | 561×214×88 |
| ST35-70WM | 70 | 5050 | 48 | 16P3S | Class II | >160 | 679×281×90 |
| ST35-80WM | 80 | 5050 | 48 | 16P3S | Class II | >160 | 679×281×90 |
| ST35-100WM | 100 | 5050 | 48 | 16P3S | Class II | >160 | 679×281×90 |
| ST35-120WM | 120 | 5050 | 48 | 16P3S | Class II | >160 | 679×281×90 |
| ST35-150WM | 150 | 5050 | 48 | 16P3S | Class II | >160 | 679×281×90 |
Product Features
1. The overall ultra-thin design, exquisite appearance, elegant and elegant;
2. Die-cast aluminum material, hot-dip galvanized and spray-treated, good anti-corrosion performance;
3. Metal connecting part, all stainless steel, corrosion resistant and durable;
4. Built-in nano PC reflector, improve the overall light efficiency of the lamp by more than 5%;
5. Set the spirit level to accurately position and ensure that the installation of the lamp will not tilt.
6. Using high-quality SMD3030 chip and high-performance constant current driver, the overall performance is stable and the service life is long.
7. The angle of the mounting arm can be adjusted freely from 0 to 90 °, which is suitable for different installation needs;
8. There are two kinds of beam angles of 145 ° x80 ° and 150 ° x150 ° to choose from, to meet customer needs;
145x80°
150x150°
A
Applications
It is suitable for outdoor lighting places such as parking lots, expressways, industrial areas, schools, hospitals, and communities.
