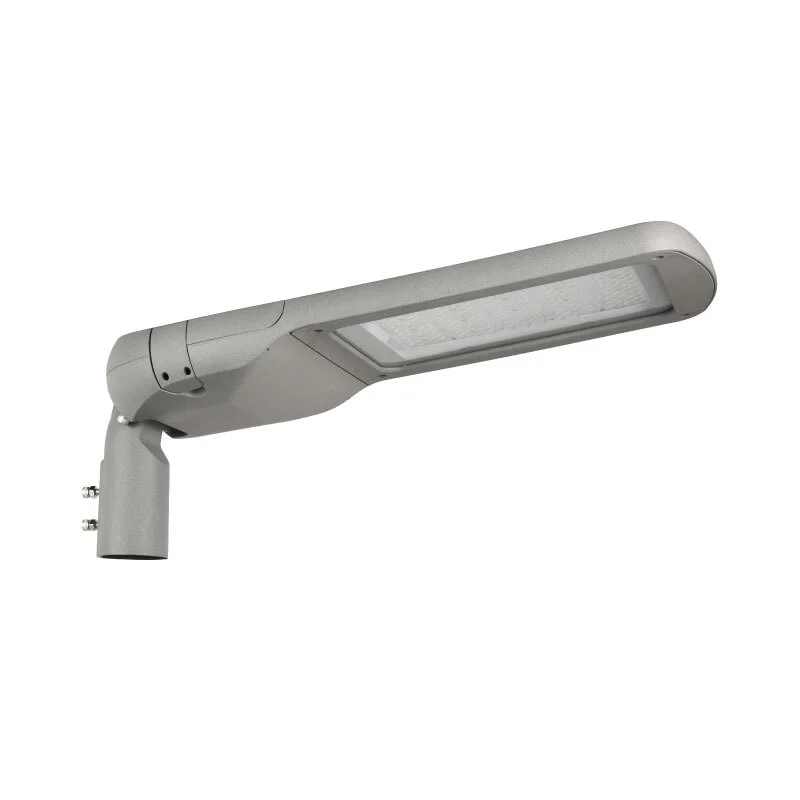

High Quality LED Street Lighting Fixture CHZ-ST29 1

High Quality LED Street Lighting Fixture CHZ-ST29 2

High Quality LED Street Lighting Fixture CHZ-ST29 3

High Quality LED Street Lighting Fixture CHZ-ST29 4

High Quality LED Street Lighting Fixture CHZ-ST29 5

High Quality LED Street Lighting Fixture CHZ-ST29 6

High Quality LED Street Lighting Fixture CHZ-ST29

MODEL:

CHZ-ST29

LED CHIPS:

LUMILEDS 5050

COLOR TEMPERATURE:

3000K / 4000K / 5000K / 5700K / 6500K

DRIVERS:

SOSEN / INVENTRONICS

BEAM ANGLE:

TYPE II TYPE III TYPE V

REGULATION:

0-10V / Timer / DALI

VOLTAGE:

100 - 277V / 200~240V

POWER FACTOR:

> 0.95

ELECTRICAL CATEGORY:

Class I / Class II

MATERIALS:

AL housing / AL heatsink / PC lens

PROTECTION(IP / IK):

IP66 - IK09

INSTALLATION:

Ø 60 mm

LIFETIME / WARRANTY:

50,000 hours / 5 years

WORKING ENVIRONMENT:

- 35ºC ~ + 50ºC / 10%-90%RH

CERTIFICATIONS:

CE CB ENEC+ ENEC ROHS ISO9001 ISO14001 ISO50001 ISO45001

Inquiry

Write a Review

Product Description

1.Overall aluminum die casting, heat sink fins, good heat dissipation.

2.Use UL standard lock, the overall structure is compact, sophisticated design work.

3.Metal connecting portion, all stainless steel, corrosion-resistant, durable.

4.Professional lens design, four different angles for different lighting requirements of the road.

5.Lamp angle adjustable from 0 ° to 90 °, either side-mounted, top-loading may be freely converted.

6.Using Philips 3030 or 5050 chips and MW driver, stable overall performance, lifetime 90,000 hours above.

High Quality LED Street Lighting Fixture CHZ-ST29 7

High Quality LED Street Lighting Fixture CHZ-ST29 8

CHZ-ST29 SERIES STREET LIGHT from CHZ Lighting. If you are looking for best street light company or LED street light fixture manufacturers, welcome to contact CHZ Lighting.

Full metal housing

Durable anti-rust and anti-erosion

Highpressure die castng aluminum housing，Patented Ribbon-Free

housing" technology，Excellent thermal management

High Quality LED Street Lighting Fixture CHZ-ST29 9

SMD3030 or SMD5050 high quality LED wick

Fast heat dissipation 丨 Good conductivity 丨 Anti-oxidation

High Quality LED Street Lighting Fixture CHZ-ST29 10

Tool free electrical gear tray, one step to remove the

whole electrical system, easy maintenance

High Quality LED Street Lighting Fixture CHZ-ST29 11

Post-top or Side- entry

mounted +15° or-15° title

High Quality LED Street Lighting Fixture CHZ-ST29 12

Horizontal installation or vertical installation

High Quality LED Street Lighting Fixture CHZ-ST29 13

Light control

Photocell/NAMA 3PIN, 5PIN, 7PIN

High Quality LED Street Lighting Fixture CHZ-ST29 14

Applications

1.Highway roads

2.Streets

3.Parking lots

4.Residential areas

High Quality LED Street Lighting Fixture CHZ-ST29 15

High Quality LED Street Lighting Fixture CHZ-ST29 16

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Protection Class	Lumen(LM/W)	Size(L×W×H)mm
ST29-40WMi	40	SMD5050	36	18P2S	Class I / II	>160	535×200×120
ST29-50WMi	50	SMD5050	36	18P2S	Class I	>160	535×200×120
ST29-60WMi	60	SMD5050	36	18P2S	Class I	>160	535×200×120
ST29-60WS	60	SMD5050	54	27P2S	Class I	>160	620×235×125
ST29-80WS	80	SMD5050	54	27P2S	Class I	>160	620×235×125
ST29-100WS	100	SMD5050	54	27P2S	Class I	>160	620×235×125
ST29-100WM	100	SMD5050	72	36P2S	Class I	>160	690×260×130
ST29-120WM	120	SMD5050	72	36P2S	Class I	>160	690×260×130
ST29-150WM	150	SMD5050	72	36P2S	Class I	>160	690×260×130
ST29-160WL	160	SMD5050	120	60P2S	Class I / II	>160	810×320×135
ST29-180WL	180	SMD5050	120	60P2S	Class I / II	>160	810×320×135
ST29-200WL	200	SMD5050	120	60P2S	Class I / II	>160	810×320×135
ST29-240WL	240	SMD5050	120	60P2S	Class I	>160	810×320×135
ST29-40WMi	40	SMD5050	36	18P2S	Class II	>160	535×200×120
ST29-50WMi	50	SMD5050	36	12P3S	Class II	>160	535×200×120
ST29-60WMi	60	SMD5050	36	12P3S	Class II	>160	535×200×120
ST29-70WS	70	SMD5050	54	18P3S	Class II	>160	620×235×125
ST29-80WS	80	SMD5050	54	18P3S	Class II	>160	620×235×125
ST29-100WS	100	SMD5050	54	18P3S	Class II	>160	620×235×125
ST29-100WM	100	SMD5050	72	24P3S	Class II	>160	690×260×130
ST29-120WM	120	SMD5050	72	24P3S	Class II	>160	690×260×130
ST29-150WM	150	SMD5050	72	24P3S	Class II	>160	690×260×130
