CHZ ENEC approved led street lighting factory bulk buy
1. Three firmness levels remain optional in CHZ design. They are plush soft (soft), luxury firm (medium), and firm—with no difference in quality or cost. Going through salt spray test up to hundreds of hours, it is highly resistant to corrosion
2. Comprehensive solutions about led street lighting can be provided by our professional service team. With high quality LED chips, it can operate for more than 50,000 hours without failure
3. The product features high transmittance. The lampshade housing is made of a material that is comparable to crystal, so the propagation of light is not obstructed. With a compact integrated design, it is easy for transportation
4. The product features a high CRI (color rendering index). It brings out the true colors of an object without appearing dinginess or inaccuracy. Having little electricity consumption, it is energy-keeping
5. Thanks to its advanced temperature cooling system, the product will not produce too much hot which will cause a fire. It is suitable to apply in the parking lot, garage, high-bay workshop, stadiums, etc

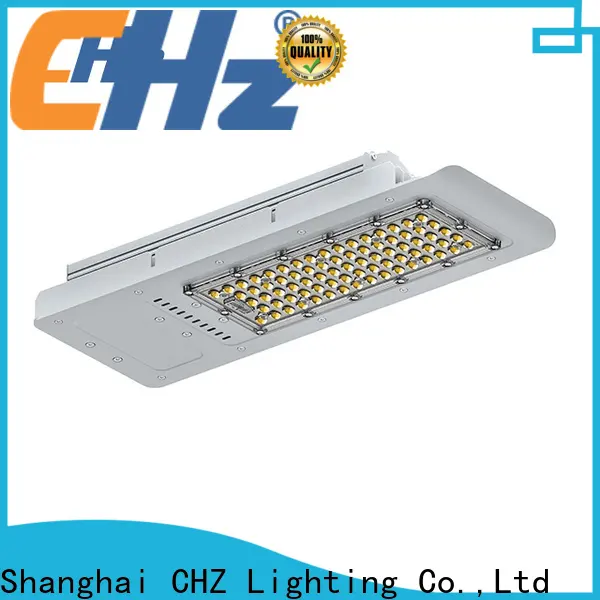

Hot Sale Factory Price High Brightness 50 Watt Led Street Light
Specifications of led street light
| Model | ST20-20W | ST20-35W | ST20-50W |
| Power | 20W | 35W | 50W |
| LED type | SMD 3030 | ||
| LED Qty | 24 PCS | 36 PCS | 54 PCS |
| Connection | 4P6S | 6P6S | 9P6S |
| Chips Volt | 36V | 36V | 36V |
| Chips Current | 500mA | 875mA | 1250mA |
| Input Volt | 100-277V | 100-277V | 100-277V |
| Power factor | >0.95 | >0.95 | >0.95 |
| Lumen | >125 LM/W | >125 LM/W | >125 LM/W |
| Color Temp | 3000-6500K | 3000-6500K | 3000-6500K |
| Color Render | >70 | >70 | >70 |
| Beam angle | 145°x 75° | 145°x 75° | 145°x 65° |
| Product size | 366X135X84 (mm) | 366X135X89 (mm) | 431X160X89 (mm) |
| Light material | Die-cast AL body+PC lens | ||
| Protection degree | IP66&IK10 | ||
| Work Temp | —40℃~+50℃ | ||
| Work Humidity | 10%~90% | ||
| Lifetime/Warranty | 50,000hrs / 5 years | ||
More details of led street light
Product features of led street light:
A. Slim overall design, quite modern;
B. Power boxes, lamp arm integrated design, space-saving, small wind resistance;
C. With special designed adaptor, 120°adjustable angle, light heart action;
D. Degree of protection up to IP66, seismic rating to IK10, overall solid and reliable;
E. Using high-quality LED chip and constant current driver, stable performance, long life of 60,000 hours or more.
Related products
Company Introduction
Certificate
Contact us
Why choose us? Shanghai CHZ Lighting Technology Co., Ltd. is one of leading manufacturer of LED lighting products in China. And having set up one branch company and logistic warehouse in Spain for Europe market.Then we would build up more branches step by step, offering better logistic and after-sales service. Customers` satisfaction is our tireless pursuit! Believe CHZ is worthy of your trust and CHZ is your best choice!
All our customers enjoy the below benefits:
1. Excellent after sales service
2. Free samples for some items
3. Free e-catalog and printed catalog
4. Product installation instructions
5. Full compensation within warranty time
6. Special requirements of carton design a
7. Latest price list, competitive price with good quality products
Company Features
1. Shanghai CHZ Lighting Co.,Ltd has national and global competitiveness in supplying led street lighting . Our production capacity occupies steadily in the forefront of the all in one street light industry.
2. Our integrated street light is easily operated and need no additional tools.
3. We've been focusing on manufacturing high quality cob led street light for domestic and abroad customers. Customers are bound to find something interesting at CHZ Lighting.
