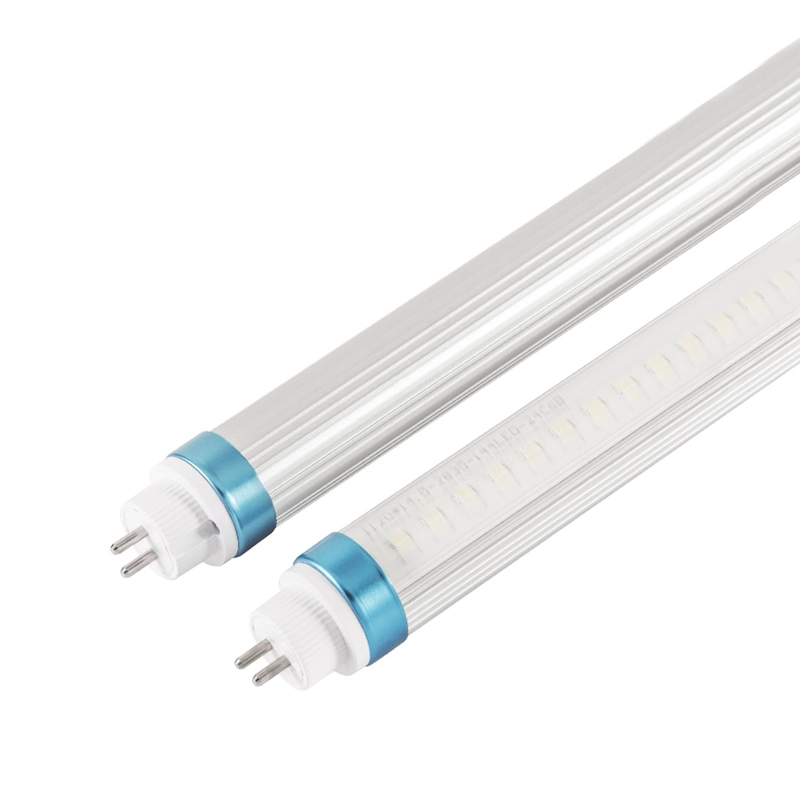

Led tube lighting CHZ-LT06-T6 led tube T6 single or double connect ordinary type AL+PC material 1

Led tube lighting CHZ-LT06-T6 led tube T6 single or double connect ordinary type AL+PC material 2

Led tube lighting CHZ-LT06-T6 led tube T6 single or double connect ordinary type AL+PC material 3

Led tube lighting CHZ-LT06-T6 led tube T6 single or double connect ordinary type AL+PC material 4

Led tube lighting CHZ-LT06-T6 led tube T6 single or double connect ordinary type AL+PC material

MODEL:

CHZ-LT06-T6

LED CHIPS:

SMD 2835

COLOR TEMPERATURE:

3000K / 4000K / 5000K / 5700K / 6500K

VOLTAGE:

100-277V

POWER FACTOR:

0.9

MATERIALS:

AL+PC

LIFETIME / WARRANTY:

50,000 hours / 5 years

WORKING ENVIRONMENT:

- 30ºC ~ + 50ºC / 10%-90%RH

LUMEN:

120LM/W / 160LM/W

LENGTH:

60cm/2FT 120cm/4FT 150cm/5FT

DRIVER CONNECT:

Single/Double

CRI:

CERTIFICATIONS:

CE ROHS ISO9001 ISO14001 ISO50001 ISO45001

BUSHING:

T6 - Fixed / Rotating

Inquiry

Write a Review

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Length	Size(L×W×H)mm
LT06 - T6(ROUND)	9	SMD2835	72	6P12S	0.6m/2ft	φ22×L600
	18	SMD2835	144	12P12S	1.2m/4ft	φ22×L1200
	25	SMD2835	192	16P12S	1.5m/5ft	φ22×L1500
LT06 - T6(ROUND）(compatible)	9	SMD2835	72	6P12S	0.6m/2ft	φ22×L600
	18	SMD2835	144	12P12S	1.2m/4ft	φ22×L1200
	25	SMD2835	192	16P12S	1.5m/5ft	φ22×L1500

CHZ-LT06-T6 Feature

1. It adopts high-quality aluminum material and PC translucent cover, and the overall structure is beautiful and atmospheric;

2. The thickness of the lamp body is 0.8mm, the lamp body is firm and reliable, and the heat dissipation is fast; and the high light transmission PC cover is adopted, which is transparent or milky white, and has good anti-aging performance;

3. Using high-quality LED2835 chip, high light efficiency; aluminum substrate heat dissipation speed;

4. The diameter of the T6 tube is larger than that of the T5. The installation size is also suitable for the T5 bracket, but the luminous efficiency is higher than that of the T5, the heat dissipation is better, the light efficiency is higher, and the life is longer.

5. Widely used to replace traditional T5 fluorescent lamps, with high luminous efficiency and energy saving of more than 60%;
