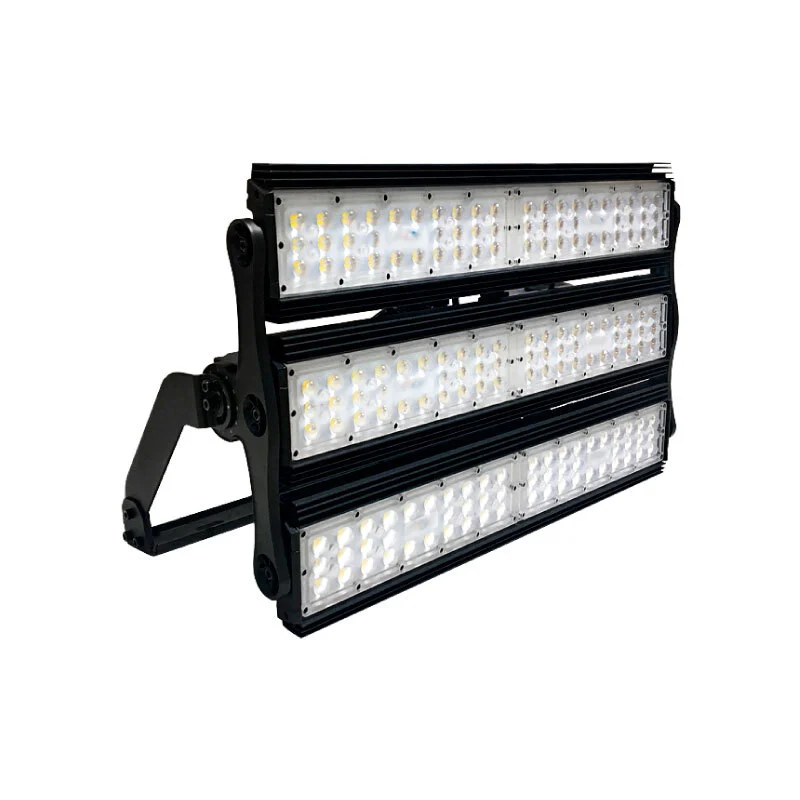

led floodlight for football fields CHZ-FL21A

MODEL:

CHZ-FL21A

LED CHIPS:

LUMILEDS 3030 / 5050 / 3737

COLOR TEMPERATURE:

4000K / 5000K / 5700K / 6500K

DRIVERS:

INVENTRONICS

BEAM ANGLE:

30° / 60° / 90° / 60x90° / TYPE II / TYPE III / TYPE IV / TYPE V / Asymmetric 60°

REGULATION:

1-10V / DALI / Timer

VOLTAGE:

100 - 277V AC 50/60Hz

POWER FACTOR:

> 0.95

ELECTRICAL CATEGORY:

Class I Class II

MATERIALS:

AL housing / PC lens

LIFETIME / WARRANTY:

50,000 hours / 5 years

WORKING ENVIRONMENT:

- 40ºC ~ + 50ºC / 10%-90%RH

PROTECTION(IP - IK - KV):

IP66 - IK08 - 10KV

LUMEN:

120LM/W / 145LM/W

CERTIFICATIONS:

CB CE ROHS ISO9001 ISO14001 ISO50001 ISO45001

Inquiry

Write a Review

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Lumen(Lm/W)	Beam Angle	Size(L×W×H)mm
FL21A-100W	100W	SMD3030	99	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	298×145×94
FL21A-200W	200W	SMD3030	198	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	326×277×118
FL21A-300W	300W	SMD3030	297	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	326×402×118
FL21A-400W	400W	SMD3030	396	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×279×118
FL21A-480W	480W	SMD3030	396	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×279×118
FL21A-600W	600W	SMD3030	594	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×404×118
FL21A-800W	800W	SMD3030	792	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×535×156
FL21A-900W	900W	SMD3030	891	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	896×405×156
FL21A-100W	100W	SMD5050	28	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	298×145×94
FL21A-200W	200W	SMD5050	56	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	326×277×118
FL21A-300W	300W	SMD5050	84	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	326×402×118
FL21A-400W	400W	SMD5050	112	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×279×118
FL21A-480W	480W	SMD5050	140	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×279×118
FL21A-600W	600W	SMD5050	168	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×404×118
FL21A-800W	800W	SMD5050	196	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×535×156
FL21A-900W	900W	SMD5050	224	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	896×405×156
FL21A-100W	100W	SMD3737	36	2P18S	>120	Asymmetric 60°	298×145×94
FL21A-200W	200W	SMD3737	72	2P18S	>120	Asymmetric 60°	326×277×118
FL21A-300W	300W	SMD3737	108	2P18S	>120	Asymmetric 60°	326×402×118
FL21A-400W	400W	SMD3737	144	2P18S	>120	Asymmetric 60°	613×279×118
FL21A-480W	480W	SMD3737	180	2P18S	>120	Asymmetric 60°	613×279×118
FL21A-600W	600W	SMD3737	216	2P18S	>120	Asymmetric 60°	613×404×118
FL21A-800W	800W	SMD3737	288	2P18S	>120	Asymmetric 60°	613×535×156
FL21A-900W	900W	SMD3737	324	2P18S	>120	Asymmetric 60°	896×405×156

Product Features

1)Adjustable projecting direction;
2)With die-casting ADC-12 material, the new Agility flood light has a superb heat dissipation and long lifespan;
3)VDE/UL listed 3*1.0mm² rubber cable with cold-pressed terminal;
4) Wide range of lumen output package from 11,000lm up to 130,500lm, 50% less power consumption than traditional light;
5)The combinations of different drivers, mounting brackets, modules and baffles allow the quickly assembly at customers' request;
6)With different LED chips for option, SMD3030/ SMD5050/ SMD3737, to reach various optic system, such symmetrical 30°/60°/90°/TYPE V, Asymmetrical 60°, TYPE II/ TYPE III /TYPE IV/ TYPE V to match with different applications.

led floodlight for football fields CHZ-FL21A 11

led floodlight for football fields CHZ-FL21A 12

Adjustable projecting direction;

led floodlight for football fields CHZ-FL21A 13

With die-casting ADC-12 material, the new Agility flood light has a superb heat dissipation and long lifespan;

led floodlight for football fields CHZ-FL21A 14

VDE/UL listed 3*1.0mm² rubber cable with cold-pressed terminal; Wide range of lumen output package from 11,000lm up to 130,500lm, 50% less power consumption than traditional light sources.
