high-efficiency tube light products hospitals
-
v s

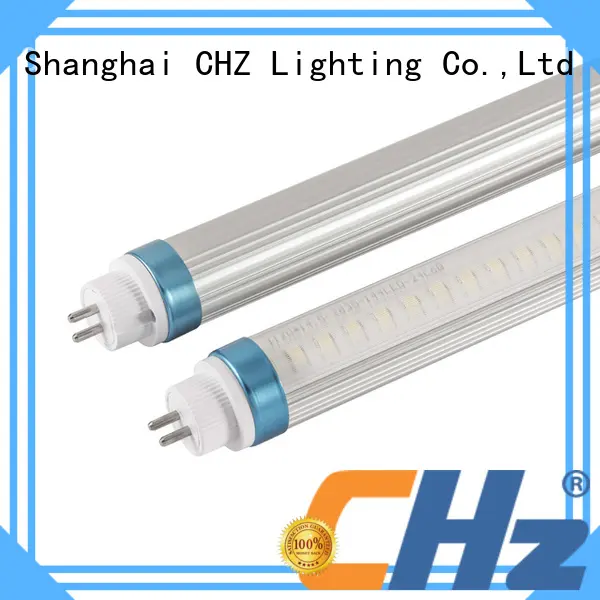

1. Unlike the traditional foot outline extraction method, the outline of CHZ t6 tube light is produced using the advanced digital technology and CAD mold designing technique.
2. Its surge protection device is a good barrier against the surge voltage for the LED driver and other electronic components. This device guarantees the longer service life of the product.
3. Having a light diffuser inside, the product gathers light to a certain direction instead of scatters light randomly, which helps to reduce light pollution.
4. To effectively control quality, Shanghai CHZ Lighting Co.,Ltd set up professional inspection and QC team.
5. Without the high quality performance, tube light can not be so popular in this market.
Company Features
1. With years of experience, Shanghai CHZ Lighting Co.,Ltd is a best reliable source for the needs of R&D and manufacture of t6 tube light .
2. Shanghai CHZ Lighting Co.,Ltd is solid and strong for its technology foundation.
3. To uphold green production, beyond reducing waste and properly utilizing resources, we are also seeking a more environmental-friendly packaging way. For example, we hope to reuse cardboard boxes or turn the discarded papers into environmentally friendly packaging materials. We work with our suppliers to educate and motivate them to deliver higher sustainability options and standards and to understand sustainable travel behavior. When promoting green, cyclic, and low-carbon development becomes a trend, we act flexibly to this change. We readjust the production structure to a greener way and seek more forms of waste conversion to reduce pollution.
MIC product feature:
description:
Extreme Efficiency: Over 80% more efficient than traditional fluorescents
Flicker-Free Lighting: Eliminate eye strain and headaches associated with fluorescents lighting
Double Energy Savings: LED tube requires no ballast saving even more energy
Flexible Voltage: Use lighting AC 85-300V Input Environments
No Interference: Perfect for settings where precise instruments can be disturbed by fluorescentInstant Starting
advantage:
(1) LED view angle:140°, it could used as home lighting.
(2) Use low power 3528SMD led tube light, it's much more brightness, faster thermal dissipation, longer life, less brightness degradation than plug-in unit LED tube light.
application:
Living room, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room;
Factory, plant, office;
Supermarket, department store;
MIC product parameter:
| Model | Power (w) | size (mm) | LED QTY(pcs) | Light Flux(lm) | Beam Angle | Life span | Ra |
| MT-T81DU | 9w | 600mm / 2ft * Dia30mm | 150 leds | 800-900lm | 120 | 50,000hrs | > 75 |
| MT-T81DU-1 | 11w | 600mm / 2ft * Dia30mm | 180 leds | 950-1050lm | 120 | 50,000hrs | > 75 |
| MT-T82FU | 14w | 900mm / 3ft *Dia 30mm | 225 leds | 1150-1350lm | 120 | 50,000hrs | > 75 |
| MT-T83GU | 16w | 1200mm / 4ft *Dia 30mm | 270 leds | 1500-1600 lm | 120 | 50,000hrs | > 75 |
| MT-T83HU | 18w | 1200mm / 4ft * DiaDia30mm | 300 leds | 1700-1800lm | 120 | 50,000hrs | > 75 |
| MT-T83IU | 20w | 1200mm / 4ft * Dia30mm | 336 leds | 1900-2000lm | 120 | 50,000hrs | > 75 |
| MT-T84JU | 22w | 1500mm / 5ft * Dia30mm | 375 leds | 2150-2350 lm | 120 | 50,000hrs | > 75 |
| MT-T85KU | 26w | 1800mm / 6ft * Dia30mm | 450 leds | 2400-2600lm | 120 | 50,000hrs | > 75 |
| MT-T86NU | 36w | 2400mm / 8ft * Dia30mm | 600 leds | 3400-3600lm | 120 | 50,000hrs | > 75 |
| LED Tube T5(0.3m/0.6m/1.2m) | |||||||
| Technical Parameters | |||||||
| Model | Power (w) | size (mm) | LED QTY(pcs) | Light Flux(lm) | Beam Angle | Life span | Ra |
| MT-T50AU | 3w | 300mm / 1ft *Dia 15mm | 45 leds | 250-300 lm | 120 | 50,000hrs | > 75 |
| MT-T51BU | 6w | 600mm / 2ft *Dia 15mm | 108 leds | 500-600lm | 120 | 50,000hrs | > 75 |
| MT-T53EU | 12w | 1200mm / 4ft *Dia 15mm | 224 leds | 1100-1200lm | 120 | 50,000hrs | > 75 |
| led double sides tube (0.6m/1.2m) | |||||||
| Technical Parameters | |||||||
| Model | Power (w) | size (mm) | LED QTY(pcs) | Light Flux(lm) | Beam Angle | Life span | Ra |
| MT-T81DU-D | 18w | 600mm / 2ft *Dia 30mm | 300 leds | 1500-1600lm | 360 | 50,000hrs | > 75 |
| MT-T83HU-D | 36w | 1200mm / 4ft *Dia 30mm | 600leds | 1700-1800lm | 360 | 50,000hrs | > 75 |
