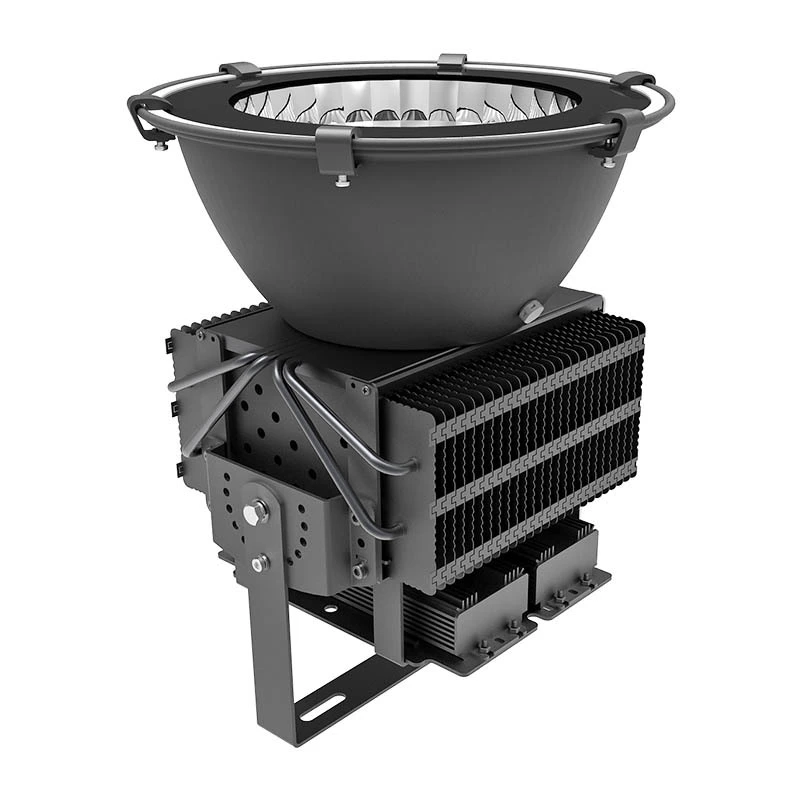

Sport Lighting CHZ-FL08

MODEL:

CHZ-FL08

LED CHIPS:

LUMILEDS 5050

COLOR TEMPERATURE:

4000K / 5000K / 5700K / 6500K

DRIVERS:

MW / SOSEN

BEAM ANGLE:

25°/45°/60° /90°

REGULATION:

1-10V / Timer

VOLTAGE:

100 - 277V

POWER FACTOR:

> 0.95

ELECTRICAL CATEGORY:

Class I Class II

MATERIALS:

AL housing / Glass cover / PC lens

LIFETIME / WARRANTY:

50,000 hours / 5 years

WORKING ENVIRONMENT:

- 30ºC ~ + 50ºC / 10%-90%RH

PROTECTION(IP - IK - KV):

IP66 - IK09 - 6KV

LUMEN:

130LM/W

CERTIFICATIONS:

CE ROHS ISO9001 ISO14001 ISO50001 ISO45001

Inquiry

Write a Review

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Size(L×W×H)mm
FL08-200W	200W	SMD5050	96	2S48P	375×375×470
FL08-300W	300W	SMD5050	96	2*2S24S	375×375×470
FL08-400W	400W	SMD5050	188	2*2S47P	375×375×500
FL08-500W	500W	SMD5050	188	2*2S47P	375×375×500

Three Technological Innovations

1. High power LED heatsink has perfectly replaced the traditional 600w dium lamp, this energy-saving cutting edge innovation fills the gap in the lEd heatsink market.

2. Pccooler's four patented technologies: HDT, zipped-fin, crimped fins compressed pipe making the high power LED heatsink lighter, easy to nstal, solid in structure, super heat dissipation.

3. Modular design, making power diverse, enriching product line.

Applications

Factory, gymnasium, lighting decoration, square, golf course, vessel airport, metro station, business area, flyover, outdoor advertising landmark and so on.
