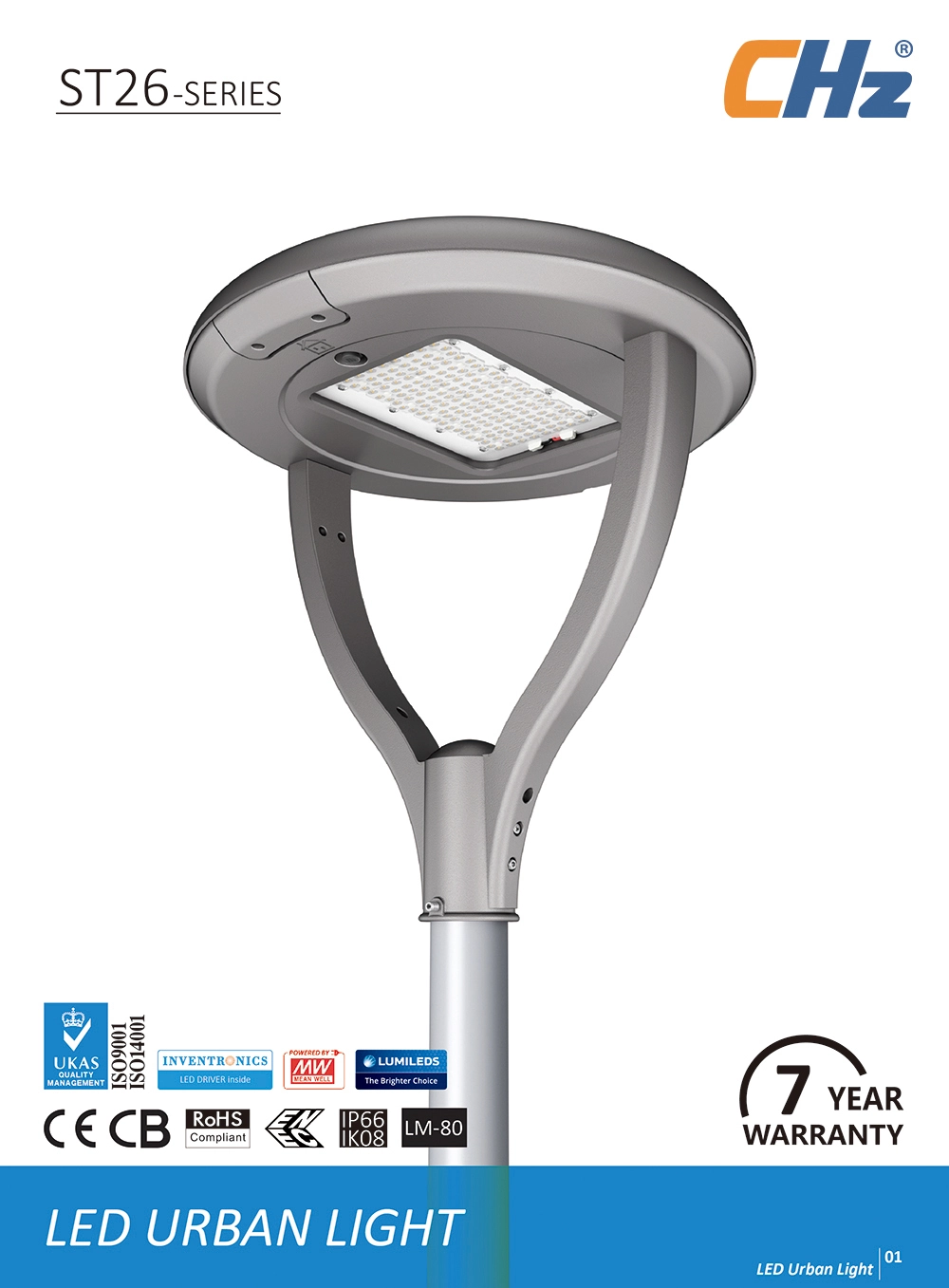

Outdoor ip66 garden lighting CHZ-ST26A led garden light
5.0
MODEL:
CHZ-ST26A
LED CHIPS:
LUMILEDS 5050 / LUMILEDS 3030
COLOR TEMPERATURE:
3000K / 4000K / 5000K / 5700K
DRIVERS:
SOSEN / INVENTRONICS
BEAM ANGLE:
1M / 2M 3M / 5S/1M Symmetry
REGULATION:
0-10V / Timer / DALI
VOLTAGE:
100 - 277V / 200~240V
POWER FACTOR:
> 0.95
ELECTRICAL CATEGORY:
Class I / Class II
MATERIALS:
AL housing / AL heatsink / PC lens
INSTALLATION:
Ø 60mm – Ø 40/42/50 mm with adapter (optional)
LIFETIME / WARRANTY:
50,000 hours / 5 years
WORKING ENVIRONMENT:
- 40ºC ~ + 50ºC / 10%-90%RH
PROTECTION(IP - IK - KV):
IP65 - IK08 - 10KV
CERTIFICATIONS:
CB ENEC ROHS ISO9001 ISO14001 ISO50001 ISO45001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Parameters
| Model No. | Power(W) | Chips | Chips Qty | Chips S/P | Protection Class | Lumen(LM/W) | Size(L×W×H)mm |
| ST26-30WA | 30W | SMD3030 | 72 | 8S9P | Class I | >130 | Ф480×521 |
| ST26-50WA | 50W | SMD3030 | 96 | 8S12P | Class I / II | >130 | Ф480×521 |
| ST26-60WA | 60W | SMD3030 | 120 | 8S15P | Class I / II | >130 | Ф480×521 |
| ST26-80WA | 80W | SMD3030 | 144 | 8S18P | Class I / II | >130 | Ф480×521 |
| ST26-100WA | 100W | SMD3030 | 168 | 8S21P | Class I / II | >130 | Ф480×521 |
| ST26-120WA | 120W | SMD3030 | 168 | 8S21P | Class I / II | >125 | Ф480×521 |
| ST26-30WA | 30W | SMD5050 | 36 | 2S18P | Class I | >130 | Ф480×521 |
| ST26-50WA | 50W | SMD5050 | 48 | 2S24P | Class I / II | >130 | Ф480×521 |
| ST26-60WA | 60W | SMD5050 | 60 | 2S30P | Class I / II | >130 | Ф480×521 |
| ST26-80WA | 80W | SMD5050 | 72 | 2S36P | Class I / II | >130 | Ф480×521 |
| ST26-100WA | 100W | SMD5050 | 84 | 2S42P | Class I / II | >130 | Ф480×521 |
| ST26-120WA | 120W | SMD5050 | 84 | 2S42P | Class I / II | >125 | Ф480×521 |
| ST26-40WA | 40W | SMD3030 | 72 | 8S9P | Class II | >130 | Ф480×521 |
| ST26-100WA | 100W | SMD3030 | 168 | 21S8P | Class II | >130 | Ф480×521 |
| ST26-120WA | 120W | SMD3030 | 168 | 21S8P | Class II | >130 | Ф480×521 |
| ST26-40WA | 40W | SMD5050 | 36 | 2S18P | Class II | >130 | Ф480×521 |
Product Features
A.Made by die cast aluminum,surface treatment for electrostatic powder coating.
B.Diffusion is made by high-strength tempered glass.
C.The reflector is made by high pure aluminum.
D.Heat resisting silicone rubber gasket.
E.Special olivary design, matching with the surrounding.
F.Use high efficient diffuser and super white transparent seal glass.
A
Applications
Widely used in urban roads, parking lots, bicycle lanes, gardens, plazas, residential areas and other outdoor venues.
