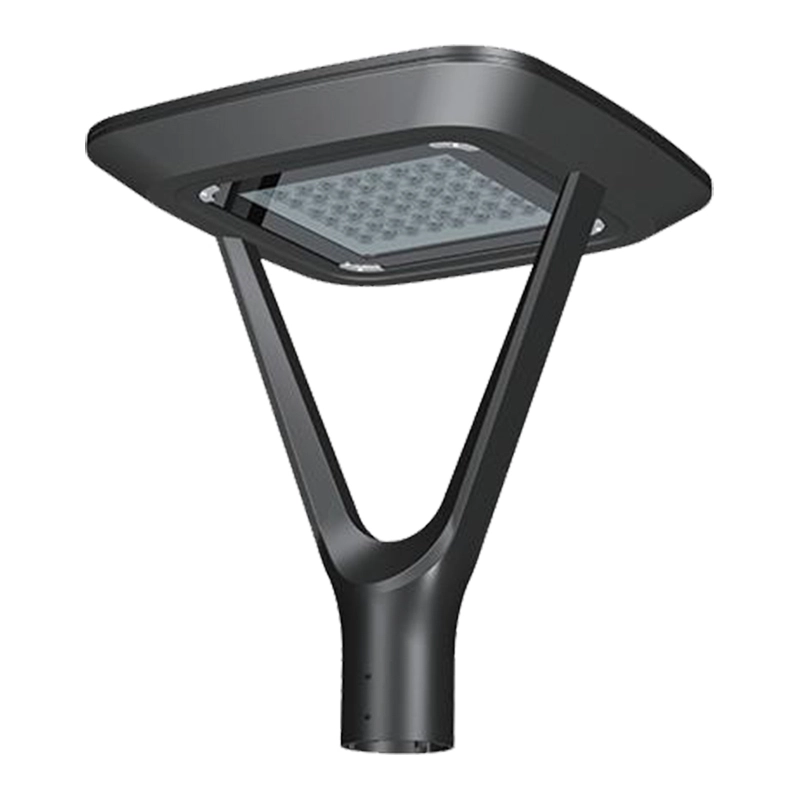

LED Garden Lighting 30-150W CHZ-GD30B
Parameters
| Model No. | Power(W) | Chips | Chips Qty | Chips S/P | Protection Class | Lumen(LM/W) | Size(L×W×H)mm |
| GD30B-30W | 30W | SMD3030 | 144 | 8S18P | Class I | >130 | D480×567 |
| GD30B-40W | 40W | SMD3030 | 144 | 8S18P | Class I | >130 | D480×567 |
| GD30B-50W | 50W | SMD3030 | 144 | 8S18P | Class I | >130 | D480×567 |
| GD30B-60W | 60W | SMD3030 | 144 | 8S18P | Class I | >130 | D480×567 |
| GD30B-90W | 90W | SMD3030 | 192 | 8S24P | Class I | >130 | D480×567 |
| GD30B-120W | 120W | SMD3030 | 192 | 8S24P | Class I / II | >130 | D480×567 |
| GD30B-30W | 30W | SMD3030 | 192 | 8S24P | Class II | >130 | D480×567 |
| GD30B-40W | 40W | SMD3030 | 192 | 8S24P | Class II | >130 | D480×567 |
| GD30B-50W | 50W | SMD3030 | 192 | 8S24P | Class II | >130 | D480×567 |
| GD30B-60W | 60W | SMD3030 | 192 | 8S24P | Class II | >130 | D480×567 |
| GD30B-80W | 80W | SMD3030 | 192 | 8S24P | Class II | >130 | D480×567 |
| GD30B-100W | 100W | SMD3030 | 192 | 8S24P | Class II | >130 | D480×567 |
Product Features
-
1) The simple design of the whole lamp is beautiful and generous; at the same time it can be disassembled, the package is small in size and convenient for transportation;
2) The lamp body is made of aluminum die-casting material, galvanized and surface electrostatically sprayed. The conventional colors are gray and black (Color Reference, RAL 9005/7015 RAL), the surface is smooth and corrosion-resistant;
3) The dual diffuser illuminance diffuser makes the light more uniform, no glare, and the light is more comfortable;
4) The whole lamp has good protection performance and reaches IP66 and IK09. It has reliable performance and is not easy to be damaged.
5) Imported 3030E light source and high performance drive, stable operation, high luminous efficiency and long service life;
6) Easily handled by hand, tool free. When operation, it will be switched off. Make sure safety of the technicians.
7) It can be matched with photocell on the top. So that intelligent control can be realized.
Light distribution curve：
145°x80°
150°x150°
A
Applications
Widely used in urban roads, parking lots, bicycle lanes, gardens, plazas, residential areas and other outdoor venues.
