CHZ led street light supply for promotion
Chz lighting technology 150w street led light for road 120w ip66 sale

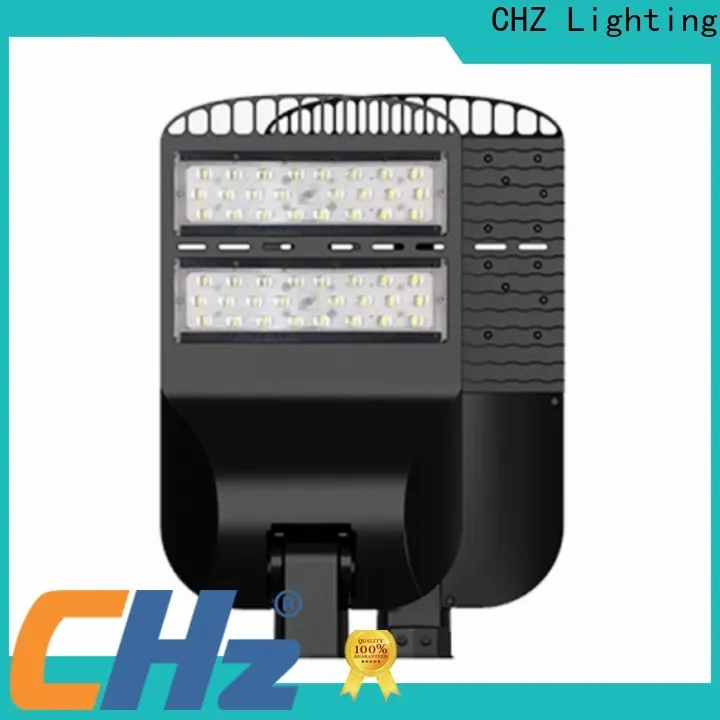

Product Features of new design led street light CHZ-ST35:
1. The overall ultra-thin design, exquisite appearance, elegant and elegant;
2. Die-cast aluminum material, hot-dip galvanized and spray-treated, good anti-corrosion performance;
3. Modular design, heat dissipation effect, protection level up to IP66;
4. With movable handle, adjustable installation angle 0-90 °, easy to operate;
5. Light controller can be installed to facilitate light control and other intelligent control;
6.Using LUMILEDS SMD3030 or SMD5050 light source, and high-performance constant current drive, the overall performance is stable, high light efficiency, low light attenuation, long service life.
Applications:
It is suitable for outdoor lighting places such as parking lots, expressways, industrial areas, schools, hospitals, and communities.
Specification sheet of CHZ-ST35 led street lights:
Model | ST35-40W | ST35-60W | ST35-100W | ST35-150W |
Power | 40W | 60W | 100W | 150W |
Lamp Bead Type | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 |
Number of lamp beads | 60PCS | 60PCS | 120PCS | 180PCS |
Serial-parallel | 10P6S | 10P6S | 20P6S | 30P6S |
Light effect | >130LM/W | >130LM/W | >130LM/W | >130LM/W |
Product Size | 410x200x90mm | 410x200x90mm | 542x290x105mm | 642x290x120mm |
Model | ST35-40W | ST35-60W | ST35-100W | ST35-150W |
Power | 40W | 60W | 100W | 150W |
Lamp Bead Type | SMD5050 | SMD5050 | SMD5050 | SMD5050 |
Number of lamp beads | 60PCS | 60PCS | 120PCS | 180PCS |
Serial-parallel | 30P2S | 30P2S | 60P2S | 90P2S |
Light effect | >160LM/W | >160LM/W | >160LM/W | >160LM/W |
Product Size | 410x200x90mm | 410x200x90mm | 542x290x105mm | 642x290x120mm |
Color temperature | 3000K / 4000K / 5000K / 5700K / 6500K, according to customer needs | |||
Beam angle | 150°x65° | |||
Color rendering | CRI > 70 | |||
Operating Voltage | 100-277V | |||
Power factor PF | >0.95 | |||
Drive type | MW, INVENTRONICS or others, according to customer needs | |||
Dimming method | Normal, 0-10V, PMW, DALI and other intelligent control, according to the actual needs of customers; can also be installed with light controller | |||
Light body material | Die-cast aluminum lamp body + high transmission PC lens + 304 stainless steel screws | |||
Installation pipe diameter | D60mm | |||
Protection class | IP65/IK09 | |||
Lightning protection level | 10KV or 20KV | |||
Operating temperature | -30℃~+60℃ | |||
Working humidity | 10%~90% | |||
Life / warranty | 50,000hrs/5 Years | |||
FAQ:
1. What are your market reach throughout the regiion?
Our markets around the world in every corner, we have many years of experience in foreign trade.Our clients are from different countries. And we have branch office in Spain and Nigeria.
2. Whar are your main products?
Our main products are led outdoor lightings including led flood light( stadium lighting), led high bay light, led street lighting and led garden light.
3. Are you a manufactuer or a trading company?
We are a professional LED manufacturer.
4. Do you have the ability to do independent research and development?
Our engineering department have the research and development capabilities. We also collect regular customer feedback to research new product.
5. How to contact you?
Welcome to vist our websit (www.chz-lighting.com) to get more information.
