CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013
CHZ high quality english street lights inquire now bulk buy
1. CHZ is completed in the highly efficient production line. Adopting an intelligent constant current driver, it has no flicker problem
2. Shanghai CHZ Lighting Co.,Ltd adopt top quality materials to ensure of the english street lights . The product is quick in turning on and off
3. english street lights have always found a traditional use in the industries. It is widely exported to over 60 countries and regions
4. Excellent in and fantastic are the biggest points of english street lights . It has a wide light beam angle, which offers enough brightness for certain areas
5. Our english street lights can be applied to different fields. The overall die-casting metal body guarantees its robustness

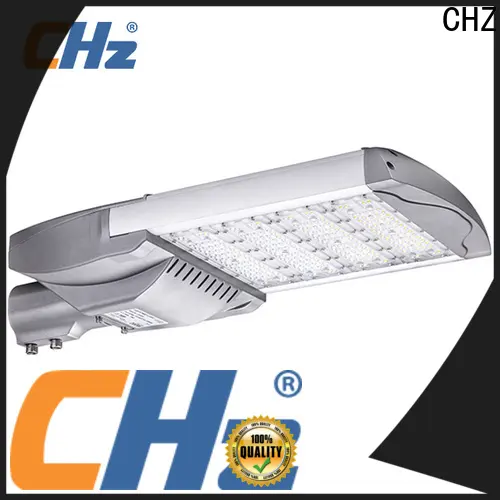

High lumens 50w 100w 150w 200w outdoor aluminum body led street light
Product descriptions of led street light:
Product features of led street light:
A. Overall aluminum die casting,heat sink fins, good heat dissipation;
B. Use UL standard lock, the overall structure is compact, sophisticated design work;
C. Metal connecting portion, all stainless steel, corrosion-resistant, durable;
D. Professional lens design, four different angles for different lighting requirements of the road;
E. Lamp angle adjustable from 0° to 90°, either side-mounted, top-loading may be freely converted;
F. Using high-quality LED chip and constant current driver,stable overall performance, long life of 60,000 hours above.
Technical parameters of led street light:
| Model | ST12-40WA1 | ST12-80WA2 | ST12-120WA3 | ST12-160WA4 | ST12-200WA5 |
| Power | 40W | 80W | 120W | 160W | 200W |
| LED type | SMD3030 | ||||
| Chips connection | 1*(8S8P) | 2*(8S8P) | 3*(8S8P) | 4*(8S8P) | 5*(8S8P) |
| Input Volt | 100-240V/277V AC 50/60Hz | ||||
| Dimmable type | 0-10V,PWM, Timer, DALI | ||||
| Driver type | MW Driver | ||||
| Max current@ 120V | 0.41A | 0.82A | 1.23A | 1.65A | 2.06A |
| Max current @208V | 0.24A | 0.47A | 0.71A | 0.95A | 1.19A |
| Max current @240V | 0.21A | 0.41A | 0.62A | 0.82A | 1.03A |
| Max current@277V | 0.18A | 0.36A | 0.53A | 0.71A | 0.89A |
| Work temperature | -40 ºC to +50 ºC | ||||
| Power factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| THD | <20% | <20% | <20% | <20% | <20% |
| Lumen efficency | >130LM/W | >130LM/W | >130LM/W | >130LM/W | >130LM/W |
| Color rendering | >70 | >70 | >70 | >70 | >70 |
| Beam angle | TYPE I (150°x65°)/TYPE II (140°x80°)/ TYPE III (145°x100°)/ TYPE V (105°x100°) | ||||
| Color temperature | 3000-6500K | ||||
| Protection degree | IP66, IK10 | ||||
| Light material | Housing: Die-cast aluminum; Heat sink: Stretched Aluminium Alloy; Lens: PC | ||||
| Installation way | Horizontal or vertical installation, 0-10-15 degrees adjustable angle | ||||
| Optional accessory | Light head Ø 60 mm and 40/42mm apaptor for option | ||||
| Shell color | Sliver-gray (RAL9022) or black (RAL9005) | ||||
| Lumen Maitenance | >60,000 hours at 25℃/ 5 years warranty | ||||
| Certification | TUV,ENEC,ROHS,ISO9001,ISO14001,LM80 | ||||
Product catalog and design of led street light:
Beam angle of led street light:
Installation methods of led street light:
Product application of led street light:
Packing & Shipping:
Related Products of led street light:
Company Introduction:
Shanghai CHZ Lighting Technology Co., Ltd. was established in 2010, is one of leading manufacturer of LED lighting products in China. The headquarter lies in Nanxiang CBD district of Shanghai, adjacent to Shanghai Hongqiao Airport and train station, subway, high-speed railway station. The transportation is very convenvient. Our R&D center is located at Jiangqiao Industrial Development Zone.
By continuous R&D investment, CHZ keeps promoting new products, meeting various needs of the market, covering indoor and outdoor lights, We have got a few patents and lots of quality certifications, such as CE, ROHS, ERP, TUV, CB, SAA, UL, CUL, DLC and etc. Meanwhile, our company passed ISO9000 and ISO 14000 system certification. Till now, our products has been widely used in thousands of lighting projects in the world and won good reputation.
After years of development, “CHZ” has gradually become one well-known brand in this field. In order to offer better service for global customers, we have set up one branch company and logistic warehouse in Spain for Europe market, early this 2016. Then we would build up more branches step by step, offering better logistic and after-sales service. Customers` satisfaction is our tireless pursuit! Believe CHZ is worthy of your trust and CHZ is your best choice!
