CHZ-CPL02 High Quality Smart Control Aluminum LED Lawn Light outdoor IP65 Waterproof
5.0
MODEL:
CHZ-CP02
LED CHIPS:
SMD2835
COLOR TEMPERATURE:
2700K / 3000K / 4000K / 5000K / 5700K / 6500K
DRIVERS:
TRIDONIC / PHILIPS / KEGU
REGULATION:
REGULAR / 0-10V / DALI
VOLTAGE:
200 - 240V
POWER FACTOR:
> 0.9
MATERIALS:
AL housing / AL heatsink / PC lens
PROTECTION(IP / IK):
IP65 / IK10
LIFETIME / WARRANTY:
50,000 hours / 5 years
WORKING ENVIRONMENT:
- 40ºC ~ + 55ºC / 10%-90%RH
STORAGE TEMP:
CE CB ROHS ISO9001 ISO14001 ISO50001 ISO45001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
CHZ-CPL02 High Quality Smart Control Aluminum LED Lawn Light outdoor IP65 Waterproof
1. Main body is made of Die-casting aluminum alloy with Extruded aluminum alloy.
2. The diffuser is a frosted anti-UV glass for high efficiency and vandal resistance.
3. Lumileds2835 or 3030 chip and Philips driver as regular, Tridonic, Eaglerise, Kegu driver options.
4. Easy access to LED and driver via a removable head.
5. Tamper proof fixings for increased vandal resistance.
6. Anti-UV electrostatic powder spraying, Black, Silver, RAL7043, RAL7016 color optional.
| Model No. | Power(W) | Chips | Chips Qty | Chips S/P | Protection Class | Lumen(LM/W） | ||
|
CPL02-400
|
10-20
|
SMD2835
|
60 | 4S15P | CLASS II | >60 | ||
|
CPL02-600
|
10-20
|
SMD2835
|
60 | 4S15P | CLASS II | >60 | ||
|
CPL02-800
|
10-20
|
SMD2835
|
60 | 4S15P | CLASS II | >60 | ||
SMD2835 High quality LED wick
Low power consumption and high brightness
SMD LED Chips
Hiah Brightness
200-240V
Efficient Cooling
Service life
Artistic modeling
PC lens and GLASS cover
High pressure die-casting aluminum
Tridonic, Philips, Kegu driver options

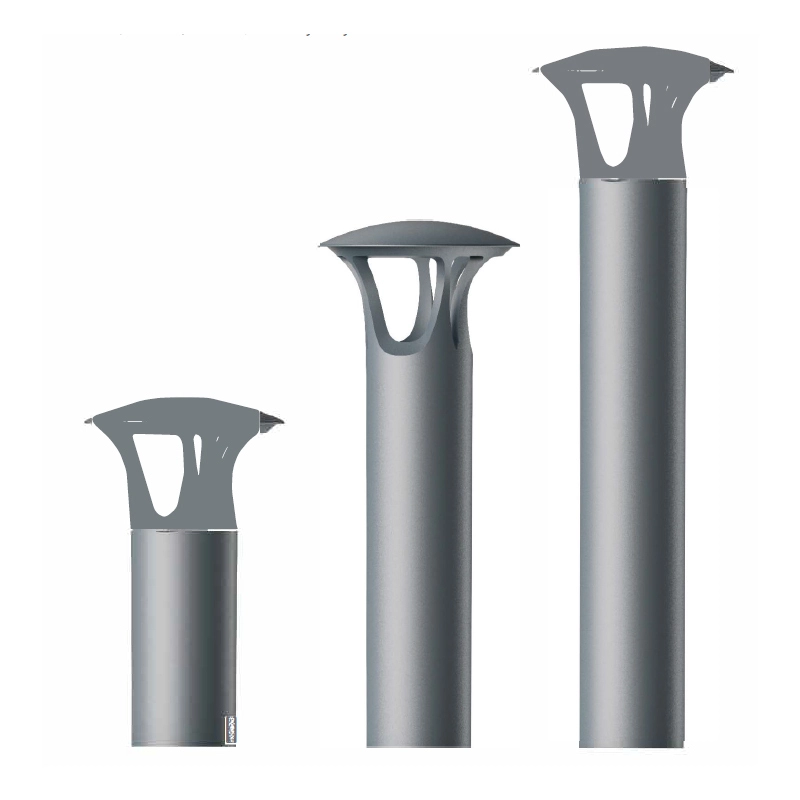

400mm, 600mm, 800mm, 1000mm height optional
Application Scenario
Widely used in outdoor environments such as city parks, country roads, slow lanes, industrial
parks, leisure plazas, and etc.
