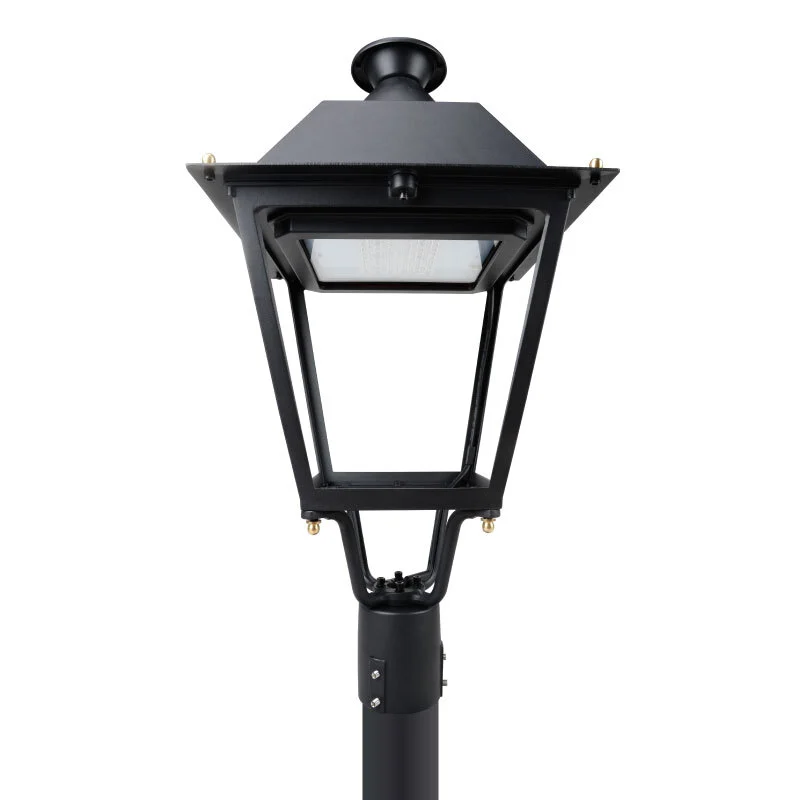

Best Budget CHZ outdoor garden lighting GD01A

MODEL:

CHZ-GD01A

LED CHIPS:

LUMILEDS 5050 / LUMILEDS 3030

COLOR TEMPERATURE:

3000K / 4000K / 5000K / 5700K

DRIVERS:

SOSEN / INVENTRONICS

BEAM ANGLE:

TYPE II TYPE V

REGULATION:

0-10V / Timer / DALI

VOLTAGE:

100 - 277V / 200~240V

POWER FACTOR:

> 0.95

ELECTRICAL CATEGORY:

Class I / Class II

MATERIALS:

AL housing / AL heatsink / PC lens

INSTALLATION:

Ø 60 mm – Ø 40/42/50 mm with adapter (optional)

LIFETIME / WARRANTY:

50,000 hours / 5 years

WORKING ENVIRONMENT:

- 40ºC ~ + 50ºC / 10%-90%RH

PROTECTION(IP - IK - KV):

IP65 - IK08 - 10KV

CERTIFICATIONS:

CE CB ENEC ROHS ISO9001 ISO14001 ISO50001 ISO45001

Inquiry

Write a Review

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Protection Class	Lumen(LM/W)	Size(L×W×H)mm
GD01A-30W	30W	SMD3030	72	9S8P	Class I	>130	D400×815
GD01A-40W	40W	SMD3030	72	9S8P	Class I	>130	D400×815
GD01A-50W	50W	SMD3030	72	9S8P	Class I	>130	D400×815
GD01A-60W	60W	SMD3030	108	9S12P	Class I	>130	D400×815
GD01A-80W	80W	SMD3030	108	9S12P	Class I	>130	D400×815
GD01A-30W	30W	SMD3030	72	9S8P	Class II	>120	D400×815
GD01A-40W	40W	SMD3030	72	9S8P	Class II	>120	D400×815
GD01A-50W	50W	SMD3030	72	9S8P	Class II	>120	D400×815
GD01A-60W	60W	SMD3030	108	9S12P	Class II	>120	D400×815
GD01A-80W	80W	SMD5050	108	9S12P	Class II	>140	D400×815

Product Features

1. GD01A series garden lights combine CHZ patented modular technology and classical outdoor lantern arts. The technology is modern but quaint;

2. CHZ patented module uses LUMILEDS 3030 lamp beads, fully enclosed, waterproof rating up to IP65, good heat dissipation, long life;

3. The module has a maximum power of up to 60W and a maximum luminous efficiency of up to 130LM/W. The GD01a lamps can be fitted with one or two modules.

4. The painted color is black. And it can be white, gray and others according to the request of the clients.

5. Variety of mounting options: lumininaire can be combined with different columns, brackets and multiple-arm brackets.

Best Budget CHZ outdoor garden lighting GD01A 7

Light distribution curve：

Best Budget CHZ outdoor garden lighting GD01A 8

TYPE II

Best Budget CHZ outdoor garden lighting GD01A 9

TYPE V

Best Budget CHZ outdoor garden lighting GD01A 10

Best Budget CHZ outdoor garden lighting GD01A 11

Best Budget CHZ outdoor garden lighting GD01A 12

Applications

Widely used for Main urban roads and streets, side and residential roads and streets, city centers and historical areas, cycle and pedestrian paths, Parking areas, squares, parks and playgrounds and etc.
