    Overview
    Quick Details
    Lighting solutions service:
    DIALux evo layout
    Lamp Luminous Flux(lm):
    3600-7200
    CRI (Ra>):
    80
    Working Temperature(℃):
    -30 - 50
    Working Lifetime(Hour):
    35000
    Lamp Body Material:
    Aluminum Alloy
    IP Rating:
    IP65
    Certification:
    ce, RoHS, CE ROHS
    Place of Origin:
    Shanghai, China
    Brand Name:
    CHZ
    Model Number:
    CHZ-CP CE series (economy)
    Application:
    Office
    Light Source:
    LED
    Warranty(Year):
    3-YEAR
    Product name:
    Led Panel Light
    Lumen(lm/w):
    >90
    Size(mm):
    2*2 FT 4*1 FT 4*2 FT
    Power:
    36W 40W 48W 60W 72W
    Input Voltage(V):
    200-240V
    Luminous Efficacy(lm/w):
    90
    Supply Ability
    Supply Ability:
    200000 Piece/Pieces per Month

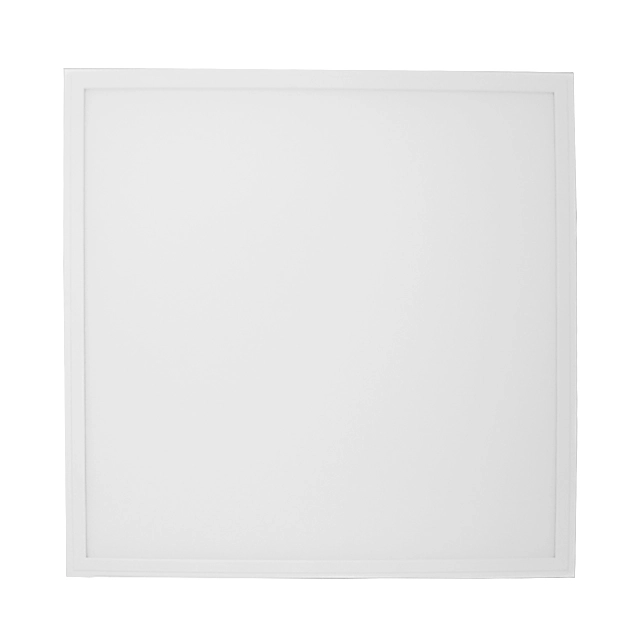

    Product Description

    Aluminum 10w solar panel led street light with factory price

    Aluminum 36w 48w 72wpanel ledlight with factory price 6Aluminum 36w 48w 72wpanel ledlight with factory price 8

    CE approved, cheap price.

    Features:

    1. Overall structure is compact, refined and elegant, highlighting the noble temperament.

    2. Using aluminum alloy frame, oxidation or baking process, simple and elegant appearance; back made of high strength plastic pieces snap, the installation of assembly without tools, which greatly saves time and labor costs.

    Meanwhile, border colors are white, silver two, according to customer demand configuration. Special colors can also be ordered separately.

    3. The installation routine has lifting and embedded, two ways, according to customer needs, configure the appropriate accessories.

    4. Use high quality imported acrylic light guide plate and 4mm PS diffusion plate, high light efficiency, and the light is very uniform, no Obscure.

    5. Use imported high-quality 2835 or 5730 SMD chip, consistency, high luminous efficiency, color temperature 2700K-6500K; while using intelligent constant current driver, no flicker, high conversion efficiency, stable performance, long life.

    Applications:

    Office, gym, schools, hospitals, conference rooms, shopping malls and etc.


    Parameter:

    Model

    CP6060-36W

    CP6060-40W

    CP6060-48W

    CP1230-36W

    CP1230-40W

    CP1230-48W

    CP1260-60W

    CP1260-72W

    Power

    36W

    40W

    48W

    36W

    40W

    48W

    60W

    72W

    Drive type

    Isolated, flash or no flash for option

    Dimming method

    No Dim/0-10V Dim/DALI Dim for option

    Input voltage

    200~240V

    Power factor

    >0.9

    Type of light source

    SMD4014

    Light efficiency (6000K)

    >90 LM/W

    Color rendering index

    >80

    Color temperature

    3000K/4000K/5000K/6000K

    Beam angle

    110°

    Product size mm

    595X595X10.0

    1195X295X10.0

    1195X595X10.0

    Glare value

    UGR>19 or UGR<19 for option

    Installation method

    Embeded, ceiling or suspending mounted for option

    Light guide

    MS2.0

    Diffuser

    PS

    Quality Certification

    ISO9001/CE/ROHS

    Life/warranty period

    35000h/3 years
