CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013
Professional flood light fixtures company for sculpture
MODEL:
CHZ-FL27
LED CHIPS:
LUMILEDS 3030
COLOR TEMPERATURE:
3000K / 4000K / 5000K / 5700K / 6500K
DRIVERS:
SOSEN
BEAM ANGLE:
30°/60°
REGULATION:
0-10V / DALI
VOLTAGE:
100 - 277V
POWER FACTOR:
> 0.95
ELECTRICAL CATEGORY:
Class I Class II
MATERIALS:
AL housing / PC lens
INSTALLATION:
Ø 60 mm
Ø 40 mm
Ø 42 mm
Recessed
Ceiling
Suspended
LIFETIME / WARRANTY:
50,000 hours / 5 years
WORKING ENVIRONMENT:
- 30ºC ~ + 50ºC / 10%-90%RH
SOLAR PANEL:
15-20DAYS
PROTECTION(IP - IK - KV):
IP66 - IK09 - 6KV
LUMEN:
130LM/W
DISCHARGE TEMP:
MS2.0
CONTROL METHOD:
T/T, L/C,Western Union
CERTIFICATIONS:
CB CE TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001
BATTERY:
SHANGHAI PORT

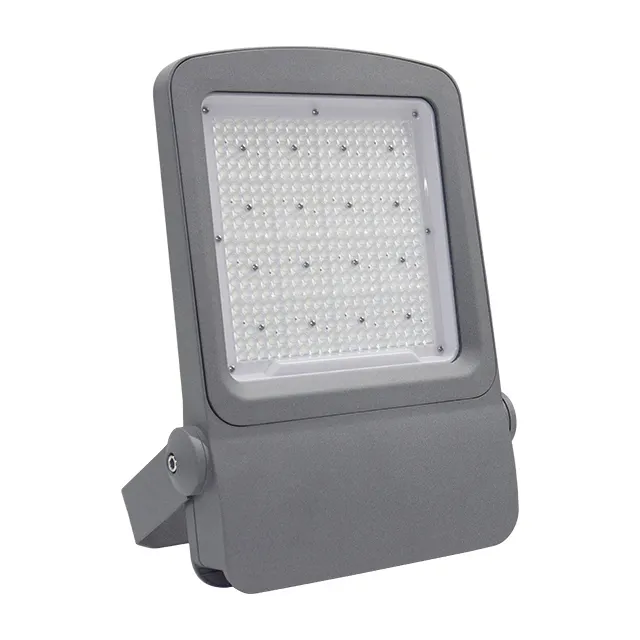

flood light fixtures
description
Our flood light fixtures has the characteristics of strong corrosion resistance, strong impact resistance, good wear resistance and compression resistance, durable and long service life.
flood light fixtures
SPECIFICATIONS
| MODEL | CHZ-FL27 |
|---|---|
| LED CHIPS | LUMILEDS 3030 |
| COLOR TEMPERATURE | 3000K / 4000K / 5000K / 5700K / 6500K |
| LUMEN | 130LM/W |
| DRIVERS | SOSEN |
| BEAM ANGLE | 30°/60° |
| REGULATION | 0-10V / DALI |
| VOLTAGE | 100 - 277V |
| POWER FACTOR | > 0.95 |
| ELECTRICAL CATEGORY | Class I Class II |
| MATERIALS | AL housing / PC lens |
| PROTECTION(IP - IK - KV) | IP66 - IK09 - 6KV |
| LIFETIME / WARRANTY | 50,000 hours / 5 years |
| WORKING ENVIRONMENT | - 30ºC ~ + 50ºC / 10%-90%RH |
| CERTIFICATIONS | CB CE TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001 |
It has a wide light beam angle, which offers enough brightness for certain areas. The mounting type of this product is highly flexible. With high quality LED chips, it can operate for more than 50,000 hours without failure.
