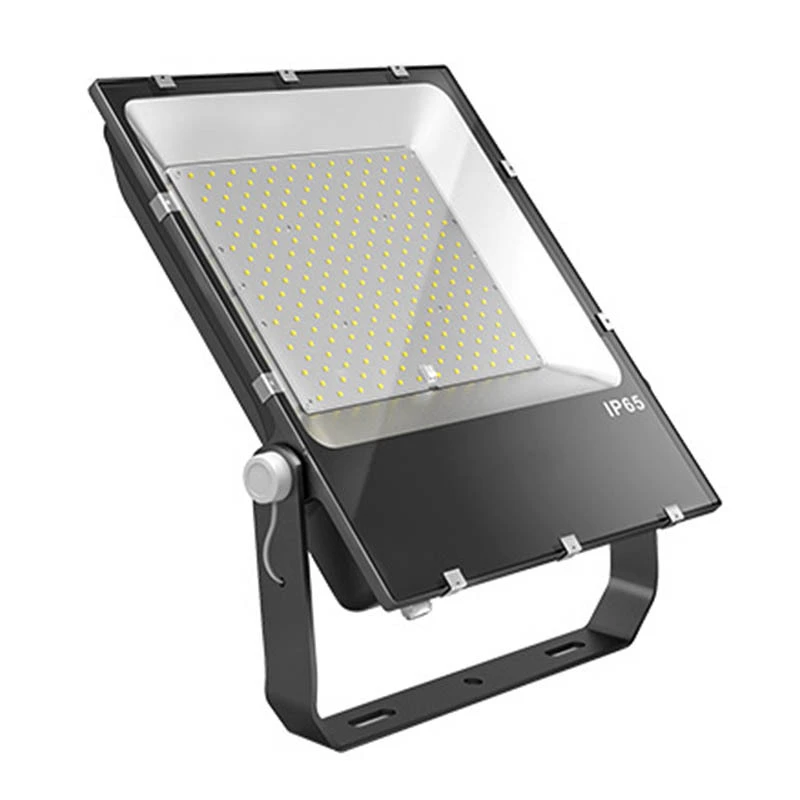

Flood lighting CHZ-FL13 slim china sensor floodlight outdoor ip65 1

Flood lighting CHZ-FL13 slim china sensor floodlight outdoor ip65 2

Flood lighting CHZ-FL13 slim china sensor floodlight outdoor ip65 3

Flood lighting CHZ-FL13 slim china sensor floodlight outdoor ip65 4

Flood lighting CHZ-FL13 slim china sensor floodlight outdoor ip65 5

Flood lighting CHZ-FL13 slim china sensor floodlight outdoor ip65

MODEL:

CHZ-FL13

LED CHIPS:

OSRAM 2835

COLOR TEMPERATURE:

3000K / 4000K / 5000K / 5700K / 6500K

DRIVERS:

SOSEN

BEAM ANGLE:

120°

REGULATION:

0-10V / DALI

VOLTAGE:

100 - 277V

POWER FACTOR:

> 0.95

ELECTRICAL CATEGORY:

Class I Class II

MATERIALS:

AL housing / Glass cover / PC lens

LIFETIME / WARRANTY:

50,000 hours / 5 years

WORKING ENVIRONMENT:

- 30ºC ~ + 50ºC / 10%-90%RH

PROTECTION(IP - IK - KV):

IP65 - IK09 - 6KV

LUMEN:

130LM/W

CERTIFICATIONS:

CB CE TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001

Inquiry

Write a Review

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Size(L×W×H)mm
FL13-100W	100W	SMD2835	200	25S8P	402×295×60
FL13-150W	150W	SMD2835	300	25S12P	430×330×60
FL13-200W	200W	SMD2835	400	25S16P	470×360×60

Product Feature

1.High quality LED light source and the constant current drive, high luminous efficiency;

2.Slim light body design, elegant appearance, the drag coefficient is small;

3.Emitting area, fast heat dissipation, even soft light, low glare;

4.Overall service life of over 50,000 hours, low maintenance cost;

5.Compared to conventional lamps, saving more than 50%, widely used to replace traditional lamps.

Flood lighting CHZ-FL13 slim china sensor floodlight outdoor ip65 6

Flood lighting CHZ-FL13 slim china sensor floodlight outdoor ip65 7

Flood lighting CHZ-FL13 slim china sensor floodlight outdoor ip65 8

Applications

Widely used in shopping mall, exhibition hall, parking lot, playground gymnasium, billboards, park, sculpture, national green lighting project, building facade and public corridor, stair corridor and other indoor and outdoor lighting.
