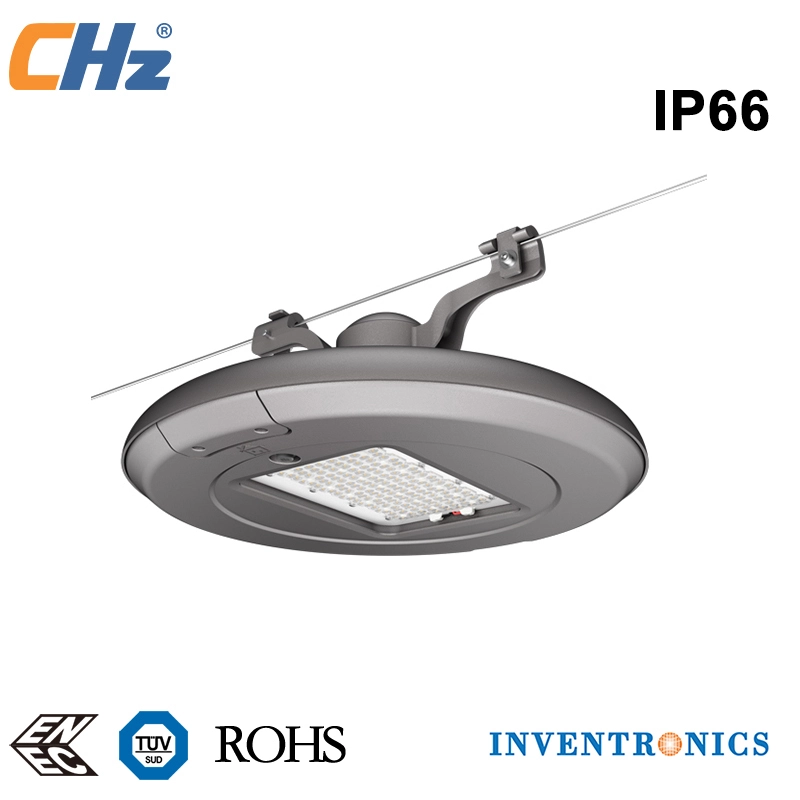

Street lighting CHZ-ST26D round led street lamp
Parameters
| Model No. | Power(W) | Chips | Chips Qty | Chips S/P | Protection Class | Lumen(LM/W) | Size(L×W×H)mm |
| ST26-27WD | 27 | SMD3030 | 72 | 9P8S | CLASS II | >130 | 480×480×240 |
| ST26-37WD | 37 | SMD3030 | 96 | 12P8S | CLASS II | >130 | 480×480×240 |
| ST26-56WD | 56 | SMD3030 | 120 | 15P8S | CLASS II | >130 | 480×480×240 |
| ST26-70WD | 70 | SMD3030 | 144 | 12P12S | CLASS II | >130 | 480×480×240 |
| ST26-80WD | 80 | SMD3030 | 144 | 12P12S | CLASS II | >130 | 480×480×240 |
| ST26-27WD | 27 | SMD5050 | 72 | 9P8S | CLASS II | >140 | 480×480×240 |
| ST26-37WD | 37 | SMD5050 | 96 | 12P8S | CLASS II | >140 | 480×480×240 |
| ST26-56WD | 56 | SMD5050 | 120 | 15P8S | CLASS II | >140 | 480×480×240 |
| ST26-70WD | 70 | SMD5050 | 144 | 12P12S | CLASS II | >140 | 480×480×240 |
| ST26-80WD | 80 | SMD5050 | 144 | 12P12S | CLASS II | >140 | 480×480×240 |
CHZ-ST26D Feature
A. Overall aluminum die casting, heat sink fins, good heat dissipation.
B. Use UL standard lock, the overall structure is compact, sophisticated design work;
C. Metal connecting portion, all stainless steel, corrosion-resistant, durable;
D. Professional lens design, 5 different angles for different lighting requirements of the road;
E. Using PHILIPS3030 LED chip, stable overall performance, long life of 60,000 hours above.
F. With CLASS II elcetrical protection degree, widely used to pend between two buildings, without poles.
Light Distreiutions
★ Pendent Mounted 丨 Side Entry Mounted 丨 Suspended Mounted
★ Post Pot Mounted
A
Applications
Widely used for old city road lighting updation, no need to install pole, safe and cost-saving.
Package diagram：
