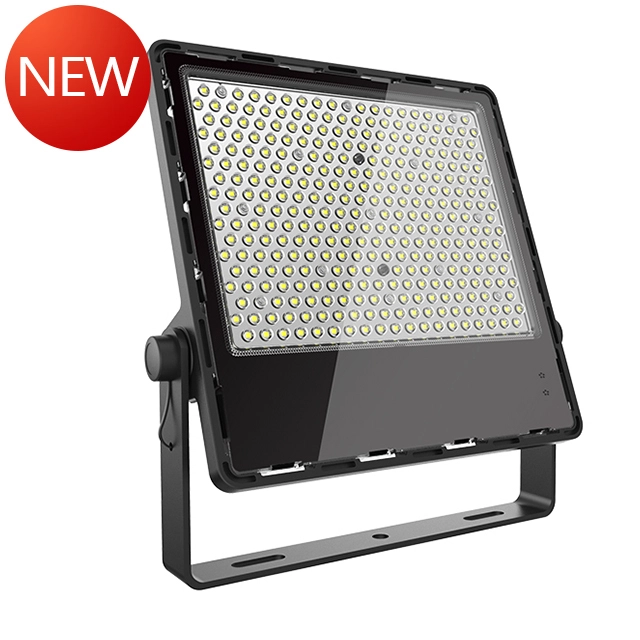

SMD chips Waterproof 200w led flood lightfor tennis court lighting
- Input Voltage(V):
-
AC200-240V
- CRI (Ra>):
-
70
- Beam Angle(°):
-
90°
- Working Lifetime(Hour):
-
35000
- Lamp Body Material:
-
PC
- IP Rating:
-
IP66
- Certification:
-
ce, RoHS
- Place of Origin:
-
Shanghai, China
- Brand Name:
-
CHZ
- Model Number:
-
CHZ-FL18 -200W
- Application:
-
Garden
- Light Source:
-
LED
- Lamp Luminous Flux(lm):
-
10000
- Working Temperature(℃):
-
-20℃~+50℃
- Warranty(Year):
-
3-YEAR
- LED Chip:
-
SMD 2835
- Lumen:
-
100lm/w
- Power Factor:
-
PF>0.9
- CCT:
-
4000K
- RA:
-
>70
- Lighting Protection:
-
4KV
- Working Humidity:
-
10%~90%
- Warranty:
-
35000hrs/3years
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 36X39X47 cm
- Single gross weight:
- 4.000 kg
- Package Type:
- CARTON PACKING
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 1 2 - 10 >10 Est. Time(days) 7 10 To be negotiated
SMD chips Waterproof 200w led flood lightfor tennis court lighting
Features:
Die-cast aluminum lamp body, shell engineering plastic, economical and exquisite;
Adjustable mounting bracket for easy adjustment of angle and good light output; protection level up to IP65;
With high-quality SMD 3030 chip, high luminous efficiency, long life; at the same time, the configuration of high-quality intelligent constant current drive, work stability, high conversion efficiency, long life;
With tempered glass mask, high light transmittance, low glare and strong comfort;
The conventional spray color of the shell is black, and other colors have a certain amount of requirements.
Applications:
Suitable for outdoor lighting such as building flooding, billboards, gardens, hotels, parking lots, etc.
Parameters:
Model | FL18-30W | FL18-50W | FL18-70W | |
Power | 30W | 50W | 70W | |
LED`s | 90 PCS | 180 PCS | 234 PCS | |
Connection | 10S5P | 16S5P | 20S5P | |
Model | FL18-100W | FL18-150W | FL18-200W | |
Power | 100W | 150W | 200W | |
LED type | SMD 2835 | SMD 2835 | SMD 2835 | |
LED`s | 312 PCS | 252 PCS | 312 PCS | |
Connection | 30S5P | 30S5P | 40S6P | |
Drive type | AC linear | AC linear | AC linear | |
Input Volt | 200-240V | 200-240V | 200-240V | |
PF | >0.90 | >0.90 | >0.90 | |
Lumen(Lm/W) | >85 | >85 | >85 | |
CCT | 3000-6500K | 3000-6500K | 3000-6500K | |
RA | >70 | >70 | >70 | |
Beam angle | 90° | 90° | 90° | |
Protection level | IP65 | IP65 | IP65 | |
Anti-surge rating | Withstand voltage 4KV, Surge protection 2.5KV | Withstand voltage 1.5KV, Surge protection 1.0KV | ||
Light body material | Polymer Composites + Tempered Glass + Respirator | Polymer Composite + Aluminum Radiator + Tempered Glass + Respirator | ||
Work temp | —20℃~+50℃ | |||
Work humidity | 10%~90% | |||
Life/Warranty | 35,000hrs / 3Years | |||
PACKAGE:
1. Standard packages of CHZ brand; 2. According to customer's requirement.
DELIVERY TIME:
5-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
1. What are your market reach throughout the regiion?
Our markets around the world in every corner, we have many years of experience in foreign trade.Our clients are from different countries. And we have branch office in Spain and Nigeria.
2. Whar are your main products?
Our main products are led outdoor lightings including led flood light( stadium lighting), led high bay light, led street lighting and led garden light.
3. Are you a manufactuer or a trading company?
We are a professional LED manufacturer.
4. Do you have the ability to do independent research and development?
Our engineering department have the research and development capabilities. We also collect regular customer feedback to research new product.
5. How to contact you?
Welcome to vist our websit (www.chz-lighting.com) to get more information.
