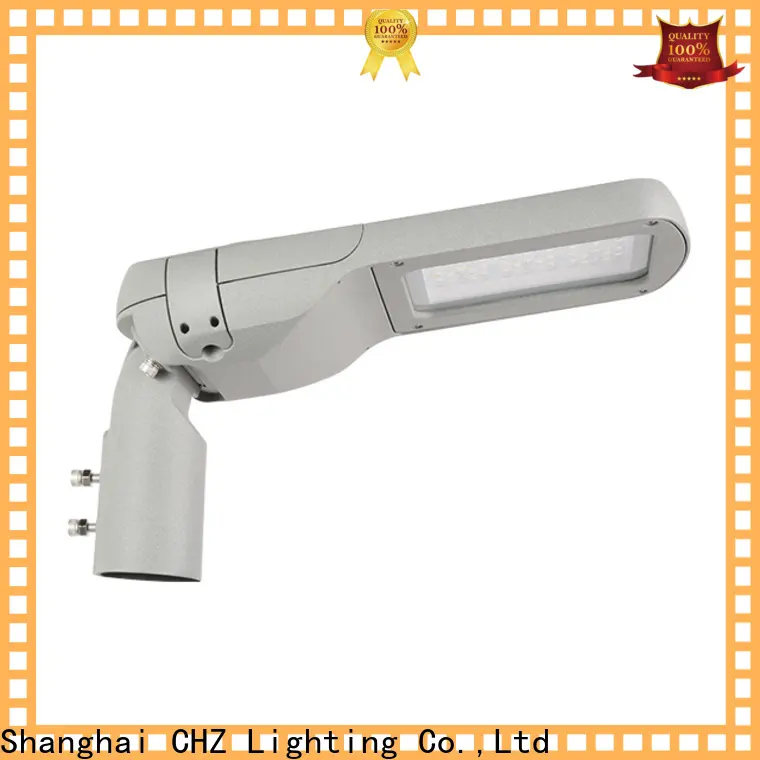

Professional street light led lighting luminaires with input voltage 220vac ,50 hz
Professional street light led lighting luminaires with input voltage 220vac ,50 hz![Professional street light led lighting luminaires with input voltage 220vac ,50 hz]()
![Professional street light led lighting luminaires with input voltage 220vac ,50 hz]()
![Professional street light led lighting luminaires with input voltage 220vac ,50 hz]()
Parameter:
Model | ST29-30WMi | ST29-40WMi | ST29-50WMi |
Power | 30W | 40W | 50W |
LED`s | 72PCS | 72PCS | 72PCS |
Connection | 6S12P | 6S12P | 6S12P |
Model | ST29-60WS | ST29-80WS | ST29-100WS |
Power | 60W | 80W | 100W |
LED`s | 144PCS | 144PCS | 144PCS |
Connection | 8S18P | 8S18P | 8S18P |
Model | ST29-100WM | ST29-120WM | ST29-150WM |
Power | 100W | 120W | 150W |
LED`s | 192PCS | 192PCS | 192PCS |
Connection | 8S24P | 8S24P | 8S24P |
Model | ST29-160WL | ST29-180WL | ST29-200WL |
Power | 160W | 180W | 200W |
LED`s | 240PCS | 240PCS | 240PCS |
Connection | 8S30P | 8S30P | 8S30P |
LED type | SMD 3030 | ||
Lumen(Lm/W) | >130LM/W | ||
CCT | 3000K/4000K/5000K/5700K,According to the actual needs of customers | ||
Beam angle | 117°x 52° | ||
RA | >70 or >80,According to the actual needs of customers | ||
Drive type | 100-277V | ||
Input Volt | >0.95 | ||
PF | MW, INVENTRONICS or other, according to customer needs | ||
control method | Ordinary, 0-10V, PMW, DALI and other intelligent controls, according to customer's actual needs | ||
Product Size | 794x320x122mm | ||
Light body material | Die-casting aluminum lamp body + tempered glass cover +304 stainless steel screws | ||
Light shell spraying | Gray, black or white | ||
Installation diameter | D60mm | ||
Protection level | IP66/IK09 | ||
Lightning protection level | 10KV or 20KV, according to the actual needs of customers | ||
Work temp | —35℃~+50℃ | ||
Work humidity | 10%~90% | ||
Life/Warranty | 50,000hrs / 5 Years | ||
FAQ:
1. What are your market reach throughout the regiion?
Our markets around the world in every corner, we have many years of experience in foreign trade.Our clients are from different countries. And we have branch office in Spain and Nigeria.
2. Whar are your main products?
Our main products are led outdoor lightings including led flood light( stadium lighting), led high bay light, led street lighting and led garden light.
3. Are you a manufactuer or a trading company?
We are a professional LED manufacturer.
4. Do you have the ability to do independent research and development?
Our engineering department have the research and development capabilities. We also collect regular customer feedback to research new product.
5. How to contact you?
Welcome to vist our websit (www.chz-lighting.com) to get more information.
