    Overview
    Quick Details
    Lighting solutions service:
    DIALux evo layout
    Light Source:
    LED
    Lamp Luminous Flux(lm):
    130
    CRI (Ra>):
    70
    Working Temperature(℃):
    -30℃~+60℃
    IP Rating:
    IP66
    Certification:
    ce, RoHS
    Warranty(Year):
    5-Year
    Place of Origin:
    Shanghai, China
    Brand Name:
    CHZ
    Model Number:
    CHZ-ST33
    Beam Angle(°):
    145°x80°
    Application:
    ROAD
    Color:
    Black, Dark Grey, Light Grey, Other, 3000K/4000K/5000K/5700K/6500K
    Power Supply:
    AC
    Power:
    40w 60w 80w 100w 120w 150w 180w 200w
    Led chips:
    smd 3030
    PF:
    >0.95
    Driver:
    MW, INVENTRONICS or other
    Dimming:
    original, 0-10V, PMW, DALI
    Material:
    die-cast aluminum
    IP & IK:
    IP66 IK09
    MOQ:
    1PC
    Input Voltage(V):
    100-277V
    Working Lifetime(Hour):
    50000
    Luminous Efficacy(lm/w):
    130
    Supply Ability
    Supply Ability:
    20000 Piece/Pieces per Month
    Product Description

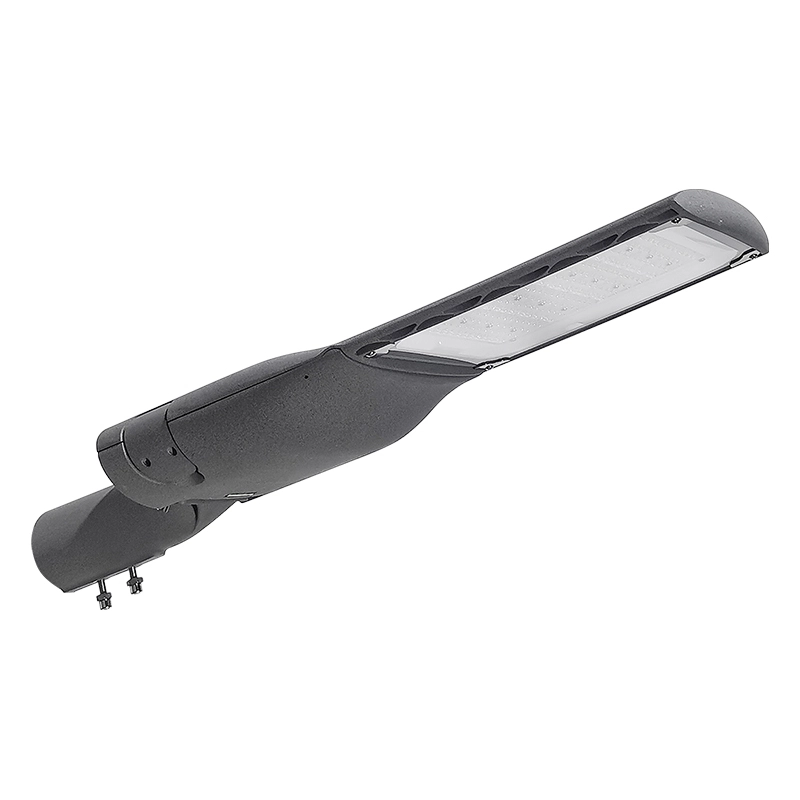

    NEW ORIGINAL led light sensor 220v outdoor lamp made in China

    Specifition of led street lights CHZ-ST33:

    Model

    ST33-40W

    ST33-60W

    ST33-80W

    ST33-100W

    Rated power

    40W

    60W

    80W

    100W

    Lamp Bead Type

    SMD 3030

    SMD 3030

    SMD 3030

    SMD 3030

    Number of lamp beads

    96PCS

    96PCS

    192PCS

    192PCS

    Serial-parallel

    12P8S

    12P8S

    24P8S

    24P8S

    Light effect

    >130LM/W

    >130LM/W

    >130LM/W

    >130LM/W

    Product Size

    644x220x108mm

    644x220x108mm

    719x270x109mm

    719x270x109mm

    Model

    ST33-120W

    ST33-150W

    ST33-180W

    ST33-200W

    Rated power

    120W

    150W

    180W

    200W

    Lamp Bead Type

    SMD 3030

    SMD 3030

    SMD 3030

    SMD 3030

    Number of lamp beads

    192PCS

    192PCS

    320PCS

    320PCS

    Serial-parallel

    24P8S

    24P8S

    40P8S

    40P8S

    Light effect

    >130LM/W

    >130LM/W

    >130LM/W

    >130LM/W

    Product Size

    719x270x109mm

    719x270x109mm

    773x320x109mm

    773x320x109mm

    Color temperature

    3000K/4000K/5000K/5700K/6500K,based on customer's needs

    Beam angle

    145°x80°

    Color rendering

    CRI > 70

    Operating Voltage

    100-277V

    Power factor PF

    >0.95

    Drive type

    MW, INVENTRONICS or others, according to customer needs

    Dimming method

    Normal, 0-10V, PMW, DALI and other intelligent control, according to the actual needs of customers; can also be installed with light controller

    Light body material

    Die-cast aluminum lamp body + PC lens + tempered glass + 304 stainless steel screws

    Installation pipe diameter

    D60mm

    Protection class

    IP66/IK09

    Lightning protection level

    10KV or 20KV

    Operating temperature

    -30℃~+60℃

    Working humidity

    10%~90%

    Life / warranty

    50,000hrs/5 Years
