New design 30w street led light bajaj supplier
New design 30w street led light bajaj supplier

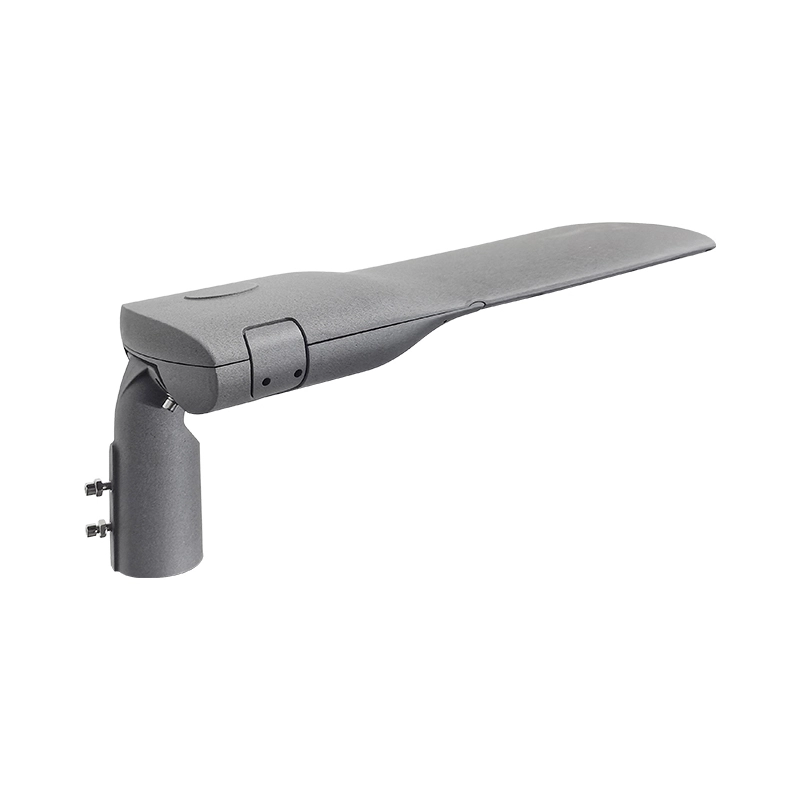

Specifition of led street lights CHZ-ST33:
Model | ST33-40W | ST33-60W | ST33-80W | ST33-100W |
Rated power | 40W | 60W | 80W | 100W |
Lamp Bead Type | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 |
Number of lamp beads | 96PCS | 96PCS | 192PCS | 192PCS |
Serial-parallel | 12P8S | 12P8S | 24P8S | 24P8S |
Light effect | >130LM/W | >130LM/W | >130LM/W | >130LM/W |
Product Size | 644x220x108mm | 644x220x108mm | 719x270x109mm | 719x270x109mm |
Model | ST33-120W | ST33-150W | ST33-180W | ST33-200W |
Rated power | 120W | 150W | 180W | 200W |
Lamp Bead Type | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 |
Number of lamp beads | 192PCS | 192PCS | 320PCS | 320PCS |
Serial-parallel | 24P8S | 24P8S | 40P8S | 40P8S |
Light effect | >130LM/W | >130LM/W | >130LM/W | >130LM/W |
Product Size | 719x270x109mm | 719x270x109mm | 773x320x109mm | 773x320x109mm |
Color temperature | 3000K/4000K/5000K/5700K/6500K,based on customer's needs | |||
Beam angle | 145°x80° | |||
Color rendering | CRI > 70 | |||
Operating Voltage | 100-277V | |||
Power factor PF | >0.95 | |||
Drive type | MW, INVENTRONICS or others, according to customer needs | |||
Dimming method | Normal, 0-10V, PMW, DALI and other intelligent control, according to the actual needs of customers; can also be installed with light controller | |||
Light body material | Die-cast aluminum lamp body + PC lens + tempered glass + 304 stainless steel screws | |||
Installation pipe diameter | D60mm | |||
Protection class | IP66/IK09 | |||
Lightning protection level | 10KV or 20KV | |||
Operating temperature | -30℃~+60℃ | |||
Working humidity | 10%~90% | |||
Life / warranty | 50,000hrs/5 Years | |||
FAQ:
1. What are your market reach throughout the regiion?
Our markets around the world in every corner, we have many years of experience in foreign trade.Our clients are from different countries. And we have branch office in Spain and Nigeria.
2. Whar are your main products?
Our main products are led outdoor lightings including led flood light( stadium lighting), led high bay light, led street lighting and led garden light.
3. Are you a manufactuer or a trading company?
We are a professional LED manufacturer.
4. Do you have the ability to do independent research and development?
Our engineering department have the research and development capabilities. We also collect regular customer feedback to research new product.
5. How to contact you?
Welcome to vist our websit (www.chz-lighting.com) to get more information.
