    Overview
    Quick Details
    Lighting solutions service:
    DIALux evo layout
    CRI (Ra>):
    70
    Beam Angle(°):
    15°/30° 45°/60°
    Working Lifetime(Hour):
    50000
    Lamp Body Material:
    Aluminum
    IP Rating:
    IP66
    Certification:
    ce, RoHS
    Place of Origin:
    Shanghai, China
    Brand Name:
    CHZ
    Model Number:
    CHZ-FL28
    Application:
    Sports Stadiums
    Light Source:
    LED
    Lamp Luminous Flux(lm):
    78400
    Working Temperature(℃):
    -40℃~+50℃
    Warranty(Year):
    5-Year
    Power:
    280W 560W 840W
    LED Type:
    SMD3030
    control method:
    Conventional/0-10V/DALI
    Power factor:
    PF>0.95
    Light effect:
    >140Lm/W
    Color temperature:
    4000K-5700K
    Lamp body material:
    Die-cast aluminum lamp body + PC lens
    Protection level:
    IP66/IK10/10KV
    Working humidity:
    10%~90%
    Service life:
    Service life
    Input Voltage(V):
    AC 100-277V 50/60HZ
    Luminous Efficacy(lm/w):
    140
    Supply Ability
    Supply Ability:
    20000 Piece/Pieces per Month
    Product Description

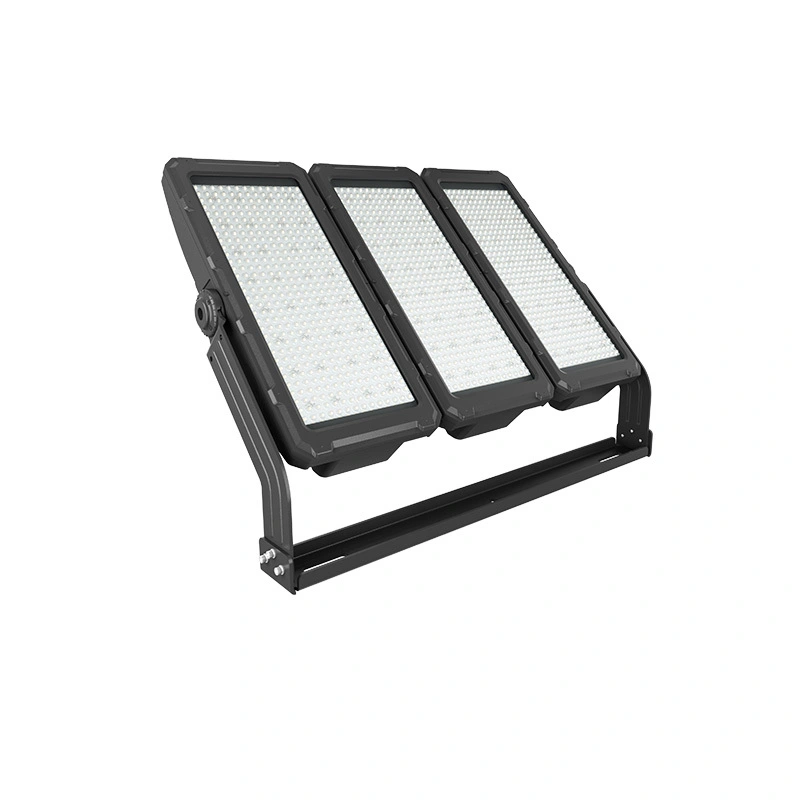

    Manufactory Wholesale light led flood lens ledflood With Cheap Prices

    Manufactory Wholesale light led flood lens ledflood With Cheap Prices 7Manufactory Wholesale light led flood lens ledflood With Cheap Prices 9Manufactory Wholesale light led flood lens ledflood With Cheap Prices 11

    Parameter:

    Model

    FL28-280W1

    FL28-560W2

    FL28-840W3

    Power

    280W

    560W

    840W

    LED Type

    SMD3030

    SMD3030

    SMD3030

    Number of beads

    1x448

    2x448

    3x448

    Serialization

    1*56P8S

    2*56P8S

    3*56P8S

    Light source voltage

    48V

    48V

    48V

    Operating Voltage

    AC100-277V 50/60HZ

    control method

    Conventional/0-10V/DALI

    Power factor

    PF>0.95

    Light effect

    >140Lm/W

    Color temperature

    4000K-5700K

    Color rendering

    RA>70

    Beam angle

    15°/30° 45°/60°, for options

    Protection level

    IP66

    Lamp body size

    320x687x222mm

    578x687x222mm

    836x687x222mm

    Lamp body material

    Die-cast aluminum lamp body + PC lens

    Lamp body color

    Regular black, can be customized according to customer requirements (quantity requirements)

    Protection level

    IP66/IK10

    Surge prevention level

    10KV

    Operating temperature

    —40~+50

    Working humidity

    10%~90%

    Service life

    50,000hr


    Related Products
    Manufactory Wholesale light led flood lens ledflood With Cheap Prices 13
    Manufactory Wholesale light led flood lens ledflood With Cheap Prices 15
    Manufactory Wholesale light led flood lens ledflood With Cheap Prices 17
    Manufactory Wholesale light led flood lens ledflood With Cheap Prices 19
    Certifications

    OUR CERTIFICATES

    Manufactory Wholesale light led flood lens ledflood With Cheap Prices 21
    PROJECTS

    Manufactory Wholesale light led flood lens ledflood With Cheap Prices 23

    Company Information
    Manufactory Wholesale light led flood lens ledflood With Cheap Prices 25

    ABOUT US

    Shanghai CHZ Lighting Technology Co., Ltd. was established in 2010, is one of leading manufacturer of LED lighting products in China with a total area of 10,000m2 plus.We have got a few patents and lots of quality certifications, such as CE, ROHS, ERP, TUV, CB, SAA, UL, CUL, DLC and etc. Meanwhile, our company passed ISO9000 and ISO 14000 system certification. After years of development, "CHZ" has gradually become one well-known brand in this field.

     CHZ is worthy of your trust and CHZ is your best choice!

    Packaging & Shipping

       PACKAGE:

    1. Standard packages of CHZ brand;  2. According to customer's requirement.

    DELIVERY TIME:

    5-20 days after confirming order,detail delivery date should be decided according to
    production season and order quantity.

    Manufactory Wholesale light led flood lens ledflood With Cheap Prices 27
    FAQ

    FAQ

    1. What is a general business process?

    Answer: Send inquiry to CHZ→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service



    2. What is the warranty?

    A: According to different types of lamps, a 5-7 year warranty is provided. If the product fails during the warranty period due to quality problems, we will immediately send out new replacements and freight charges in case of emergency. Or, we prefer to send a replacement for the next order.



    3. What is the payment period?

    A: For sample orders, we can accept wire transfer 100% in advance, PayPal, Western Union. For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment. For large orders, letters of credit


    3. What is the payment term?
    Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.

    4. Can I add my logo on the product label?
    Answer : Yes, but order quantity is requested depending on different lights.

    5. I don't know which sty how many LED Street Light should I use, can you advise?
    Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.

    6. Do you have any MOQ limit for led light order?
    Answer: Low MOQ, 1pc for sample checking is available .

    7. How do you ship the goods and how long does it take to arrive?
    Answer: We usually ship samples and small quantities of products that customers need urgently with DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. High-volume product transportation is available for airline or maritime transportation. The shipping time is updated according to the actual situation of the shipping company.

    8. We don't know how to install,can you help?
    Answer : We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.

    9. How to deal with the faulty?
    Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send out new replacement to you immediately for you to solve the problem.



    10. It is not convenient for us to visit your company in China, but what if you want to know the strength of your company in more detail?
    Answer : You can visit us by visiting our foreign branches. We have teams and warehouses in Spain, USA, Nigeria and Nicaragua can provide you with comprehensive pre-sales and after-sales protection. You can also pay attention to it through our official website and the FACEBOOK homepage .

    The product gives out a sense of natural beauty, artistic appeal, and the indefinite freshness, which seems to bring an overall upgrade of the room. With light source well encapsulated, it has high safety performance. The product is very breathable to wear, without absorbing the smelly sweat. It makes people stay cool for a whole day. With light source well encapsulated, it has high safety performance.
