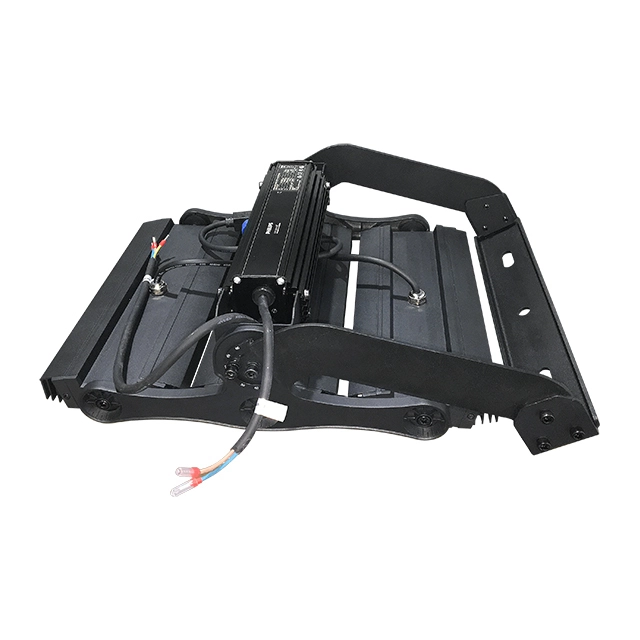

Factory high quality led stadium flood lighting light for tennis court
Factory high quality led stadium flood lighting light for tennis court
Features:
Adjustable projecting direction to get precious aiming;
Beam angle 45°/60° /90° for option, deliver precise circular pattern into certer of sports lighting field from corne high mast, which offers solution especially for soccer/hockey/football field;
Use ultra-high brightness smd3030 chips which can be up to 140lm/w;
Each module can be ange adjustable flexiblely, so it can be used for more applications.
Stainless steel wireguard is designed to protect the fixture from hitting by high-speed objects.
With 10KV surge protection and stainless steel chain for further protection on request.
Applications:
Widely used in large space lighting places exhibition center, large warehouses, soccer or football field, indoor stadiums and etc.
Parameter:
Model | FL21-150W | FL21-220W | FL21-300W | FL21-450W | |
Power | 150W | 220W | 300W | 450W | |
LED type | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 | |
LED`s | 224PCS | 336PCS | 448PCS | 672PCS | |
Connection | 2*(16P7S) | 3*(16P7S) | 2*(32P7S) | 3*(32P7S) | |
Chips Volt | 42V | 42V | 42V | 42V | |
Lumen(Lm/W) | >145 | >145 | >145 | >145 | |
Product size(mm) | 341x286x185 | 346x380x227 | 613x286x185 | 618x384x227 | |
Model | FL21-150W | FL21-220W | FL21-300W | FL21-450W | |
Power | 150W | 220W | 300W | 450W | |
LED type | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 | |
LED`s | 224PCS | 336PCS | 448PCS | 672PCS | |
Connection | 2*(16P7S) | 3*(16P7S) | 2*(32P7S) | 3*(32P7S) | |
Chips Volt | 42V | 42V | 42V | 42V | |
Input Volt | 100-277V | ||||
control method | Conventional/0-10V/DALI | ||||
PF | >0.95 | ||||
Lumen(Lm/W) | >135 | >135 | >135 | >135 | |
CCT | 4000K/5000K/5700K | ||||
RA | >80 | ||||
Beam angle | 40°/60°/90°, for options | ||||
IP | IP66 | ||||
Product size(mm) | 341x286x185 | 346x380x227 | 613x286x185 | 618x384x227 | |
Light material | Die-cast aluminum body + PC lens | ||||
Lamp body color | Regular black, gray, can be customized according to customer requirements (quantity requirements) | ||||
Protection level | IP66/IK08/10KV | ||||
Work temp | —40℃~+50℃ | ||||
Work humidity | 10%~90% | ||||
Life/Warranty | 50,000hrs / 5Years | ||||
