CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 1

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 2

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 3

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 4

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 5

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 6

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 7

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 8

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 9

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 10

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum 11

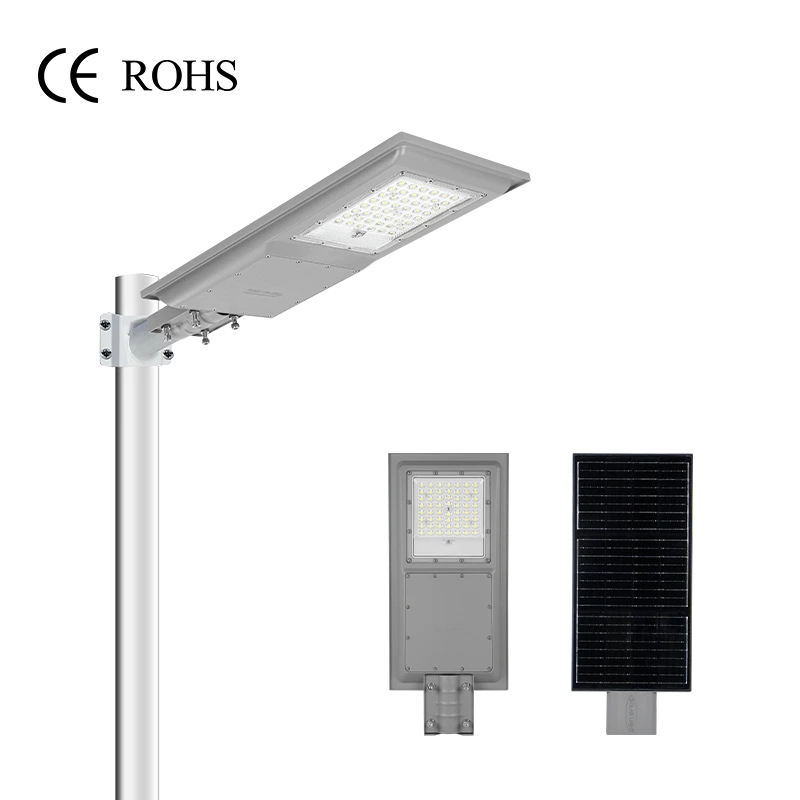

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum

MODEL:	CHZ-SRL03
LED CHIPS:	SMD5054
COLOR TEMPERATURE:	6000K / 6500K
LUMEN:	80-100LM/W
VOLTAGE:	6V
BEAM ANGLE:	90°
SOLAR PANEL:	Monocrystalline
ON HOURS:	10-12hours/day
MATERIALS:	Dia-cast Aluminum
DISCHARGE TEMP:	- 30ºC ~ + 60ºC
LIFETIME / WARRANTY:	30,000 hours / 3 years
WORKING ENVIRONMENT :	- 20ºC ~ + 45ºC / 10%-90%RH
CERTIFICATIONS:	CE ROHS ISO9001 ISO14001 ISO50001 ISO45001

Inquiry

Write a Review

Product Description

CHZ-SRL03 Solar Street Lights CE ROHS Certified High Power 100W 200W 300W IP65 Waterproof Die-Cast Aluminum

1. Four dimming modes: 1) Low brightness 2) Medium brightness 3) High brightness.

2. LiFePO4 battery, the discharge depth reaches 95% and service lifespan up to 3 years, with high safety factor.

3. Low voltage led with high lumen efficiency.

4. Optical PC lens, luminous efficiency up to 95%.

5. High quality aluminum housing, anti-corrosion, durable, artistic, practical. High tech and fine craftmanship highlights product value.

6. Innovative designed reflector, high reflection efficiency, greatly enhance the brightness of the lumination.

With Default "Sleep Mode" for longer battery back up time, easy and simple for a "Wake-up" activation, Reasonable designed Discharging time ensure the first 4 hours running in high brightness. AUTO lighting system with remote for ON/OFF and lighting duration, brightness control.

Model No.	Power(W)	Chips	Solar Panel	Battery	Color Temp	Lumen(LM/W）
SRL03-100W	100	SMD5054	6V/10W	3.2V/10AH	6000K/6500K	＞80Lm/W
SRL03-200W	200	SMD5054	6V/20W	3.2V/20AH	6000K/6500K	＞80Lm/W
SRL03-300W	300	SMD5054	6V/30W	3.2V/30AH	6000K/6500K	＞80Lm/W

SMD5054 High quality LED wick

Low power consumption and high brightness

SMD LED Chips

Hiah Brightness

3.2V

Efficient Cooling

Service life

High quality aluminum housing

Lumileds lens and PC lens

Monocrystalline silicon solar panel Pouch Cell Battery

Remote control

Pole mounted

Application Scenario

Widely used in trunk roads, highways, elevated roads, streets, bridges, sidewalks and other road lighting, as well as squares, schools, parks and other outdoor lighting needs.
