CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013
CHZ rohs approved led road light inquire now on sale
1. CHZ is manufactured according to the international advanced production practice - lean production and by use of internationally-sourced high-quality materials. This product is made in line with the "green low carbon" proposed by the state
2. Shanghai CHZ Lighting Co.,Ltd's excellent sales group is full of foreign sales experience. It is able to work under humidity ranging from 10% to 90
3. The product features low energy consumption. The ingenious circuit design is able to minimize losses due to transient currents during switching. It is able to run under extra-low voltage

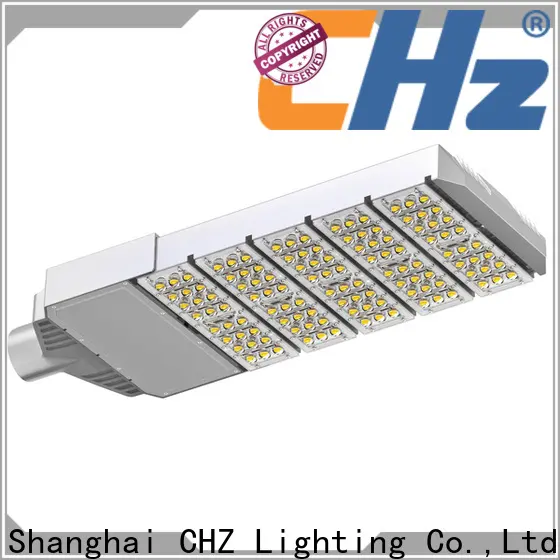

High efficiency 5 years warranty 135lm/w aluminum led street light outdoor 200watt
Product descriptions of led street light:
1.Overall aluminum die casting, heat sink fins, good heat dissipation;greatly
extend the life of the light source.
2.Design of avoiding dust and water,reduce pressure of cleaning and
Maintenance, Suitable for outdoor use.
3.Ultra-thin patent appearance design structure, Convenient storage
transportation and maintenance.
4.IP rating up to IP66.
5.Shell by paint and anodizing treatment, strong corrosion resistance.
Technical parameters of led street light:
Model | ST13-40W | ST13-80W | ST13-120W | ST13-160W | ST13-200W |
Power | 40W | 80W | 120W | 160W | 200W |
LED type | SMD 3030 | ||||
LED Qty | 56 PCS | 112 PCS | 168 PCS | 224 PCS | 280 PCS |
Connection | 1*(8P7S) | 2*(8P7S) | 3*(8P7S) | 4*(8P7S) | 5*(8P7S) |
Chips Volt | 42V | 42V | 42V | 42V | 42V |
Input Volt | 100-277V | 100-277V | 100-277V | 100-277V | 100-277V |
Power factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
Lumen | >135LM/W | >135LM/W | >135LM/W | >135LM/W | >135LM/W |
Product size(mm) | 423x292x60 | 495x292x60 | 587x292x60 | 679x292x60 | 771x292x60 |
Model | ST13-50W | ST13-100W | ST13-150W | ST13-200W | ST13-250W |
Power | 50W | 100W | 150W | 200W | 250W |
LED type | SMD 3030 | ||||
LED Qty | 70 PCS | 140 PCS | 210 PCS | 280 PCS | 350 PCS |
Connection | 1*(10P7S) | 2*(10P7S) | 3*(10P7S) | 4*(10P7S) | 5*(10P7S) |
Chips Volt | 42V | 42V | 42V | 42V | 42V |
Input Volt | 100-277V | 100-277V | 100-277V | 100-277V | 100-277V |
Power factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
Lumen | >130LM/W | >130LM/W | >130LM/W | >130LM/W | >130LM/W |
Product size(mm) | 423x292x60 | 495x292x60 | 587x292x60 | 679x292x60 | 771x292x60 |
Color Temp | 3000-6500K | ||||
Color Render | >70 | ||||
Beam angle | 145° x 80° | ||||
Light material | Die-cast AL body+PC lens | ||||
Protection degree | IP66&IK08 | ||||
Work Temp | —30℃~+50℃ | ||||
Work Humidity | 10%~90% | ||||
Lifetime/Warranty | 50,000hrs / 5 Years | ||||
Company Features
1. As an expert in producing led road light , Shanghai CHZ Lighting Co.,Ltd has transcended most other peer manufacturers in the domestic market.
2. There is no doubt that quality for led street light fixtures is the most important.
3. CHZ Lighting's service team will respond to you in a timely, efficient and responsible manner. Please contact us!
