 CHZ Lighting -  LED Street Light Manufacturer and LED Flood Light Factory Since 2013

CHZ outdoor sport lighting from China for promotion 1
CHZ outdoor sport lighting from China for promotion 2
CHZ outdoor sport lighting from China for promotion 1
CHZ outdoor sport lighting from China for promotion 2

CHZ outdoor sport lighting from China for promotion

Inquiry

Overview
Quick Details
Lighting solutions service:
DIALux evo layout
CRI (Ra>):
70
Beam Angle(°):
45°/60° /90°
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP66
Certification:
ce, RoHS
Place of Origin:
Shanghai, China
Brand Name:
CHZ
Model Number:
CHZ-FL21
Application:
Sports Stadiums, exhibition center/warehouse /bridge/stadiums
Light Source:
LED
Lamp Luminous Flux(lm):
19500-58500
Working Temperature(℃):
-40 - 60
Warranty(Year):
5-Year
Product name:
LED chips:
SMD3030
Lumen efficiency:
145LM/W
Color Temperature(CCT):
3000-5700K
Power:
600W/720W/840W/960W
Input Volt (V):
100V-277V
Warranty:
5 years
Luminous Efficacy(lm/w):
145
Input Voltage(V):
100-277V
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Product Description

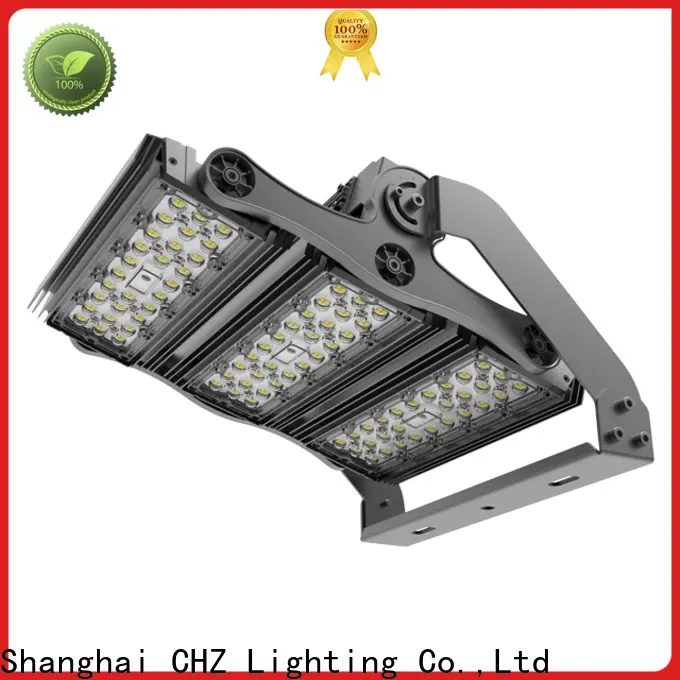

Adjustable projector LED stadium lighting high efficiency led floodlight 200w outdoor

CHZ outdoor sport lighting from China for promotion 3

Product Parameter:

Model

FL21-150W

FL21-220W

FL21-300W

FL21-450W

Power

150W

220W

300W

450W

Number of beads

224PCS

336PCS

448PCS

672PCS

Serialization

2*(16P7S)

3*(16P7S)

2*(32P7S)

3*(32P7S)

Light source voltage

42V

42V

42V

42V

Lamp body size mm

341x286x185

346x380x227

613x286x185

618x384x227

Lamp type

SMD3030

Driving operating voltage

100-277V

control method

Conventional/0-10V/DALI

Power factor PF

>0.95

Light efficiency Lm/W

>145

Color temperature CCT

4000K/5000K/5700K

Color rendering RA

>70

Beam angle

50°/60°/90°/TYPE II_S/TYPE III_M/TYPE IV_S/TYPE V, for options

Protection level

IP66

Lamp body material

Die-cast aluminum lamp body + PC lens

Lamp body color

Regular black, gray, can be customized according to customer requirements (quantity requirements)

Protection level

IP66/IK08/10KV

Operating temperature

—40~+50

Working humidity

10%~90%

Life/warranty period

50,000hrs / 5Years

Our Services

payment terms:

1. Payment method: wire transfer, sight letter of credit, Western Union remittance, Alipay

2. Samples can be delivered within 5-7 working days; Order: 10-20 days

3. Quote shipping according to your requirements

4. Freight Port: Shanghai, China

5. Offer discounts based on order quantity

1. Payment method: wire transfer, sight letter of credit, Western Union remittance, Alipay

2. Samples can be delivered within 5-7 working days; Order: 10-20 days

3. Quote shipping according to your requirements

4. Freight Port: Shanghai, China

5. Offer discounts based on order quantity



Related Products

CHZ outdoor sport lighting from China for promotion 5

Company Information

CHZ outdoor sport lighting from China for promotion 7

Our team

CHZ outdoor sport lighting from China for promotion 9

FAQ

FAQ:

1. What is a general business process?

Send inquiry to CHZ→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service

2. What is the warranty?

According to different types of lamps, a 5-7 year warranty is provided. If the product fails during the warranty period due to quality problems, we will immediately send out new replacements and freight charges in case of emergency. Or, we prefer to send a replacement for the next order.

3. What is the payment period?

For sample orders, we can accept wire transfer 100% in advance, PayPal, Western Union. For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment. For large orders, letters of credit
3. What is the payment term?
For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.
4. Can I add my logo on the product label?
Yes, but order quantity is requested depending on different lights.
5. I don't know which sty how many LED Street Light should I use, can you advise?
Yes, we can offer our professional solution for you, IES file is available if you have the design team.
6. Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available .
7. How do you ship the goods and how long does it take to arrive?
 We usually ship samples and small quantities of products that customers need urgently with DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. High-volume product transportation is available for airline or maritime transportation. The shipping time is updated according to the actual situation of the shipping company.
8. We don't know how to install,can you help?
We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.
9. How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send out new replacement to you immediately for you to solve the problem.

10. It is not convenient for us to visit your company in China, but what if you want to know the strength of your company in more detail?
You can visit us by visiting our foreign branches. We have teams and warehouses in Spain, USA, Nigeria and Nicaragua can provide you with comprehensive pre-sales and after-sales protection. You can also pay attention to it through our official website and the FACEBOOK homepage .

Wearing this garment feels good. As a result, this has the effect of improving the image thus making the wearer a lot confident about himself or herself. Adopting an intelligent constant current driver, it has no flicker problem. People who wear this product will find that it will not have quality problems like loose threads, obvious needle holes, crooked lines, puckering, or places that have been stitched over multiple times. Adopting an intelligent constant current driver, it has no flicker problem.
