CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013
CHZ outdoor led stadium lighting company bulk buy
1. CHZ outdoor led stadium lighting is developed for optimal performance. After many simulations, its illuminating parameters are close to the ideal value. The overall die-casting metal body guarantees its robustness
2. Phone owners will find that it takes no effort to carry it around when they go outside by only packing it inside their bags. This product is made in line with the "green low carbon" proposed by the state
3. The product gives off a clear light. Its finely designed beam angle enables it to emit light that is more evenly distributed. Its correlated color temperature(CCT) can be customized
4. The product is quite efficient. It has a couple of components that help it get started, consuming less energy when getting the system to work. Designed with quality heat sink fins, it features good heat dissipation

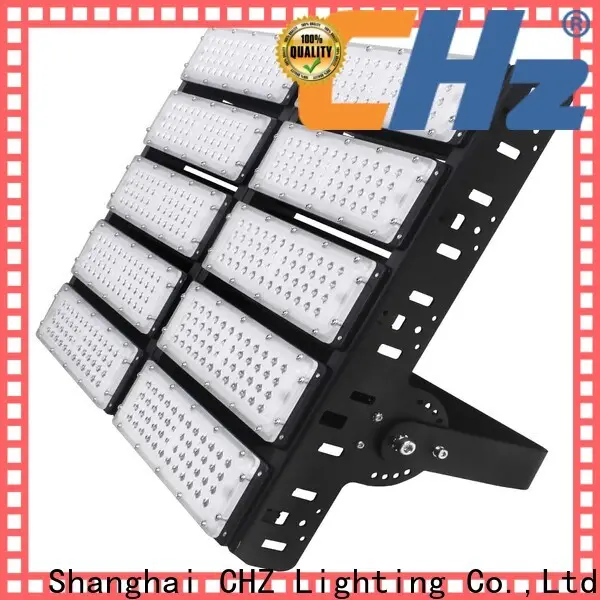

LED Tunnel Football Stadium Lighting Construction Spotlight 1200w LED IP66 Module Flood light ![LED Tunnel Football Stadium Lighting Construction Spotlight 1200w LED IP66 Module Flood light]()
Features:
The module can be rotated from 0 to 180°, and the illumination angle can be adjusted at will;
The surface of the lamp is specially sprayed and treated, and it has strong resistance to salt spray corrosion and is suitable for harsh environments;
Adapt to the SMD3030 lamp bead solution, which can support multi-module splicing, and the assembly and maintenance process is simple;
With high transmittance PC lens, 60°/90°/120°/140x100° and other light distribution angles are available for different application scenarios.
Applications:
Suitable for outdoor lighting such as building flooding, billboards, gardens, hotels, parking lots, etc.
Parameters:
Model | FL31-240W2 | FL31-480W4 | FL31-720W6 | FL31-960W8 | FL31-1200W10 |
Power | 240W | 480W | 720W | 960W | 1200W |
LED type | SMD3030 | ||||
LED's | 2x184 | 4x184 | 6x184 | 8x184 | 10x184 |
Serialization | 1*48P8S | 2*48P8S | 3*48P8S | 2*48P8S | 3*48P8S |
Light effect | >145LM/W | ||||
CCT | 3000K~6500K | ||||
CRI | >70 | ||||
Operating Voltage | 100-277V | ||||
Drive type | No dimming/ 0-10V dimming/ Dali dimming, for options | ||||
PF | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
Protection level | IP66 / IK10 | ||||
Lamp size (mm) | 572x272x117 | 616x542x182 | 752x542x225 | 616x542x182 | 752x542x225 |
Beam angle | 60° /90° /120°/140°x100°,Optional | ||||
Lamp body material | Die-cast aluminum lamp housing + high light transmission lens | ||||
Operating temperature | —30℃~+50℃ | ||||
Working humidity | -10%~90% | ||||
Life/warranty period | 50,000hrs / 5 Yrs | ||||
PACKAGE:
1. Standard packages of CHZ brand; 2. According to customer's requirement.
DELIVERY TIME:
5-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Company Features
1. Attributed to the trust and care of customers, CHZ has gained much reputation and glory.
2. Our manufacturing plant is equipped with modern production facilities. These facilities are imported aiming to improve overall production efficiency, enabling us to manufacture products within the shortest time.
3. Doing its utmost to serve customers has always been the ultimate goal of CHZ. Contact us!
