CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013
CHZ low-cost sport light led manufacturer for sports
1. Strict inspection of CHZ involves different aspects. For example, its insulation materials will be inspected in terms of arc resistance and electric leakage resistance which may form a conductive path or cause mechanical damage. Constructed with top Philips 5050 or 3030 chips, it features high luminous efficiency
2. It has good competition capacity and a good development prospect. The light emitted by this product is soft, comfortable, and not glaring
3. The product is promised with high quality and long service life. The one-piece cold forging ensures its precise shape
4. The product is thoroughly inspected by our quality inspectors as per the set quality guidelines. The product is quick in turning on and off
5. sport light led has remarkable performance. The shape of the product will be changed according to the needs of the customers

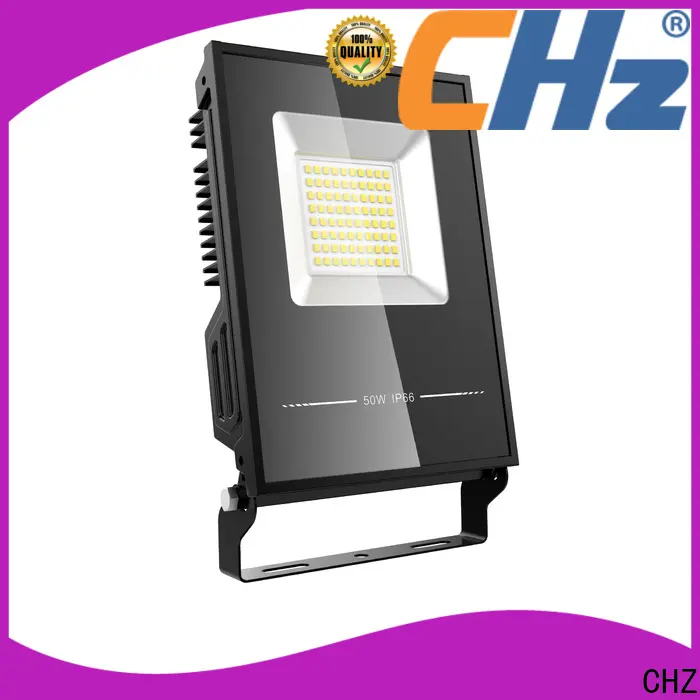

AC 220v 50HZ 50000 hours lifespan 6000K 100W led flood lighting for Industry
Features:
Die-cast aluminum lamp body, shell engineering plastic, economical and exquisite;
Adjustable mounting bracket for easy adjustment of angle and good light output; protection level up to IP66;
With high-quality SMD 2835 chip, high luminous efficiency, long life; at the same time, the configuration of high-quality intelligent constant current drive, work stability, high conversion efficiency, long life;
With tempered glass mask, high light transmittance, low glare and strong comfort;
The conventional spray color of the shell is black, and other colors have a certain amount of requirements.
Applications:
Suitable for outdoor lighting such as building flooding, billboards, gardens, hotels, parking lots, etc.
Parameters:
Model | FL26-50W | FL26-100W | FL26-150W | FL26-200W | ||
Power | 50W | 100W | 150W | 200W | ||
Lamp type | OSRAM 2835 | OSRAM 2835 | OSRAM 2835 | OSRAM 2835 | ||
Number of beads | 80 PCS | 160 PCS | 240 PCS | 320 PCS | ||
Serialization | 10P8S | 2*(10P8S) | 3*(10P8S) | 4*(10P8S) | ||
Protection level | IP65 | IP65 | IP65 | IP65 | ||
Light source voltage | 48V | 48V | 48V | 48V | ||
Input voltage | 180-240V | 180-240V | 180-240V | 180-240V | ||
Power factor | PF>0.9 | PF>0.9 | PF>0.9 | PF>0.9 | ||
Surge prevention level | 3KV | 3KV | 3KV | 3KV | ||
Light effect | >120Lm/W | >120Lm/W | >120Lm/W | >120Lm/W | ||
Color temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | ||
Color rendering | CRI>70 | CRI>70 | CRI>70 | CRI>70 | ||
Beam angle | 120° | 120° | 120° | 120° | ||
Lamp body material | Die casting lamp body + tempered glass | |||||
Operating temperature | —30℃~+50℃ | —30℃~+50℃ | —30℃~+50℃ | —30℃~+50℃ | ||
Working humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% | ||
Service life | 30,000hrs | 30,000hrs | 30,000hrs | 30,000hrs | ||
PACKAGE:
1. Standard packages of CHZ brand; 2. According to customer's requirement.
DELIVERY TIME:
5-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Company Features
1. As a professional supplier of sport light led , it is Shanghai CHZ Lighting Co.,Ltd's responsibility to solve your led baseball field lighting problems.
2. The factory has a complete set of cutting-edge production technology and facilities that are manufactured by developed countries. With these advantages, we can achieve consecutive increased monthly product output thanks to these facilities.
3. We are working hard for continual improvement in our products, services, and processes by establishing a good relationship among our customers, employees, and the communities.
