CHZ Lighting street lighting fixtures suppliers for street

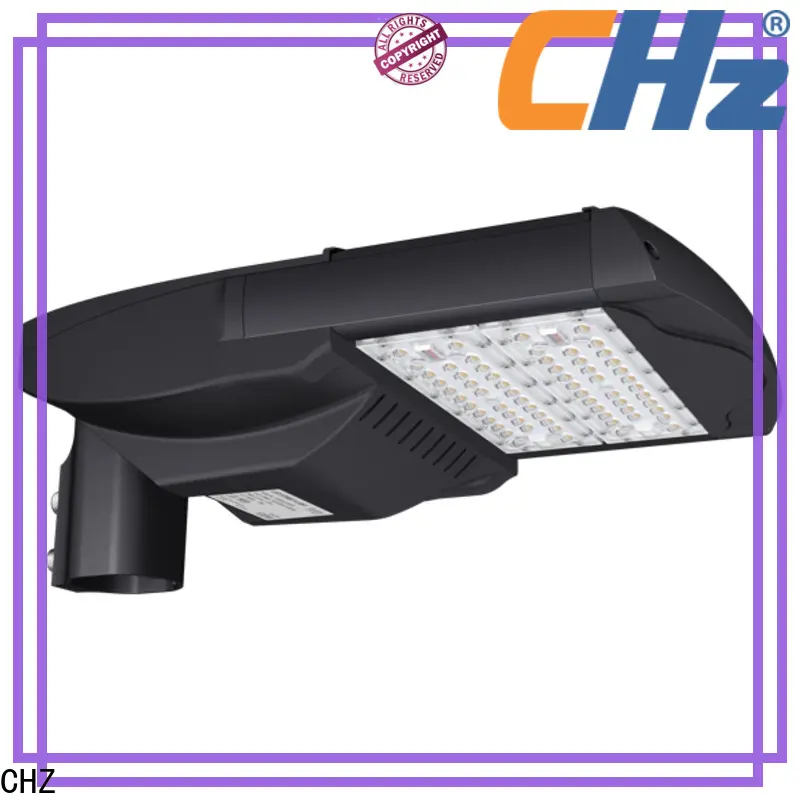

IP66 high quality smd modula led street light 180w 150w 100w shoebox light housing with enec rohs dlc tuv certificate for sale
Parameter:
Model No. | ST12-50W1 | ST12-100W2 | ST12-150W3 | ST12-200W4 | ST12-240W5 |
Power | 50W | 100W | 150W | 200W | 240W |
Chips connection | 1*(2S16P) | 2*(2S16P) | 3*(2S16P) | 4*(2S16P) | 5*(2S16P) |
Max current@ 120V | 0.51A | 1.03A | 1.54A | 2.06A | 2.57A |
Max current @208V | 0.30A | 0.59A | 0.89A | 1.19A | 1.48A |
Max current @240V | 0.26A | 0.51A | 0.77A | 1.03A | 1.29A |
Max current@277V | 0.22A | 0.45A | 0.67A | 0.89A | 1.11A |
Lumen efficency | >155LM/W | >160LM/W | >160LM/W | >160LM/W | >160LM/W |
Work temperature | -40 ºC to +50 ºC | ||||
Power factor | >0.95 | ||||
THD | <20% | ||||
Color rendering | >70 | ||||
LED type | SMD5050 | ||||
Input Volt | 100-240V/277V AC 50/60Hz | ||||
Dimmable type | 0-10V,PWM, Timer, DALI | ||||
Driver type | Inventronics/MW Driver | ||||
Beam angle | TYPE II / TYPE V | ||||
Color temperature | 3000K/4000K/5000K/5700K | ||||
Protection degree | IP66, IK10 | ||||
Light material | Housing: Die-cast aluminum; Heat sink: Stretched Aluminium Alloy; Lens: PC | ||||
Installation way | Horizontal or vertical installation, 0-10-15 degrees adjustable angle | ||||
Optional accessory | Light head D60 mm and 40/42mm apaptor for option | ||||
Shell color | Sliver-gray (RAL9022) or black (RAL9005) | ||||
Lumen Maitenance | > 90,000 hours at 25℃/ 7 years warranty | ||||
Certification | UL,DLC,TUV,ROHS,ISO9001,ISO14001,LM79 | ||||
1. What are your market reach throughout the regiion?
Our markets around the world in every corner, we have many years of experience in foreign trade.Our clients are from different countries. And we have branch office in Spain and Nigeria.
2. Whar are your main products?
Our main products are led outdoor lightings including led flood light( stadium lighting), led high bay light, led street lighting and led garden light.
3. Are you a manufactuer or a trading company?
We are a professional LED manufacturer.
4. Do you have the ability to do independent research and development?
Our engineering department have the research and development capabilities. We also collect regular customer feedback to research new product.
