CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013

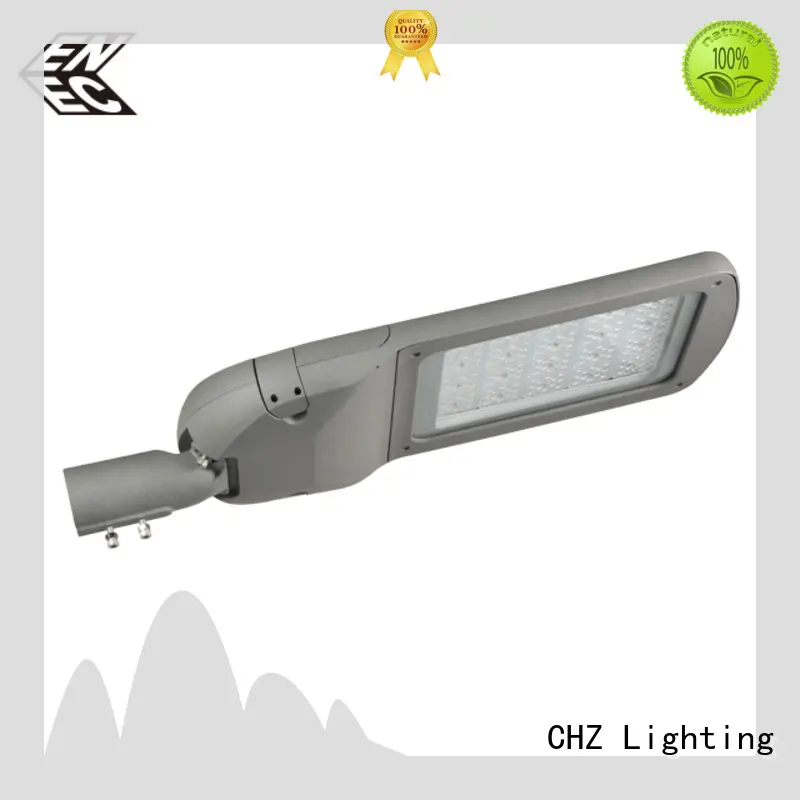

CHZ led street light with good price for sale
-
v s
1. During the production of CHZ led street light , it is manufactured under a reliable and safe environment. The treatment of glass is monitored closely to prevent any potential risks.
2. The product features a high CRI (color rendering index). It brings out the true colors of an object without appearing dinginess or inaccuracy.
3. The product features high efficiency. The new technology used in it provides maximum brightness and allows large areas of lighting.
4. Its unique appearance and style make it a preferred choice for designers. It greatly complements the character of the space.
Company Features
1. Shanghai CHZ Lighting Co.,Ltd has long been committed to the research and development and production of outdoor street light .
2. We have set up a professional manufacturing team. With their years of experience in the manufacturing process and a deep understanding of our products, they can manufacture products with the best results.
3. We realize that we have a responsibility to follow sustainable, eco-friendly practices. We attempt to reduce greenhouse gas emissions, energy consumption, solid landfill waste, and water consumption. We aim to drive sustainability through our own operations, as well as those of our suppliers, and we have set ambitious targets to minimize our impacts on climate, waste, and water. We will uphold our integrity while pursuing business development. As an entrepreneur, we will always meet our commitment no matter in carrying our business activities or fulfilling obligations on contacts. We perform social responsibility in our business operation. One of our primary focus is the environment. We take steps to reduce carbon footprints, which is good for both the company and society.
SOKOYO,The Top5 Manufacturer of Solar Led Street Light in China. We are pleased to offer you the solution of solar led street light, as well as all separated related components.
Technical Data for SOKOYO Solar Street Light :
SOKOYO Solar Street Light Working Mode | 5-13 working hours per day, 2-7 rainy days back-up |
Solar Panel
| 1. Monocrystalline Solar panel from 30W to 310W, efficiency of more than 18.5% 2. Polycrystalline solar panel from 30W to 270W, efficiency of more than 17.8% 3. A GRADE high efficient solar panel 4. Hydrophobic layer with higher light absorption and minimal surface dust 5. 5 years warranty for solar panels; 20 years power generation capacity |
Gel Battery
| 1. Lifespan:5-8 years, 2. Long service life (3200 cycles @ 30% DOD) 3. Better Weather-ability (-20 ºC ~ 50 ºC) 4. Fully sealed construction ,maintenance free long life of up to 5 years
|
Intelligent Solar Controller Lifespan:5-10 years | 1. PWM & MPPT available 2. Over-charging/discharging Protection 3. Reverse-connection Protection |
Light source
| 1. Ligh Power LED 2. Lifespan: >80000Hrs 3. White Color,140LM/W,30Lux,6500K, IP65,120 Degree Angle |
Light Pole
| 1. Hot-Dip Galvanized, powder coating 2. Lifespan: More than 20 years 3. Equipped With Arm, Bracket, Flange, Fittings, Cable 4. Resistant to Wind: ≥150KM/H |
Specifications for SOKOYO Solar Street Light Components :
1. LED lamp
- Ø The heat sink is designed to be out in the air to dissipate heat quickly.
- Ø Frosted toughened glass, no glare light.
- Ø All-in-one structure, waterproof and dust-proof.
- Ø Individual LED: 1LED with 1 heat sink, fast heat dissipation makes it over 70,000 hours long life time.
- Ø Sleeve adaptor, no need to open the light fixture when installation.
2. Solar panel
- Ø 5 years’warranty, no less than 90% of standard output power is within 10 years, 80% of standard output power is within 25 years.
- Ø High efficiency polycrystalline Or Mono cells and adding Aluminum Frame, Tempered Glass.
3. Gel battery
- Ø High efficiency polycrystalline Or Mono cells andAdding Aluminum Frame, Tempered Glass.
4. Controller
- Ø Short-circuit Protection: Once the load is short-circuiting connected, the controller will shut itself off to protect the solar system from damage.
- Ø Reverse Discharging Protection: It prevents the battery from discharging to solar panel.
- Ø Effective dust-proof and water-proof
5. Lighting pole
- Ø Q235 Steel
- Ø Hot galvanized anti-corrosion treatment
- Ø Smooth surface
- Ø Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15 * 6 mm square). Surface is smooth and color and luster are identical.
China solar street light manufacturer 50w 100w 120w 150w led street light housing module price list
LED Street Lamp SPRITE 28W-175W
- High heat-dissipation efficiency: 6063 anodized extruded aluminum, 200% faster heat conduction than ADC12 die-cast aluminum, 15% more heat radiation
- Thickening heat sink base: 5mm heat sink base, 50% thicker than others, absorbing heat from LEDs quickly.
- Module designed lamp body: the new structure creating the upper and lower air circulation, giving rate up to 0.9 m/s air flow, speeding up the heat dissipation
High Performance of Anti-dust
- Anti-dust: Unique heat sink design to hide the pin into shell preventing dust going in
Excellent Workmanship
- Artwork workmanship: 6063 extruded aluminum, anodized surface, anti-corrosion
Uniform Light Distribution
- Large coverage: covering length up to 5 times of MH, 67% longer than other lamps; covering width up to 1.2 times of MH, 25% wider than other lamps
- Uniform light distribution: in the area of 10*32m, the illumination uniformity is 63%(MH=8m), 40% higher than normal lamps
Comprehensive Test
- Original lamps scoring system: all lamps tested by SOKOYO's original lamps scoring system to ensure the great performance of each lamp
- Heat dissipation test: each lamp passed heat dissipation test to ensure the long life time of the LEDs
- Waterproof test: each lamp passed IP65 waterproof test
- Optical design and test: make optical design according to structure of each lamp and pass DiaLux simulation assessments
- Extreme environmental tests: high and low temperature test, high humidity test, dust test, salt spray test
Specifications
| Rated Power | 28W | 40W | 60W | 80W | 100W | 120W | 140W | 150W | 175W |
| Rated Current | 670 mA | 950 mA | 1420 mA | 1900 mA | 2220 mA | 2600 mA | 3100 mA | 3330 mA | 3880 mA |
| LED In Series | 85-265V AC | ||||||||
| LED Quantity | 72 | 72 | 72 | 72 | 72 | 84 | 98 | 98 | 98 |
| LED Brand | EPISTAR/BRIDGELUX | ||||||||
| Luminous Flux | 3077 lm | 4400 lm | 6600 lm | 8800 lm | 11000 lm | 12000 lm | 13000 lm | 14000 lm | 15400 lm |
| LED Efficiency | >120 lm/W | ||||||||
| Color Temperature | 3600~6500K (The default white light: 5000~6000K. Notify us for other requirements ) | ||||||||
| CRI | > 75 (For CT 5000~6000K, other CTs will affect the CRI value) | ||||||||
| Suggested MH | 4~6 m | 4~8 m | 6~8 m | 8~9 m | 9~10 m | 10~12 m | 10~12 m | 10~12 m | 12~13 m |
| Working Temperature | -30℃ ~ 50℃ | ||||||||
| Working Humidity | 10%~90% | ||||||||
| Main Material | 6063 anodized extruded aluminum | ||||||||
| Sleeve Diameter | 60mm | ||||||||
| LED Life Span | More than 50, 000 hours | ||||||||
| IP Class | IP66 | ||||||||
Dimension
| 400* 270*90 | 400* 270*90 | 475* 270*90 | 550* 270*90 | 615* 270*90 | 690* 270*90 | 765* 270*90 | 765* 270*90 | 765* 270*90 |
| Net Weight | 3.02kg | 3.02kg | 3.68kg | 4.34kg | 5.0kg | 5.66kg | 6.32kg | 6.32kg | 6.32kg |
