Overview
Quick Details
Lighting solutions service:
DIALux evo layout
Light Source:
LED
Lamp Luminous Flux(lm):
130
CRI (Ra>):
70
Working Temperature(℃):
-30℃~+60℃
IP Rating:
IP66
Certification:
ce, RoHS
Warranty(Year):
5-Year
Place of Origin:
Shanghai, China
Brand Name:
CHZ
Model Number:
CHZ-ST33
Beam Angle(°):
145°x80°
Application:
ROAD
Color:
Black, Dark Grey, Light Grey, Other, 3000K/4000K/5000K/5700K/6500K
Power Supply:
AC
Power:
40w 60w 80w 100w 120w 150w 180w 200w
Led chips:
smd 3030
PF:
>0.95
Driver:
MW, INVENTRONICS or other
Dimming:
original, 0-10V, PMW, DALI
Material:
die-cast aluminum
IP & IK:
IP66 IK09
MOQ:
1PC
Input Voltage(V):
100-277V
Working Lifetime(Hour):
50000
Luminous Efficacy(lm/w):
130
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Product Description

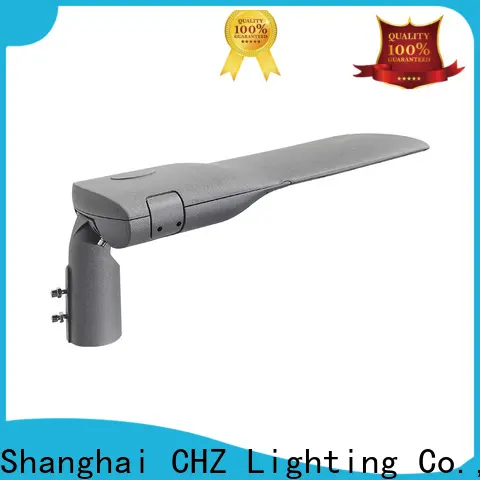

New design led smd street light shoebox sensor with high quality

Specifition of led street lights CHZ-ST33:

Model

ST33-40W

ST33-60W

ST33-80W

ST33-100W

Rated power

40W

60W

80W

100W

Lamp Bead Type

SMD 3030

SMD 3030

SMD 3030

SMD 3030

Number of lamp beads

96PCS

96PCS

192PCS

192PCS

Serial-parallel

12P8S

12P8S

24P8S

24P8S

Light effect

>130LM/W

>130LM/W

>130LM/W

>130LM/W

Product Size

644x220x108mm

644x220x108mm

719x270x109mm

719x270x109mm

Model

ST33-120W

ST33-150W

ST33-180W

ST33-200W

Rated power

120W

150W

180W

200W

Lamp Bead Type

SMD 3030

SMD 3030

SMD 3030

SMD 3030

Number of lamp beads

192PCS

192PCS

320PCS

320PCS

Serial-parallel

24P8S

24P8S

40P8S

40P8S

Light effect

>130LM/W

>130LM/W

>130LM/W

>130LM/W

Product Size

719x270x109mm

719x270x109mm

773x320x109mm

773x320x109mm

Color temperature

3000K/4000K/5000K/5700K/6500K,based on customer's needs

Beam angle

145°x80°

Color rendering

CRI > 70

Operating Voltage

100-277V

Power factor PF

>0.95

Drive type

MW, INVENTRONICS or others, according to customer needs

Dimming method

Normal, 0-10V, PMW, DALI and other intelligent control, according to the actual needs of customers; can also be installed with light controller

Light body material

Die-cast aluminum lamp body + PC lens + tempered glass + 304 stainless steel screws

Installation pipe diameter

D60mm

Protection class

IP66/IK09

Lightning protection level

10KV or 20KV

Operating temperature

-30℃~+60℃

Working humidity

10%~90%

Life / warranty

50,000hrs/5 Years


CHZ led street light price suppliers for street 12CHZ led street light price suppliers for street 14



CHZ Lighting Company view Specification of outdoor led street lights:

Established in 2010, Shanghai CHZ Lighting Co., Ltd. is a high-tech enterprise engaged in the research, development, production and sales of lighting products.



CHZ adheres to the standard of "leading technology and leading quality" and has established a joint R&D center with Professor Chen Dahua (Ph.D.) of Fudan University's electric light source department. It continues to develop new products and lead the smart trend. Our products cover industrial lighting, stadium lighting, street lighting and solar lighting. We insist on using high-quality raw materials and advanced production technology to focus on manufacturing every kind of high-quality lamps. Our factory has passed ISO9001: 2015 certification, ENEC, CE. , FCC, ROSH, TUV UL CB certification. CHZ led street light price suppliers for street 16



payment terms:

1. Payment method: wire transfer, sight letter of credit, Western Union remittance, Alipay

2. Samples can be delivered within 5-7 working days; Order: 10-20 days

3. Quote shipping according to your requirements

4. Freight Port: Shanghai, China

5. Offer discounts based on order quantity





Solution service process:

Understand the overall needs of customers, recommend related products and corresponding power, customers provide basic engineering information (taking road lighting as an example: customers need to provide road width, pole height, pole position, pole distance, average illumination requirements, etc.). Designers use Dialux simulation to design lighting effects and offer a variety of options for customer selection.



Shanghai CHZ LIGHTING always follows the standardization rules and implements strict production processes to ensure product quality, thus saving time and cost for both parties and bringing maximum benefits to customers.





FAQ:

1. What is a general business process?

Answer: Send inquiry to CHZ→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service



2. What is the warranty?

A: According to different types of lamps, a 5-7 year warranty is provided. If the product fails during the warranty period due to quality problems, we will immediately send out new replacements and freight charges in case of emergency. Or, we prefer to send a replacement for the next order.



3. What is the payment period?

A: For sample orders, we can accept wire transfer 100% in advance, PayPal, Western Union. For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment. For large orders, letters of credit


3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.

4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.

5. I don't know which sty how many LED Street Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.

6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available .

7. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship samples and small quantities of products that customers need urgently with DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. High-volume product transportation is available for airline or maritime transportation. The shipping time is updated according to the actual situation of the shipping company.

8. We don't know how to install,can you help?
Answer : We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.

9. How to deal with the faulty?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send out new replacement to you immediately for you to solve the problem.



10. It is not convenient for us to visit your company in China, but what if you want to know the strength of your company in more detail?
Answer : You can visit us by visiting our foreign branches. We have teams and warehouses in Spain, USA, Nigeria and Nicaragua can provide you with comprehensive pre-sales and after-sales protection. You can also pay attention to it through our official website and the FACEBOOK homepage .
