CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013

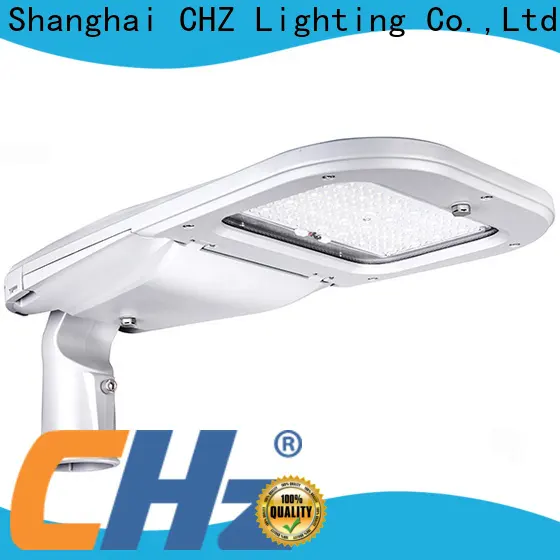

CHZ led street light for sale suppliers bulk production
1. Tested on several parameters of quality, the provided led street light for sale is available at pocket-friendly prices for the clients. The one-piece cold forging ensures its precise shape
2. That CHZ concentrates on the service quality turns out to be effective. Having little electricity consumption, it is energy-keeping
3. The product is characterized by its high color rendering value. Its colors will remain true and natural to the surrounding. With a high transmittance light guide plate, it provides a uniform light-emitting effect
4. The product has a dramatically high color rendering index. It allows the colors of items to appear clear, vivid and distinguishable. The unique design of low current reduces the line loss
aluminium led outdoor street light body pathway car parking lot led post top lights luminaires for public lighting high lumen
Model No. | ST23-60W2 | ST23-90W2 | ST23-120W2 |
Rated Power | 60W | 90W | 120W |
LED type | SMD3030 2D | SMD3030 2D | SMD3030 2D |
Driver type | MW-HLG | MW-HLG | MW-HLG |
Chips connection | 8S12P | 8S18P | 8S24P |
Input Volt | 100-240V/277V AC 50/60Hz | ||
Dimmable type | 0-10V,PWM, Timer, DALI | ||
Work temperature | -40 ºC to +50 ºC | ||
Power factor | >0.95 | >0.95 | >0.95 |
Lumen efficency | >125LM/W | >125LM/W | >125LM/W |
Color rendering | >70 | >70 | >70 |
Beam angle | TYPE I /TYPE II/ TYPE III | ||
Color temperature | 3000K/4000K/5000K/5700K(Luminous Efficacy of 3000K is 5% lower than others) | ||
Protection degree | IP66, IK10, 10KV | ||
Product/Packing size | 726*357*127mm / 785*415*200mm | ||
Light material | Housing: Die-cast aluminum; Heat sink: Stretched Al Alloy; Lens: PC+Glass cover | ||
Installation way | Horizontal or vertical installation, 0-10-15 degrees adjustable angle | ||
Optional accessory | Light head Ø 60 mm and 40/42mm apaptor for option | ||
Shell color | Sliver-gray (RAL9022) or black (RAL9005) | ||
Lumen Maitenance | > 80,000 hours(L70) at 25℃/ 7 years warranty | ||
Certification | CE,ROHS,ISO9001,ISO14001,LM80 | ||
Advantages
1. Green, efficient, energy saving, short response time.
2. Unique design for the housing which lead to IP66 waterproof rate.
3. Minimum lifespan: 80000Hrs, 7 years warranty
4. Input voltage: AC100-277V, suitable for majority countries.
5. Drive by high stability constant current to make sure the LED’s working life.
1. Package: standard packages of CHZ, or according to customer requirements of Logo, Brand.
2. Express: By UPS/DHL/FEDEX/TNT, it takes 3-5 days to arrive the destination.
3. Air cargo: It takes about 5-7 days to arrive the destination.
4. Sea shipment: It takes about one month to arrive the destination, depending on your requirements.
FAQ:
1. What are your market reach throughout the regiion?
Our markets around the world in every corner, we have many years of experience in foreign trade.Our clients are from different countries. And we have branch office in Spain and Nigeria.
2. Whar are your main products?
Our main products are led outdoor lightings including led flood light( stadium lighting), led high bay light, led street lighting and led garden light.
3. Are you a manufactuer or a trading company?
We are a professional LED manufacturer.
4. Do you have the ability to do independent research and development?
Our engineering department have the research and development capabilities. We also collect regular customer feedback to research new product.
5. How to contact you?
Welcome to vist our websit (www.chz-lighting.com) to get more information.
Company Features
1. Our project management team is the core strength of our company. They can make the best use of time to manage the deadline for our projects in the right manner.
2. The assignment of Shanghai CHZ Lighting Co.,Ltd would be to present competent led street light for sale and specialist services to clients. Contact us!
