Overview
Quick Details
Lighting solutions service:
DIALux evo layout
Light Source:
LED
Lamp Luminous Flux(lm):
7500
CRI (Ra>):
70
Working Temperature(℃):
-40℃~+50℃
IP Rating:
IP66
Certification:
ce, EMC, LVD, RoHS
Warranty(Year):
5-Year
Place of Origin:
Shanghai, China
Brand Name:
CHZ
Model Number:
CHZ-ST25B smd5050
Beam Angle(°):
145°x 75°(TYPE II)
Application:
ROAD
Color:
Black, Dark Grey, Light Grey, White
Power Supply:
AC
Power:
60W 80W 100W
Lumen (Lm/W):
>160lm/w
LED'S type:
SMD5050
Aperture dia (mm):
D60
IP:
IP66
IK:
IK10
PF:
>0.95
Beam angle:
145°x 75°(TYPE II)
Light body material:
Die-casting lamp body + PC lens
Product Keywords:
new module street lighting with pole
Input Voltage(V):
100-277V
Working Lifetime(Hour):
50000
Luminous Efficacy(lm/w):
150
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Product Description

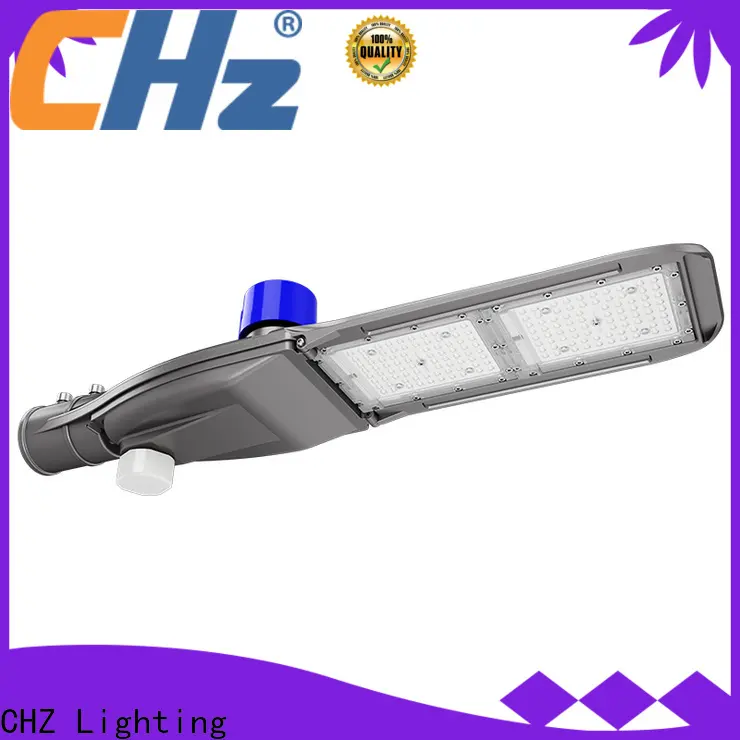

High lumens 160lm/w street light cobra 60 watt led 80 with cheap price

CHZ led street light for sale factory direct supply bulk buy 5CHZ led street light for sale factory direct supply bulk buy 7

160LM/W high lumens

Products Parameter of new led street light CHZ-ST25B:

Model

ST25-60WB

ST25-80WB

ST25-100WB

Rated power

60W

80W

100W

Lamp Bead Type

SMD5050

SMD5050

SMD5050

Number of lamp beads

56 PCS

56 PCS

56 PCS

Serial-parallel

28P2S

28P2S

28P2S

Light effect Lm / W

>160

Light source voltage

48V

48V

48V

Light source current

1200mA

1600mA

2000mA

Driving working voltage

100-244V/277V AC

Power factor PF

>0.95

CCT

3000K/4000K/5000K/5700K/6500K

Color rendering RA

>70

Beam angle

145°x 75°(TYPE II)

Fixture size

717x178x99mm

717x178x99mm

717x178x99mm

Lamp holder mounting diameter

D60 mm

Light body material

Die-casting lamp body + PC lens

Protection class

IP66&IK10

Operating temperature

—40~+50

Working humidity

10%~90%

Life / warranty period

50,000 hours / 5 years


Related Products
CHZ led street light for sale factory direct supply bulk buy 9
CHZ led street light for sale factory direct supply bulk buy 11
CHZ led street light for sale factory direct supply bulk buy 13
CHZ led street light for sale factory direct supply bulk buy 15
Company Information
CHZ led street light for sale factory direct supply bulk buy 17

ABOUT US

CHZ Lighting Technology Co. Ltd was founded in 2010, which is a company with the capability of independent innovation, professional development, production, sales of new energy saving and environmental protection lighting products, lamp and LED lighting.

PROJECTS

CHZ led street light for sale factory direct supply bulk buy 19CHZ led street light for sale factory direct supply bulk buy 21CHZ led street light for sale factory direct supply bulk buy 23

FAQ:

1. What is a general business process?

Answer: Send inquiry to CHZ→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service



2. What is the warranty?

A: According to different types of lamps, a 5-7 year warranty is provided. If the product fails during the warranty period due to quality problems, we will immediately send out new replacements and freight charges in case of emergency. Or, we prefer to send a replacement for the next order.



3. What is the payment period?

A: For sample orders, we can accept wire transfer 100% in advance, PayPal, Western Union. For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment. For large orders, letters of credit


3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.

4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.

5. I don't know which sty how many LED Street Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.

6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available .

7. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship samples and small quantities of products that customers need urgently with DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. High-volume product transportation is available for airline or maritime transportation. The shipping time is updated according to the actual situation of the shipping company.

8. We don't know how to install,can you help?
Answer : We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.

9. How to deal with the faulty?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send out new replacement to you immediately for you to solve the problem.



10. It is not convenient for us to visit your company in China, but what if you want to know the strength of your company in more detail?
Answer : You can visit us by visiting our foreign branches. We have teams and warehouses in Spain, USA, Nigeria and Nicaragua can provide you with comprehensive pre-sales and after-sales protection. You can also pay attention to it through our official website and the FACEBOOK homepage .
