CHZ led field lighting

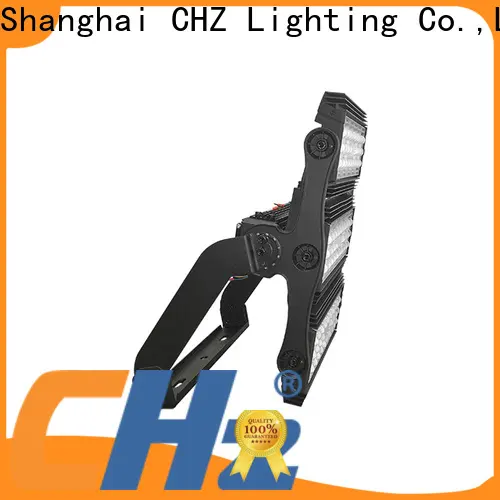

Free sample 400watt led flood light 400 w 300watt floodlight
Features:
Adjustable projecting direction to get precious aiming;
Beam angle 45°/60° /90° for option, deliver precise circular pattern into certer of sports lighting field from corne high mast, which offers solution especially for soccer/hockey/football field;
Use ultra-high brightness smd3030 chips which can be up to 140lm/w;
Each module can be ange adjustable flexiblely, so it can be used for more applications.
Stainless steel wireguard is designed to protect the fixture from hitting by high-speed objects.
With 10KV surge protection and stainless steel chain for further protection on request.
Applications:
Widely used in large space lighting places exhibition center, large warehouses, soccer or football field, indoor stadiums and etc.
Parameter:
Model | FL21-150W | FL21-220W | FL21-300W | FL21-450W | |
Power | 150W | 220W | 300W | 450W | |
LED type | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 | |
LED`s | 224PCS | 336PCS | 448PCS | 672PCS | |
Connection | 2*(16P7S) | 3*(16P7S) | 2*(32P7S) | 3*(32P7S) | |
Chips Volt | 42V | 42V | 42V | 42V | |
Lumen(Lm/W) | >145 | >145 | >145 | >145 | |
Product size(mm) | 341x286x185 | 346x380x227 | 613x286x185 | 618x384x227 | |
Model | FL21-150W | FL21-220W | FL21-300W | FL21-450W | |
Power | 150W | 220W | 300W | 450W | |
LED type | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 | |
LED`s | 224PCS | 336PCS | 448PCS | 672PCS | |
Connection | 2*(16P7S) | 3*(16P7S) | 2*(32P7S) | 3*(32P7S) | |
Chips Volt | 42V | 42V | 42V | 42V | |
Input Volt | 100-277V | ||||
control method | Conventional/0-10V/DALI | ||||
PF | >0.95 | ||||
Lumen(Lm/W) | >135 | >135 | >135 | >135 | |
CCT | 4000K/5000K/5700K | ||||
RA | >80 | ||||
Beam angle | 40°/60°/90°, for options | ||||
IP | IP66 | ||||
Product size(mm) | 341x286x185 | 346x380x227 | 613x286x185 | 618x384x227 | |
Light material | Die-cast aluminum body + PC lens | ||||
Lamp body color | Regular black, gray, can be customized according to customer requirements (quantity requirements) | ||||
Protection level | IP66/IK08/10KV | ||||
Work temp | —40℃~+50℃ | ||||
Work humidity | 10%~90% | ||||
Life/Warranty | 50,000hrs / 5Years | ||||
Company Information
FAQ:
1. What are your market reach throughout the regiion?
Our markets around the world in every corner, we have many years of experience in foreign trade.Our clients are from different countries. And we have branch office in Spain and Nigeria.
2. Whar are your main products?
Our main products are led outdoor lightings including led flood light( stadium lighting), led high bay light, led street lighting and led garden light.
3. Are you a manufactuer or a trading company?
We are a professional LED manufacturer.
4. Do you have the ability to do independent research and development?
Our engineering department have the research and development capabilities. We also collect regular customer feedback to research new product.
5. How to contact you?
Welcome to vist our websit (www.chz-lighting.com) to get more information.
