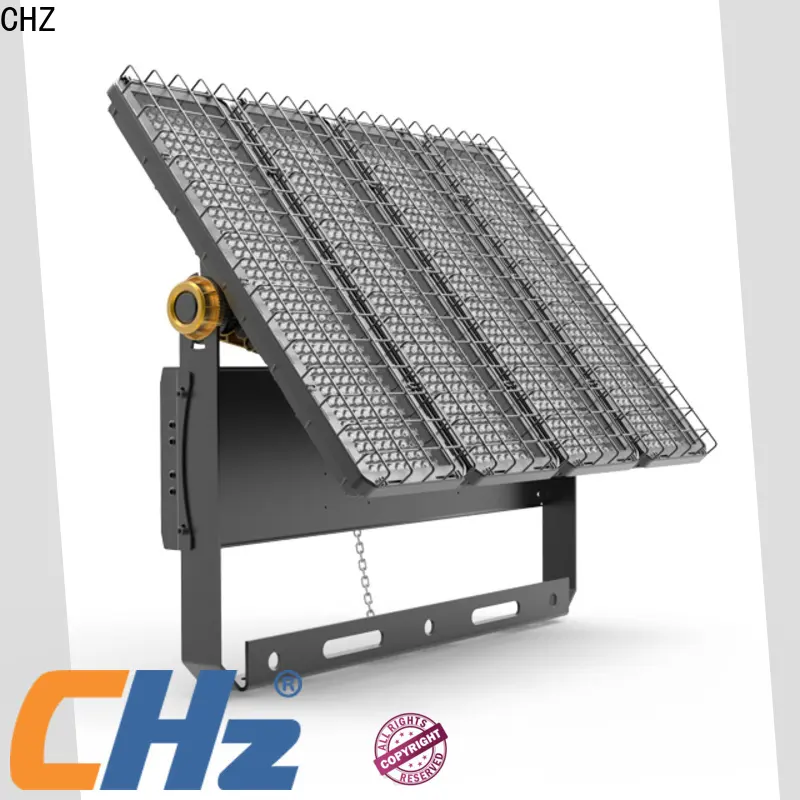

CHZ hot selling led sports lights wholesale for promotion
Best selling hot chinese products outdoor football pitches lighting led flood light reflector stadium for
Features:
Adjustable projecting direction to get precious aiming;
Beam angle 15°/30° for option, deliver precise circular pattern into certer of sports lighting field from corne high mast, which offers solution especially for soccer/hockey/football field;
Use ultra-high brightness smd3030 chips which can be up to 140lm/w;
External driver box can either sit behind lamp body on the top of master or remotely be placed at the bottom of master for easy acces and driver maintenance.Unique design of low current reduces the line loss and allow 30m distance between driver output and lamp body;
Stainless steel wireguard is designed to protect the fixture from hitting by high-speed objects;
With 10KV surge protection and stainless steel chain for further protection on request.
Applications:
Widely used in large space lighting places exhibition center, large warehouses, soccer or football field, indoor stadiums and etc.
Parameter:
Model | FL17-500W | FL17-750W | FL17-1000W |
Power | 500W | 750W | 1000W |
LED type | SMD 3030 | SMD 3030 | SMD 3030 |
LED`s | 608PCS | 912PCS | 1216PCS |
Connection | 2*(38P8S) | 3*(38P8S) | 4*(38P8S) |
Chips Volt | 48V | ||
Input Volt | 100-277V | ||
Control | Conventional/0-10V/DALI | ||
PF | >0.95 | ||
Lumen(Lm/W) | >140 | ||
CCT | 4000K/5000K/5700K/6500K | ||
RA | >70 | ||
Beam angle | 15°/30° | ||
IP | IP66 | ||
Product size(mm) | 470x705x170 | 670x705x170 | 870x705x170 |
Light material | Die-casting lamp body + PC lens + steel shield | ||
Light color | Conventional black (other colors have a number of requirements) | ||
Work temp | —30℃~+45℃ | ||
Work humidity | 5%~95% | ||
Life/Warranty | 50,000hrs / 5yeras | ||
