 CHZ Lighting -  LED Street Light Manufacturer and LED Flood Light Factory Since 2013

CHZ high bay light fixture suppliers with high cost performance 1
CHZ high bay light fixture suppliers with high cost performance 1

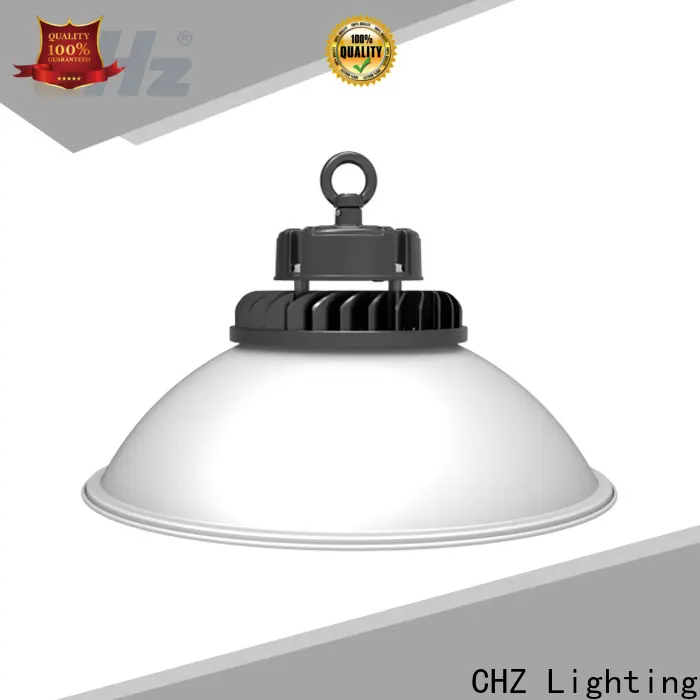

CHZ high bay light fixture suppliers with high cost performance

Inquiry
Company Advantages
1. The design of CHZ is defined as practical. Its shape, its color, and its form are inspired and created by the function of the piece. Constructed with top Philips 5050 or 3030 chips, it features high luminous efficiency
2. This product has won the trust and favor of domestic and foreign customers with its comprehensive strength. With a compact integrated design, it is easy for transportation
3. The establishment of the quality management system greatly ensures the quality of the product. With high quality LED chips, it can operate for more than 50,000 hours without failure
Overview
Quick Details
Input Voltage(V):
100-277V
Lamp Luminous Flux(lm):
14000
CRI (Ra>):
70
Working Temperature(℃):
-40 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP54
Certification:
CCC, ce, RoHS
Place of Origin:
Shanghai, China
Brand Name:
CHZ
Model Number:
CHZ-HB15-100WA
Application:
Warehouse
Light Source:
LED
Lamp Luminous Efficiency(lm/w):
140
Product Name:
waterproof industrial led high bay lighting light
Chips Volt:
30V
Power factor:
>0.95
Keyword:
waterproof industrial led lighting
Beam Angle:
60°/110°
Light Material:
Die-case AL+ PC lens
Power:
100W
Installation:
Hook / rings/ square bracket, optional
Warranty(Years):
5
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month waterproof industrial led lighting

100W SMD3030 140LM/W led high bay lighting waterproof industrial light

CHZ high bay light fixture suppliers with high cost performance 2CHZ high bay light fixture suppliers with high cost performance 4CHZ high bay light fixture suppliers with high cost performance 6

Specification of waterproof industrial led lighting

Model No.HB15-100WAHB15-150WAHB15-200WA
Power100W150W200W
LED typeSMD 3030SMD 3030SMD 3030
LED Qty192 PCS192 PCS240 PCS
Connection32P6S32P6S40P6S
LED Volt36V36V36V
Driver typeHBG-100-36AHBG-160-36AHBG-240-48A
Input Volt100-277V100-277V100-277V
Dimming0-10V, PMW, Timer, Dali
Power Factor>0.95>0.95>0.95
Lumen>140LM/W>130LM/W>130LM/W
Color Temp3000-6500K3000-6500K3000-6500K
Coler Render>70>70>70
Beam Angle60°/110°
Product sizeΦ240x125mmΦ240x125mmΦ280x135mm
InstallationHook / rings/ square bracket, optional
Light materialDie-case AL+ PC lens
Protection degreeIP54
Work Temp—30℃~+50℃
Work Humidity10%~90%
Life/Warranty50,000hrs / 5 Years



Related products

CHZ high bay light fixture suppliers with high cost performance 8CHZ high bay light fixture suppliers with high cost performance 10CHZ high bay light fixture suppliers with high cost performance 12

      CHZ-FL07                   CHZ-GD03A          CHZ-ST15

Packing

CHZ high bay light fixture suppliers with high cost performance 14

CHZ high bay light fixture suppliers with high cost performance 16

Bill of lading



CHZ high bay light fixture suppliers with high cost performance 18

CHZ high bay light fixture suppliers with high cost performance 20

This product will not easily shrink even people wash it in the hot water or dry it in the dryer. The product is quick in turning on and off. This product has a perfect fit and makes sure that people dressing this product will not have a feeling of tightness. The product is quick in turning on and off.

Company Features
1. Shanghai CHZ Lighting Co.,Ltd has attended many influential international exhibition and highly recognized by customers. Our team of engineers is equipped with decades of experience. They are passionate about manufacturing businesses. Dependent upon particular needs, they can help our customers to identify the most effective project solutions.
2. We have got the National Industrial Production Permit. This certificate is the fundamental basis for all of our production actions. This proves that our production and products are in line with regulations.
3. We have well-established teams of workers. All of the team members take great pride in mastering their craft in our state-of-the-art facilities. We listen to our clients and put their needs first. We work creatively to achieve tangible benefits and find viable solutions to client issues.
