CHZ all in one street light factory direct supply for promotion
1. The design of CHZ is completed. It is carried out by our designers who have a unique understanding of current furniture styles or forms. The product is certified under CCC, TUV, CE, ROHS, UL, DLC, etc
2. Shanghai CHZ Lighting Co.,Ltd takes the lead in grasping the development trend of all in one street light industry. This product is constructed with an over current protection function
3. Stable performance and long lifespan of all in one street light is guaranteed. Constructed with top Philips 5050 or 3030 chips, it features high luminous efficiency
4. The quality and performance of the product have been greatly improved by our excellent R&D team. Having little electricity consumption, it is energy-keeping

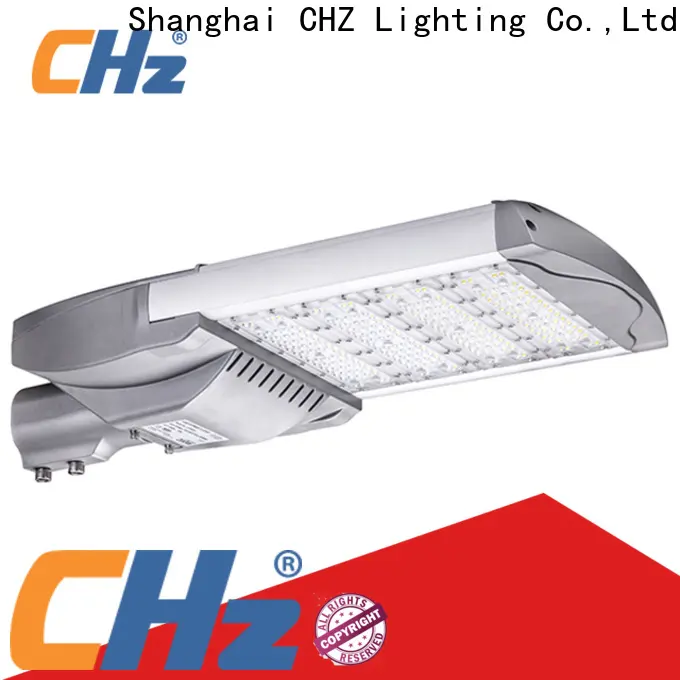

High lumens 50w 100w 150w 200w outdoor aluminum body led street light
Product descriptions of led street light:
Product features of led street light:
A. Overall aluminum die casting,heat sink fins, good heat dissipation;
B. Use UL standard lock, the overall structure is compact, sophisticated design work;
C. Metal connecting portion, all stainless steel, corrosion-resistant, durable;
D. Professional lens design, four different angles for different lighting requirements of the road;
E. Lamp angle adjustable from 0° to 90°, either side-mounted, top-loading may be freely converted;
F. Using high-quality LED chip and constant current driver,stable overall performance, long life of 60,000 hours above.
Technical parameters of led street light:
| Model | ST12-40WA1 | ST12-80WA2 | ST12-120WA3 | ST12-160WA4 | ST12-200WA5 |
| Power | 40W | 80W | 120W | 160W | 200W |
| LED type | SMD3030 | ||||
| Chips connection | 1*(8S8P) | 2*(8S8P) | 3*(8S8P) | 4*(8S8P) | 5*(8S8P) |
| Input Volt | 100-240V/277V AC 50/60Hz | ||||
| Dimmable type | 0-10V,PWM, Timer, DALI | ||||
| Driver type | MW Driver | ||||
| Max current@ 120V | 0.41A | 0.82A | 1.23A | 1.65A | 2.06A |
| Max current @208V | 0.24A | 0.47A | 0.71A | 0.95A | 1.19A |
| Max current @240V | 0.21A | 0.41A | 0.62A | 0.82A | 1.03A |
| Max current@277V | 0.18A | 0.36A | 0.53A | 0.71A | 0.89A |
| Work temperature | -40 ºC to +50 ºC | ||||
| Power factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| THD | <20% | <20% | <20% | <20% | <20% |
| Lumen efficency | >130LM/W | >130LM/W | >130LM/W | >130LM/W | >130LM/W |
| Color rendering | >70 | >70 | >70 | >70 | >70 |
| Beam angle | TYPE I (150°x65°)/TYPE II (140°x80°)/ TYPE III (145°x100°)/ TYPE V (105°x100°) | ||||
| Color temperature | 3000-6500K | ||||
| Protection degree | IP66, IK10 | ||||
| Light material | Housing: Die-cast aluminum; Heat sink: Stretched Aluminium Alloy; Lens: PC | ||||
| Installation way | Horizontal or vertical installation, 0-10-15 degrees adjustable angle | ||||
| Optional accessory | Light head Ø 60 mm and 40/42mm apaptor for option | ||||
| Shell color | Sliver-gray (RAL9022) or black (RAL9005) | ||||
| Lumen Maitenance | >60,000 hours at 25℃/ 5 years warranty | ||||
| Certification | TUV,ENEC,ROHS,ISO9001,ISO14001,LM80 | ||||
Product catalog and design of led street light:
Beam angle of led street light:
Installation methods of led street light:
Product application of led street light:
Packing & Shipping:
Related Products of led street light:
Company Introduction:
Shanghai CHZ Lighting Technology Co., Ltd. was established in 2010, is one of leading manufacturer of LED lighting products in China. The headquarter lies in Nanxiang CBD district of Shanghai, adjacent to Shanghai Hongqiao Airport and train station, subway, high-speed railway station. The transportation is very convenvient. Our R&D center is located at Jiangqiao Industrial Development Zone.
By continuous R&D investment, CHZ keeps promoting new products, meeting various needs of the market, covering indoor and outdoor lights, We have got a few patents and lots of quality certifications, such as CE, ROHS, ERP, TUV, CB, SAA, UL, CUL, DLC and etc. Meanwhile, our company passed ISO9000 and ISO 14000 system certification. Till now, our products has been widely used in thousands of lighting projects in the world and won good reputation.
After years of development, “CHZ” has gradually become one well-known brand in this field. In order to offer better service for global customers, we have set up one branch company and logistic warehouse in Spain for Europe market, early this 2016. Then we would build up more branches step by step, offering better logistic and after-sales service. Customers` satisfaction is our tireless pursuit! Believe CHZ is worthy of your trust and CHZ is your best choice!
Contact Us:
Company Features
1. Shanghai CHZ Lighting Co.,Ltd is a professional and reliable maker of all in one street light . We have a team of experienced professionals. With years of research, they are knowledgeable about industry trends and the critical issues impacting the manufacturing industry.
2. After many years of solid development, our company has grown into a sizable factory. There have been established complete production lines in the factory, including parts distribution lines, dust-free treatment lines, and final assembly lines. This proofs that the factory has achieved standardization production.
3. We have a competent team of the quality controller (QC). They have solid experience. They assure that quality is met at every stage of our production process from purchasing raw materials to delivery. CHZ determines to be the leading manufacturer in accordance with the spirit of led road light . Inquire now!
