Company Advantages 1. has the best design that comes from world-class designers. The one-piece cold forging ensures its precise shape 2. The function of the product gives space decoration meaning and perfects the space equipment. It makes space a substantial functional unit. It is widely exported to over 60 countries and regions 3. The product is highly acknowledged among customers for its good durability and lasting performance. The product is certified under CCC, TUV, CE, ROHS, UL, DLC, etc
Overview
Quick Details
Lighting solutions service:
DIALux evo layout
CRI (Ra>):
70
Beam Angle(°):
15°/30° 45°/60°
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP66
Certification:
ce, RoHS
Place of Origin:
Shanghai, China
Brand Name:
CHZ
Model Number:
CHZ-FL28
Application:
Sports Stadiums
Light Source:
LED
Lamp Luminous Flux(lm):
78400
Working Temperature(℃):
-40℃~+50℃
Warranty(Year):
5-Year
Power:
280W 560W 840W
LED Type:
SMD3030
control method:
Conventional/0-10V/DALI
Power factor:
PF>0.95
Light effect:
>140Lm/W
Color temperature:
4000K-5700K
Lamp body material:
Die-cast aluminum lamp body + PC lens
Protection level:
IP66/IK10/10KV
Working humidity:
10%~90%
Service life:
Service life
Input Voltage(V):
AC 100-277V 50/60HZ
Luminous Efficacy(lm/w):
140
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Online Customization
Product Description

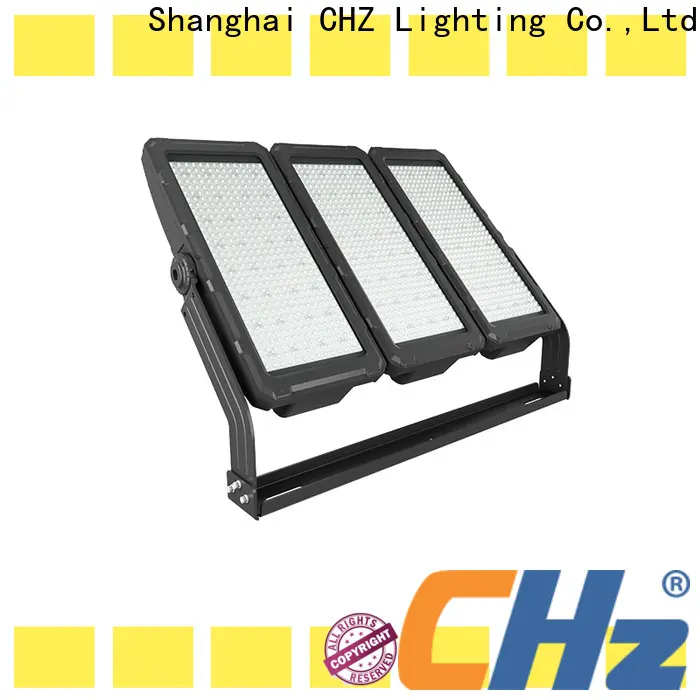

Manufactory Wholesale light led flood lens ledflood With Cheap Prices
Parameter:
Model
FL28-280W1
FL28-560W2
FL28-840W3
Power
280W
560W
840W
LED Type
SMD3030
SMD3030
SMD3030
Number of beads
1x448
2x448
3x448
Serialization
1*56P8S
2*56P8S
3*56P8S
Light source voltage
48V
48V
48V
Operating Voltage
AC100-277V 50/60HZ
control method
Conventional/0-10V/DALI
Power factor
PF>0.95
Light effect
>140Lm/W
Color temperature
4000K-5700K
Color rendering
RA>70
Beam angle
15°/30° 45°/60°, for options
Protection level
IP66
Lamp body size
320x687x222mm
578x687x222mm
836x687x222mm
Lamp body material
Die-cast aluminum lamp body + PC lens
Lamp body color
Regular black, can be customized according to customer requirements (quantity requirements)
Protection level
IP66/IK10
Surge prevention level
10KV
Operating temperature
—40℃~+50℃
Working humidity
10%~90%
Service life
50,000hr
Related Products
Certifications
OUR CERTIFICATES
PROJECTS
Company Information
ABOUT US
Shanghai CHZ Lighting Technology Co., Ltd. was established in 2010, is one of leading manufacturer of LED lighting products in China with a total area of 10,000m2 plus.We have got a few patents and lots of quality certifications, such as CE, ROHS, ERP, TUV, CB, SAA, UL, CUL, DLC and etc. Meanwhile, our company passed ISO9000 and ISO 14000 system certification. After years of development, "CHZ" has gradually become one well-known brand in this field.
CHZ is worthy of your trust and CHZ is your best choice!
Packaging & Shipping
PACKAGE:
1. Standard packages of CHZ brand; 2. According to customer's requirement.
DELIVERY TIME:
5-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ
FAQ
1. What is a general business process?
Answer: Send inquiry to CHZ→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service
2. What is the warranty?
A: According to different types of lamps, a 5-7 year warranty is provided. If the product fails during the warranty period due to quality problems, we will immediately send out new replacements and freight charges in case of emergency. Or, we prefer to send a replacement for the next order.
3. What is the payment period?
A: For sample orders, we can accept wire transfer 100% in advance, PayPal, Western Union. For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment. For large orders, letters of credit
3. What is the payment term? Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.
4. Can I add my logo on the product label? Answer : Yes, but order quantity is requested depending on different lights.
5. I don't know which sty how many LED Street Light should I use, can you advise? Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
6. Do you have any MOQ limit for led light order? Answer: Low MOQ, 1pc for sample checking is available .
7. How do you ship the goods and how long does it take to arrive? Answer: We usually ship samples and small quantities of products that customers need urgently with DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. High-volume product transportation is available for airline or maritime transportation. The shipping time is updated according to the actual situation of the shipping company.
8. We don't know how to install,can you help? Answer : We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.
9. How to deal with the faulty? Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send out new replacement to you immediately for you to solve the problem.
10. It is not convenient for us to visit your company in China, but what if you want to know the strength of your company in more detail? Answer : You can visit us by visiting our foreign branches. We have teams and warehouses in Spain, USA, Nigeria and Nicaragua can provide you with comprehensive pre-sales and after-sales protection. You can also pay attention to it through our official website and the FACEBOOK homepage .
The product gives out a sense of natural beauty, artistic appeal, and the indefinite freshness, which seems to bring an overall upgrade of the room. With light source well encapsulated, it has high safety performance.
The product is very breathable to wear, without absorbing the smelly sweat. It makes people stay cool for a whole day. With light source well encapsulated, it has high safety performance.
Company Features 1. Shanghai CHZ Lighting Co.,Ltd is proficient in offering the most exquisite for more and more customers. Shanghai CHZ Lighting Co.,Ltd owns advanced production equipment and sophisticated testing equipment. 2. With a view to guaranteeing quality of , Shanghai CHZ Lighting Co.,Ltd introduced sophisticated facilities. 3. Shanghai CHZ Lighting Co.,Ltd's new top production base will continue to produce a variety of . With the emerging of economic, we put forward the concept of to be more concentrated on this field. Get an offer!
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
