CE ROHS Energy Saving High Quality Chips 90 Watt Led Street Light 1

CE ROHS Energy Saving High Quality Chips 90 Watt Led Street Light 2

CE ROHS Energy Saving High Quality Chips 90 Watt Led Street Light 3

CE ROHS Energy Saving High Quality Chips 90 Watt Led Street Light 4

CE ROHS Energy Saving High Quality Chips 90 Watt Led Street Light 5

CE ROHS Energy Saving High Quality Chips 90 Watt Led Street Light 6

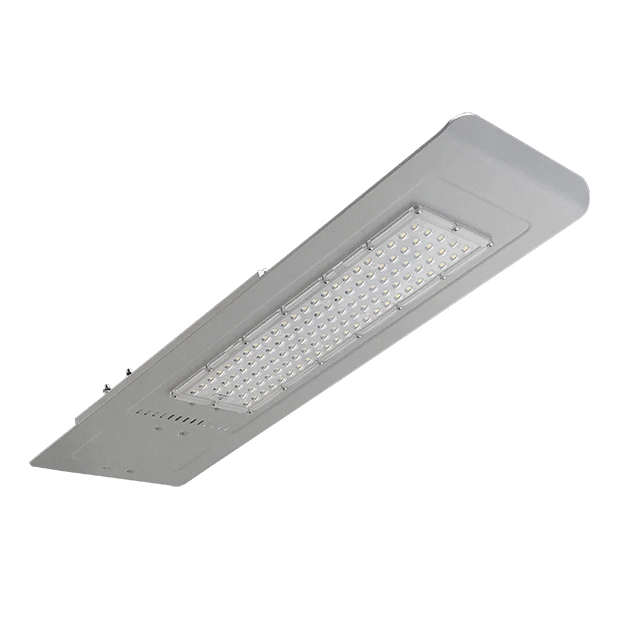

CE ROHS Energy Saving High Quality Chips 90 Watt Led Street Light

Inquiry

Write a Review

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: 100-277V

Lamp Luminous Flux(lm):: 11250

CRI (Ra>):: 80

Working Temperature(℃):: -30 - 50

IP Rating:: IP66

Certification:: ce, EMC, LVD, RoHS

Warranty(Year):: 5

Place of Origin:: Shanghai, China

Brand Name:: CHZ

Model Number:: CHZ-ST20-90W

Beam Angle(°):: 145°x75°

Application:: ROAD

Color:: Light Grey, Black, White, Dark Grey

Power Supply:: AC

Product name:: road lighting led street light

LED Light Source:: SMD3030

Lamp Luminous Efficiency(lm/w):: 125

Color Temperature(CCT):: 3000-6500K

Chips Volt:: 36v

Power factor:: >0.95

Work Humidity:: 10%~90%

Light material:: Die-cast AL body+PC lens

Product size:: 632X215X90 (mm)

Protection degree:: IP66&IK10

Working Lifetime(Hour):: 50000

Supply Ability

Supply Ability:: 30000 Piece/Pieces per Month

Product Description

CE ROHS Energy Saving High Quality Chips 90 Watt Led Street Light

Specifications of led street light

Model	ST20-20W	ST20-35W	ST20-50W
Power	20W	35W	50W
LED Qty	24 PCS	36 PCS	54 PCS
Connection	4P6S	6P6S	9P6S
Chips Volt	36V	36V	36V
Chips Current	500mA	875mA	1250mA
Beam angle	145°x 75°	145°x 75°	145°x 75°
Product size	366X135X84 (mm)	366X135X89 (mm)	431X160X89 (mm)
Model	ST20-60W	ST20-90W	ST20-120W
Power	60W	90W	120W
LED Qty	77 PCS	112 PCS	144 PCS
Connection	11P7S	16P7S	24P6S
Chips Volt	42V	42V	36V
Chips Current	1360mA	2100mA	3300mA
Beam angle	140°x 75°	140°x 75°	145°x 75°
Product size	431X160X89 (mm)	632X215X90 (mm)	632X215X90 (mm)
LED type	SMD 3030
Input Volt	100-277V
Power factor	>0.95
Lumen	>125 LM/W
Color Temp	3000-6500K
Color Render	>70
Light material	Die-cast AL body+PC lens
Protection degree	IP66&IK10
Work Temp	-40℃~+50℃
Work Humidity	10%~90%
Lifetime/Warranty	50,000hrs / 5 years

More details of led street light

Product features of led street ligh

Our Services

Company Information

Our team

Projects

FAQ

FAQ:

1. What are your market reach throughout the regiion?

Our markets around the world in every corner, we have many years of experience in foreign trade.Our clients are from different countries. And we have branch office in Spain and Nigeria.

2. Whar are your main products?

Our main products are led outdoor lightings including led flood light( stadium lighting), led high bay light, led street lighting and led garden light.

3. Are you a manufactuer or a trading company?

We are a professional LED manufacturer.

4. Do you have the ability to do independent research and development?

Our engineering department have the research and development capabilities. We also collect regular customer feedback to research new product.

5. How to contact you?

Welcome to vist our websit (www.chz-lighting.com) to get more information.

The product not only makes the kitchen look compact and neat, but also it matches the interior layout of the house. With high quality LED chips, it can operate for more than 50,000 hours without failure. Dressing this product can have a huge impact on how people feel. It helps people feel more comfortable and confident throughout the day. With high quality LED chips, it can operate for more than 50,000 hours without failure.
