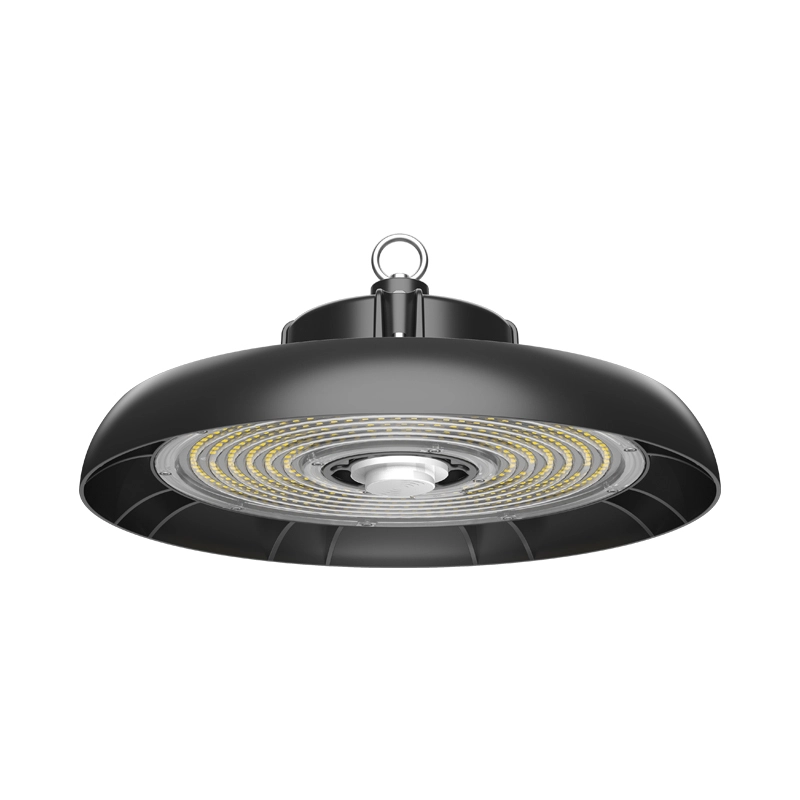

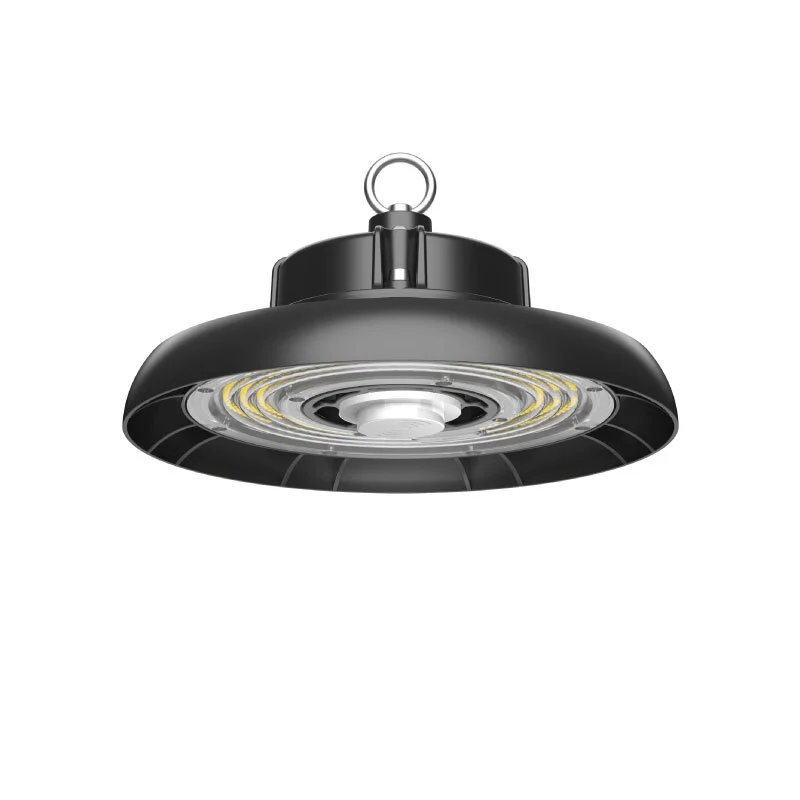

Factory Price Industry lighting ufo high bay light led motion sensor CHZ-HB28
5.0
MODEL:
CHZ-HB28
LED CHIPS:
OSRAM 2835
COLOR TEMPERATURE:
3000K / 4000K / 5000K / 5700K / 6500K
DRIVERS:
SOSEN
BEAM ANGLE:
60°/90°/110°
REGULATION:
0-10V+12V / 1-10V / DALI
VOLTAGE:
100-277V AC 50/60 Hz
POWER FACTOR:
>0.95
MATERIALS:
AL housing / PC lens
LIFETIME / WARRANTY:
50,000 hours / 5 years
WORKING ENVIRONMENT:
- 40ºC ~ + 50ºC / 10%-90%RH
PROTECTION(IP - IK - KV):
IP65 - IK08 - 4KV
LUMEN:
170LM/W
CRI:
80
CERTIFICATIONS:
CB CE TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
Factory Price Industry lighting ufo high bay light led motion sensor CHZ-HB28
A. Adopt fin structure design, with lower cost and better heat ventilation.
B. Whole lamp electrophoresis process, the product has excellent anti-corrosion and anti-rust functions.
C. Product protection grade can be up to IP65, can be used in high humidity places.
D. Multi beam angle, 60°/90°/120° optional, high light transmittance, flame retardant, wearresistant and UV-resistant, to meet different light distribution needs.
E. Using high-quality SMD2835 LED chips and non-isolated driver, with high efficiency and long life.
F. Regular, 1-10V dimmable for option, more energy-saving than other traditional highbay.
| Model No. | Power(W) | Chips | Chips Qty | Chips S/P | Beam Angle | CCT(K) | Lumen(LM/W） | ||
| HB28-100W | 100 | SMD2835 | 210 | 15S14P | 60°/90°/120° | 3000-6500 | >170 | ||
| HB28-150W | 150 | SMD2835 | 300 | 15S20P | 60°/90°/120° | 3000-6500 | >150 | ||
| HB28-200W | 200 | SMD2835 | 420 | 15S28P | 60°/90°/120° | 3000-6500 | >150 | ||
| HB28-250W | 250 | SMD2835 | 480 | 15S32P | 60°/90°/120° | 3000-6500 | >150 | ||
SMD2835 High quality LED wick
Low power consumption and high brightness
SMD LED Chips
Hiah Brightness
100-277V
Efficient Cooling
Service life
Metal ring
ADC#12 Aluminium
Lumileds chips and PC lens
Radar microwave induction
Excellent heat diss pation
Application Scenario
Widely used in factories, warehouses, logistics centers, retail stores, theaters, restaurants and a large indoor gymnasium and other places, will be 30% more energy-saving than traditional LED highbay light.
