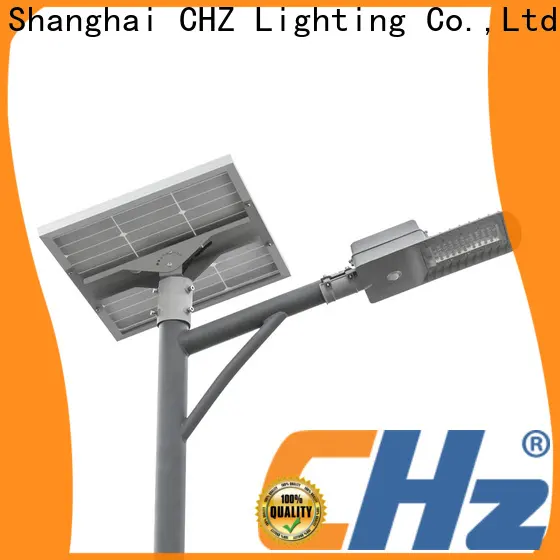

CHZ solar powered led street lights factory for yard
MODEL:
CHZ-DST3
LED CHIPS:
LUMILEDS 3030
COLOR TEMPERATURE:
4000K / 5000K / 5700K / 6500K
BEAM ANGLE:
TYPE V-S
REGULATION:
PIR / Timer
VOLTAGE:
12V/24V
ELECTRICAL CATEGORY:
CLASS I
CLASS II
MATERIALS:
AL housing / PC lens
PROTECTION(IP / IK):
IP66 - IK09
INSTALLATION:
Ø 60 mm
Ø 40 mm
Ø 42 mm
Recessed
Ceiling
Suspended
WORKING ENVIRONMENT:
30,000 hours / 3 years
STORAGE TEMP:
0ºC ~ + 25ºC / 10%-90%RH
SOLAR PANEL:
Monocrystalline
ON HOURS:
2H- 100% 4H- 100%/50% 6H- 100%/30% (default) 12 hours and 6-7 cloudy/rainy days
LUMEN:
150LM/W
DISCHARGE TEMP:
- 20ºC ~ + 65ºC
CONTROL METHOD:
ON/OFF switch + Timer regulation + PIR microwave sensor
CERTIFICATIONS:
CE ROHS
BATTERY:
Lithium Li-NCM
solar powered led street lights
description
The product is of high quality and has passed international certification. It is able to work under humidity ranging from 10% to 90
solar powered led street lights
SPECIFICATIONS
| MODEL | CHZ-DST3 |
|---|---|
| LED CHIPS | LUMILEDS 3030 |
| COLOR TEMPERATURE | 4000K / 5000K / 5700K / 6500K |
| LUMEN | 150LM/W |
| REGULATION | PIR / Timer |
| VOLTAGE | 12V/24V |
| BATTERY | Lithium Li-NCM |
| SOLAR PANEL | Monocrystalline |
| ON HOURS | 2H- 100% 4H- 100%/50% 6H- 100%/30% (default) 12 hours and 6-7 cloudy/rainy days |
| BEAM ANGLE | TYPE V-S |
| MATERIALS | AL housing / PC lens |
| CONTROL METHOD | ON/OFF switch + Timer regulation + PIR microwave sensor |
| PROTECTION(IP / IK) | IP66 - IK09 |
| DISCHARGE TEMP | - 20ºC ~ + 65ºC |
| STORAGE TEMP | 0ºC ~ + 25ºC / 10%-90%RH |
| WORKING ENVIRONMENT | 30,000 hours / 3 years |
| CERTIFICATIONS | CE ROHS |
It is able to run under extra-low voltage. Constructed with top Philips 5050 or 3030 chips, it features high luminous efficiency. The unique design of low current reduces the line loss.
