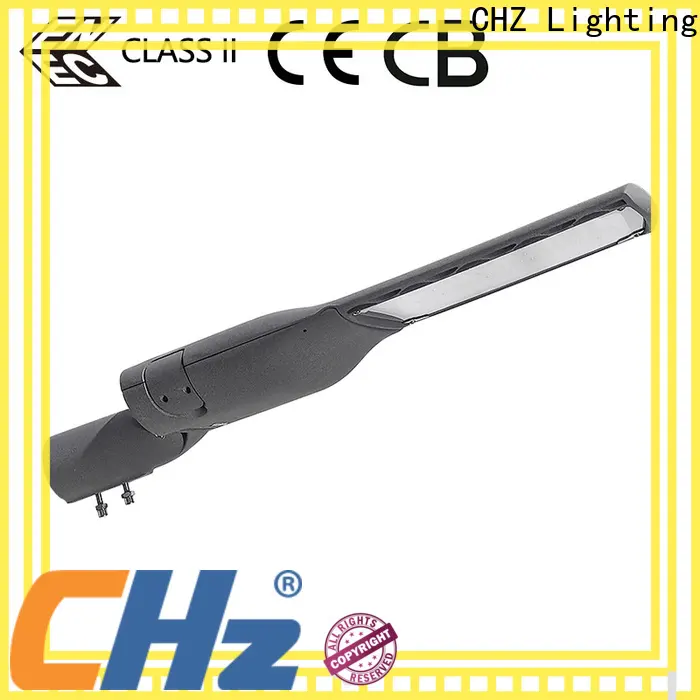

CHZ Lighting wholesale street light supplier for outdoor
MODEL:
CHZ-ST33
LED CHIPS:
LUMILEDS 5050
COLOR TEMPERATURE:
3000K / 4000K / 5000K / 5700K / 6500K
DRIVERS:
SOSEN / INVENTRONICS
BEAM ANGLE:
TYPE II TYPE III TYPE V
REGULATION:
0-10V / Timer / DALI
VOLTAGE:
100 - 277V / 200~240V
POWER FACTOR:
> 0.95
ELECTRICAL CATEGORY:
Class I / Class II
MATERIALS:
AL housing / AL heatsink / PC lens
PROTECTION(IP / IK):
IP66 - IK09
INSTALLATION:
Ø 60 mm / Ø 50 mm
LIFETIME / WARRANTY:
50,000 hours / 5 years
WORKING ENVIRONMENT:
- 35ºC ~ + 50ºC / 10%-90%RH
CERTIFICATIONS:
CB ENEC CE ROHS ISO9001 ISO14001 ISO50001 ISO45001
wholesale street light
description
The product has an outstanding performance to face different environment. Designed with dust and water resistance, it reduces the pressure of cleaning and maintenance
wholesale street light
SPECIFICATIONS
| MODEL | CHZ-ST33 |
|---|---|
| LED CHIPS | LUMILEDS 5050 |
| COLOR TEMPERATURE | 3000K / 4000K / 5000K / 5700K / 6500K |
| DRIVERS | SOSEN / INVENTRONICS |
| REGULATION | 0-10V / Timer / DALI |
| VOLTAGE | 100 - 277V / 200~240V |
| POWER FACTOR | > 0.95 |
| ELECTRICAL CATEGORY | Class I / Class II |
| BEAM ANGLE | TYPE II TYPE III TYPE V |
| MATERIALS | AL housing / AL heatsink / PC lens |
| PROTECTION(IP / IK) | IP66 - IK09 |
| INSTALLATION | Ø 60 mm / Ø 50 mm |
| LIFETIME / WARRANTY | 50,000 hours / 5 years |
| WORKING ENVIRONMENT | - 35ºC ~ + 50ºC / 10%-90%RH |
| CERTIFICATIONS | CB ENEC CE ROHS ISO9001 ISO14001 ISO50001 ISO45001 |
It has a high IP protection level, which allows it to endure the harsh environment. Having little electricity consumption, it is energy-keeping. It is able to work under humidity ranging from 10% to 90.
