CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013

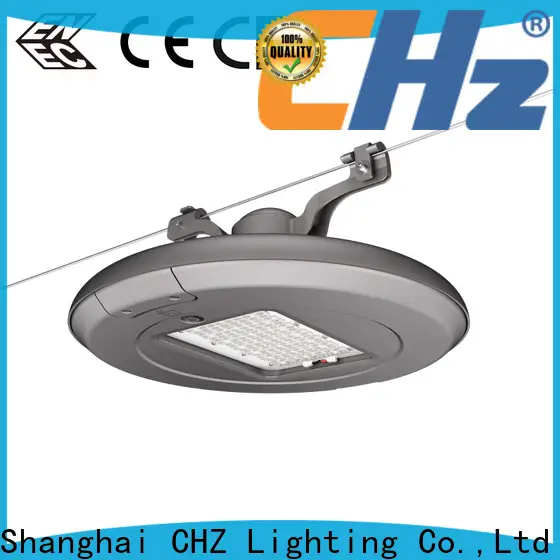

CHZ Lighting led street light module manufacturer for yard
MODEL:
CHZ-ST26D
LED CHIPS:
LUMILEDS 5050 / LUMILEDS 3030
COLOR TEMPERATURE:
3000K / 4000K / 5000K / 5700K
DRIVERS:
INVENTRONICS
BEAM ANGLE:
1M 2M 3M 5S 1M(S)
REGULATION:
1-10V / Timer / DALI
VOLTAGE:
100 - 277V / 200~240V
POWER FACTOR:
> 0.95
ELECTRICAL CATEGORY:
Class II
MATERIALS:
AL housing / AL heatsink / PC lens
PROTECTION(IP / IK):
IP66 - IK08
INSTALLATION:
Ø 60 mm
LIFETIME / WARRANTY:
60,000 hours / 5 years
WORKING ENVIRONMENT:
- 40ºC ~ + 50ºC / 10%-90%RH
CERTIFICATIONS:
CB ENEC CE TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001
led street light module
description
As the 'Quality First' is the principle of CHZ Lighting, the quality of this product has been fully guaranteed.Designed with dust and water resistance, it reduces the pressure of cleaning and maintenance
led street light module
SPECIFICATIONS
| MODEL | CHZ-ST26D |
|---|---|
| LED CHIPS | LUMILEDS 5050 / LUMILEDS 3030 |
| COLOR TEMPERATURE | 3000K / 4000K / 5000K / 5700K |
| DRIVERS | INVENTRONICS |
| REGULATION | 1-10V / Timer / DALI |
| VOLTAGE | 100 - 277V / 200~240V |
| POWER FACTOR | > 0.95 |
| ELECTRICAL CATEGORY | Class II |
| BEAM ANGLE | 1M 2M 3M 5S 1M(S) |
| MATERIALS | AL housing / AL heatsink / PC lens |
| PROTECTION(IP / IK) | IP66 - IK08 |
| INSTALLATION | Ø 60 mm |
| LIFETIME / WARRANTY | 60,000 hours / 5 years |
| WORKING ENVIRONMENT | - 40ºC ~ + 50ºC / 10%-90%RH |
| CERTIFICATIONS | CB ENEC CE TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001 |
The unique design of low current reduces the line loss. The mounting type of this product is highly flexible. The one-piece cold forging ensures its precise shape.
