CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013

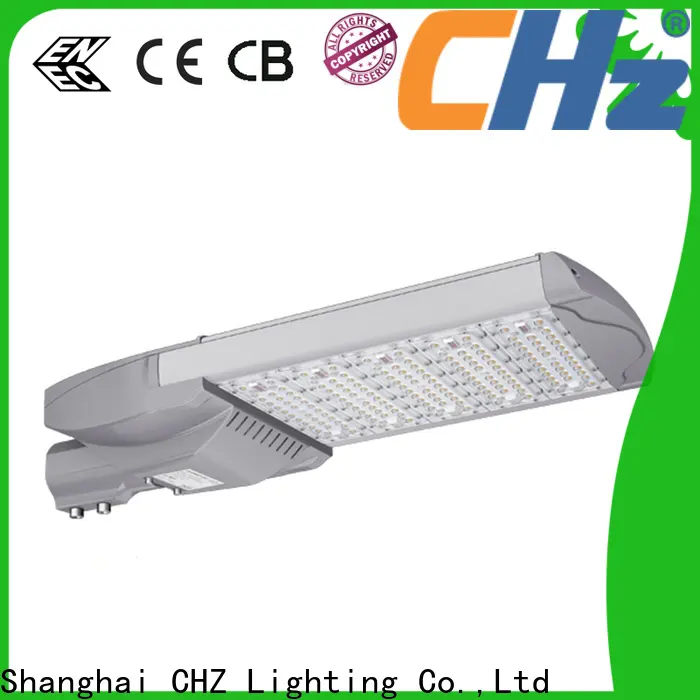

CHZ Lighting Customized led street light china distributor for yard
MODEL:
CHZ-ST12
LED CHIPS:
LUMILEDS 5050 / LUMILEDS 3030
COLOR TEMPERATURE:
3000K / 4000K / 5000K / 5700K / 6500K
DRIVERS:
SOSEN / INVENTRONICS
BEAM ANGLE:
TYPE I TYPE II TYPE III TYPE V
REGULATION:
0-10V /1-10V / Timer / DALI
VOLTAGE:
100 - 277V / 200~240V
POWER FACTOR:
> 0.95
ELECTRICAL CATEGORY:
Class I / Class II
MATERIALS:
AL housing / AL heatsink / PC lens
PROTECTION(IP / IK):
IP66 - IK10
INSTALLATION:
Ø 60 mm / Ø 50 mm
LIFETIME / WARRANTY:
90,000 hours / 5 years
WORKING ENVIRONMENT:
- 40ºC ~ + 50ºC / 10%-90%RH
CERTIFICATIONS:
UL CB ENEC TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001
led street light china
description
The product is not prone to electromagnetic influence. It has passed the electromagnetic compatibility(EMC) test and is able to withstand extreme weather conditions such as thunderstrike. It does not contain lead that poses health risks
led street light china
SPECIFICATIONS
| MODEL | CHZ-ST12 |
|---|---|
| LED CHIPS | LUMILEDS 5050 / LUMILEDS 3030 |
| COLOR TEMPERATURE | 3000K / 4000K / 5000K / 5700K / 6500K |
| DRIVERS | SOSEN / INVENTRONICS |
| REGULATION | 0-10V /1-10V / Timer / DALI |
| VOLTAGE | 100 - 277V / 200~240V |
| POWER FACTOR | > 0.95 |
| ELECTRICAL CATEGORY | Class I / Class II |
| BEAM ANGLE | TYPE I TYPE II TYPE III TYPE V |
| MATERIALS | AL housing / AL heatsink / PC lens |
| PROTECTION(IP / IK) | IP66 - IK10 |
| INSTALLATION | Ø 60 mm / Ø 50 mm |
| LIFETIME / WARRANTY | 90,000 hours / 5 years |
| WORKING ENVIRONMENT | - 40ºC ~ + 50ºC / 10%-90%RH |
| CERTIFICATIONS | UL CB ENEC TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001 |
The overall die-casting metal body guarantees its robustness. With a compact integrated design, it is easy for transportation. The product is quick in turning on and off.
