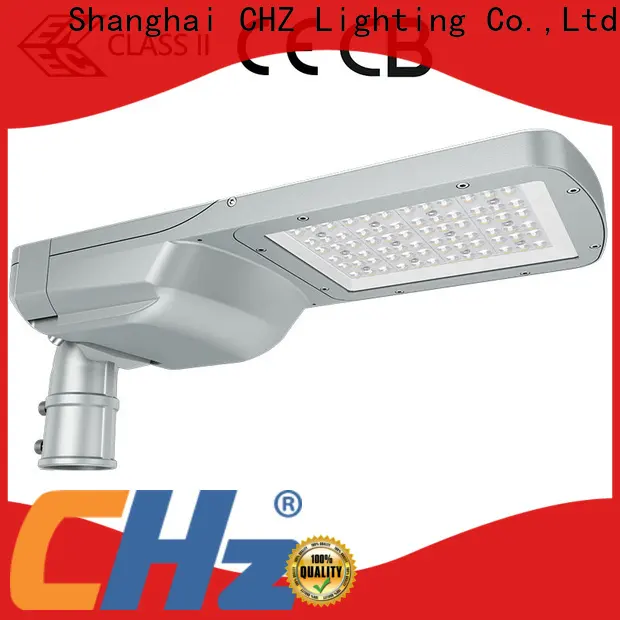

CHZ Lighting CHZ Lighting street light fixture maker for street
MODEL:
CHZ-ST41
LED CHIPS:
LUMILEDS 5050
COLOR TEMPERATURE:
3000K / 4000K / 5000K / 5700K / 6500K
DRIVERS:
SOSEN / INVENTRONICS
BEAM ANGLE:
TYPE II TYPE III
REGULATION:
0-10V /1-10V / Timer / DALI
VOLTAGE:
100 - 277V / 200~240V
POWER FACTOR:
> 0.95
ELECTRICAL CATEGORY:
Class I / Class II
MATERIALS:
AL housing / AL heatsink / PC lens
PROTECTION(IP / IK):
IP66 - IK10
INSTALLATION:
Ø 60 mm
LIFETIME / WARRANTY:
60,000 hours / 5 years
WORKING ENVIRONMENT:
- 40ºC ~ + 50ºC / 10%-90%RH
CERTIFICATIONS:
CB ENEC TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001
street light fixture
description
Our street light fixture can be washed and cleaned in short time. It has a high IP protection level, which allows it to endure the harsh environment
street light fixture
SPECIFICATIONS
| MODEL | CHZ-ST41 |
|---|---|
| LED CHIPS | LUMILEDS 5050 |
| COLOR TEMPERATURE | 3000K / 4000K / 5000K / 5700K / 6500K |
| DRIVERS | SOSEN / INVENTRONICS |
| REGULATION | 0-10V /1-10V / Timer / DALI |
| VOLTAGE | 100 - 277V / 200~240V |
| POWER FACTOR | > 0.95 |
| ELECTRICAL CATEGORY | Class I / Class II |
| BEAM ANGLE | TYPE II TYPE III |
| MATERIALS | AL housing / AL heatsink / PC lens |
| PROTECTION(IP / IK) | IP66 - IK10 |
| INSTALLATION | Ø 60 mm |
| LIFETIME / WARRANTY | 60,000 hours / 5 years |
| WORKING ENVIRONMENT | - 40ºC ~ + 50ºC / 10%-90%RH |
| CERTIFICATIONS | CB ENEC TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001 |
The unique design of low current reduces the line loss. The one-piece cold forging ensures its precise shape. Adopting an intelligent constant current driver, it has no flicker problem.
