CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013

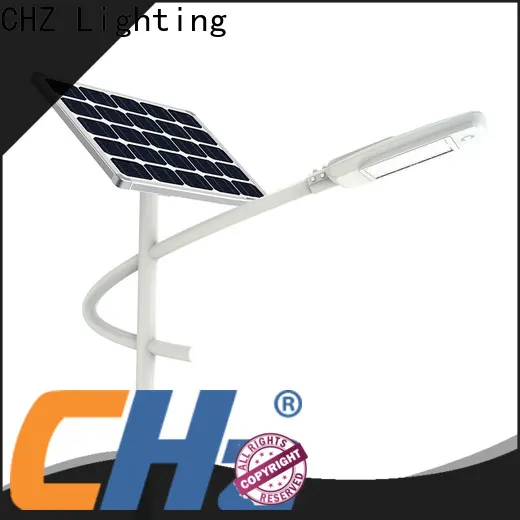

CHZ Lighting china solar led street light manufacturer for road
MODEL:
CHZ-DST2
LED CHIPS:
LUMILEDS 5050
COLOR TEMPERATURE:
4000K / 5000K / 5700K / 6500K
BEAM ANGLE:
TYPE V-S
REGULATION:
PIR / Timer
VOLTAGE:
12V/24V
ELECTRICAL CATEGORY:
CLASS I
CLASS II
MATERIALS:
AL housing / PC lens
PROTECTION(IP / IK):
IP66 - IK09
INSTALLATION:
Ø 60 mm
Ø 40 mm
Ø 42 mm
Recessed
Ceiling
Suspended
WORKING ENVIRONMENT:
30,000 hours / 3 years
STORAGE TEMP:
- 10ºC ~ + 55ºC / 10%-90%RH
SOLAR PANEL:
Monocrystalline
ON HOURS:
2H- 100% 4H- 100%/50% 6H- 100%/30% (default) 12 hours and 6-7 cloudy/rainy days
LUMEN:
150LM/W
DISCHARGE TEMP:
- 20ºC ~ + 65ºC
CONTROL METHOD:
ON/OFF switch + Timer regulation + PIR microwave sensor
CERTIFICATIONS:
CE ROHS
BATTERY:
Lithium Li-NCM
china solar led street light
description
Once opened, the product is able to provide full brightness without glare and glare. This product can emit the maximum light output in just a few seconds. Designed with dust and water resistance, it reduces the pressure of cleaning and maintenance
china solar led street light
SPECIFICATIONS
| MODEL | CHZ-DST2 |
|---|---|
| LED CHIPS | LUMILEDS 5050 |
| COLOR TEMPERATURE | 4000K / 5000K / 5700K / 6500K |
| LUMEN | 150LM/W |
| REGULATION | PIR / Timer |
| VOLTAGE | 12V/24V |
| BATTERY | Lithium Li-NCM |
| SOLAR PANEL | Monocrystalline |
| ON HOURS | 2H- 100% 4H- 100%/50% 6H- 100%/30% (default) 12 hours and 6-7 cloudy/rainy days |
| BEAM ANGLE | TYPE V-S |
| MATERIALS | AL housing / PC lens |
| CONTROL METHOD | ON/OFF switch + Timer regulation + PIR microwave sensor |
| PROTECTION(IP / IK) | IP66 - IK09 |
| DISCHARGE TEMP | - 20ºC ~ + 65ºC |
| STORAGE TEMP | - 10ºC ~ + 55ºC / 10%-90%RH |
| WORKING ENVIRONMENT | 30,000 hours / 3 years |
| CERTIFICATIONS | CE ROHS |
The overall die-casting metal body guarantees its robustness. The unique design of low current reduces the line loss. Constructed with top Philips 5050 or 3030 chips, it features high luminous efficiency.
