500w 1000w high power high mast led floodlight with ies file supplier flood lighting

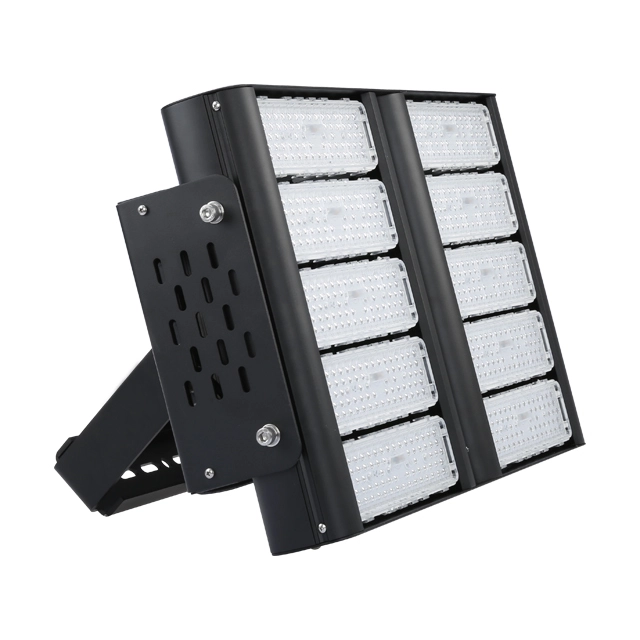

500w 1000w high power high mast LED floodlight
Product details
Model | FL20-600W | FL20-720W | FL20-840W | FL20-960W |
Power | 600W | 720W | 840W | 960W |
LED type | SMD 3030 | SMD 3030 | SMD 3030 | SMD 3030 |
LED`s | 630PCS | 756PCS | 882PCS | 1008PCS |
Connection | 10*(7P9S) | 12*(7P9S) | 14*(7P9S) | 16*(7P9S) |
Chips Volt | 54V | 54V | 54V | 54V |
Product size(mm) | 680x410x395 | 680x490x395 | 680x570x395 | 680x650x395 |
Model | FL20-600W | FL20-720W | FL20-840W | FL20-960W |
Power | 600W | 720W | 840W | 960W |
LED type | SMD 5050 | SMD 5050 | SMD 5050 | SMD 5050 |
LED`s | 280PCS | 336PCS | 392PCS | 448PCS |
Connection | 10*(14P2S) | 12*(14P2S) | 14*(14P2S) | 16*(14P2S) |
Chips Volt | 48V | 48V | 48V | 48V |
Product size(mm) | 680x410x395 | 680x490x395 | 680x570x395 | 680x650x395 |
Input Volt | 100-277V | |||
Control | Convencional/0-10V/DALI | |||
PF | >0.95 | |||
Lumen(Lm/W) | >150 | |||
CCT | 4000K/5000K/5700K | |||
RA | >70 | |||
Beam angle | 25°/40°/60°/90°, for options | |||
IP | IP66 | |||
Light material | Die-casting lamp body + PC lens | |||
Light color | Conventional black,gray (other colors have a number of requirements) | |||
Protection level | IP66/IK08/10KV | |||
Work temp | —40℃~+50℃ | |||
Work humidity | 10%~90% | |||
Life/Warranty | 50,000hrs / 5years | |||
Features:
1. Honeycomb briquette burning effect and the whole structure cooling technology;
2. All metal structure, high mechanical strength;
3. Double-coupling IP68 protection, highest waterproof level;
4. Ergonomic light distribution to achieve uniform illuminating effect;
5. Free modular serialization and full power range solution;
6. Intelligent constant current driving technology to guarantee the safety of LED use.
7. LUMILEDS 3030 and 5050 LED chips optional, according to the request of clients.
Applications:
The high mast LED flood light is widely used in Sports Facilities, such as football field and golf course; Main Thoroughfare lighting such as airport and crossroad; or Wall & Billboard lighting and etc.
1. What are your market reach throughout the regiion?
Our markets around the world in every corner, we have many years of experience in foreign trade.Our clients are from different countries. And we have branch office in Spain and Nigeria.
2. Whar are your main products?
Our main products are led outdoor lightings including led flood light( stadium lighting), led high bay light, led street lighting and led garden light.
3. Are you a manufactuer or a trading company?
We are a professional LED manufacturer.
4. Do you have the ability to do independent research and development?
Our engineering department have the research and development capabilities. We also collect regular customer feedback to research new product.
5. How to contact you?
Welcome to vist our websit (www.chz-lighting.com) to get more information.
