    Overview
    Quick Details
    Input Voltage(V):
    200-277V
    CRI (Ra>):
    75
    Beam Angle(°):
    90°
    Working Lifetime(Hour):
    35000
    Lamp Body Material:
    AL+PC
    IP Rating:
    IP66
    Certification:
    ce, RoHS
    Place of Origin:
    Shanghai, China
    Brand Name:
    CHZ
    Model Number:
    CHZ-FL18-200W
    Application:
    Garden
    Light Source:
    LED
    Lamp Luminous Flux(lm):
    20000
    Working Temperature(℃):
    -20℃~+50℃
    Warranty(Year):
    5-Year
    LED Chip:
    SMD 2835
    Lumen:
    100lm/w
    Power Factor:
    PF>0.9
    CCT:
    4000K
    RA:
    >70
    Lighting Protection:
    4KV
    Working Humidity:
    10%~90%
    Warranty:
    35000hrs/3years
    Supply Ability
    Supply Ability:
    30000 Piece/Pieces per Month
    Product Description

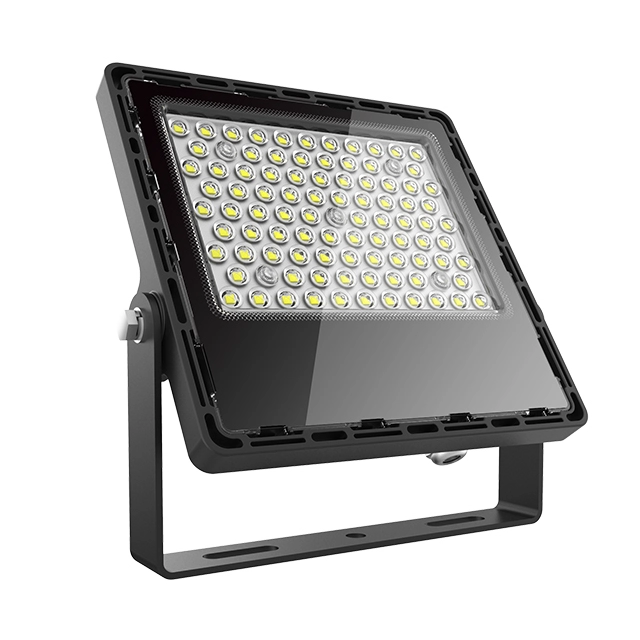

    3000~6500K outdoor flood light 200 watt led floodlight lamp ODM

    Features:

    1. Die-cast aluminum lamp body, shell engineering plastic, economical and exquisite;

    2. Adjustable mounting bracket for easy adjustment of angle and good light output; protection level up to IP65;

    3. With high-quality SMD 3030 chip, high luminous efficiency, long life; at the same time, the configuration of high-quality intelligent constant current drive, work stability, high conversion efficiency, long life;

    4. With tempered glass mask, high light transmittance, low glare and strong comfort;

    5. The conventional spray color of the shell is black, and other colors have a certain amount of requirements.

    Applications:

    Suitable for outdoor lighting such as building flooding, billboards, gardens, hotels, parking lots, etc.

    3000~6500K outdoor flood light 200 watt led floodlight lamp ODM 73000~6500K outdoor flood light 200 watt led floodlight lamp ODM 9

    Parameters:

    Model

    FL18-30W

    FL18-50W

    FL18-70W

    Power

    30W

    50W

    70W

    LED`s

    90 PCS

    180 PCS

    234 PCS

    Connection

    10S5P

    16S5P

    20S5P

    Model

    FL18-100W

    FL18-150W

    FL18-200W

    Power

    100W

    150W

    200W

    LED type

    SMD 2835

    SMD 2835

    SMD 2835

    LED`s

    312 PCS

    252 PCS

    312 PCS

    Connection

    30S5P

    30S5P

    40S6P

    Drive type

    AC linear

    AC linear

    AC linear

    Input Volt

    200-240V

    200-240V

    200-240V

    PF

    >0.90

    >0.90

    >0.90

    Lumen(Lm/W)

    >85

    >85

    >85

    CCT

    3000-6500K

    3000-6500K

    3000-6500K

    RA

    >70

    >70

    >70

    Beam angle

    90°

    90°

    90°

    Protection level

    IP65

    IP65

    IP65

    Anti-surge rating

    Withstand voltage 4KV, Surge protection 2.5KV

    Withstand voltage 1.5KV, Surge protection 1.0KV

    Light body material

    Polymer Composites + Tempered Glass + Respirator

    Polymer Composite + Aluminum Radiator + Tempered Glass + Respirator

    Work temp

    —20~+50

    Work humidity

    10%~90%

    Life/Warranty

    30,000hrs / 2Years







    3000~6500K outdoor flood light 200 watt led floodlight lamp ODM 11
